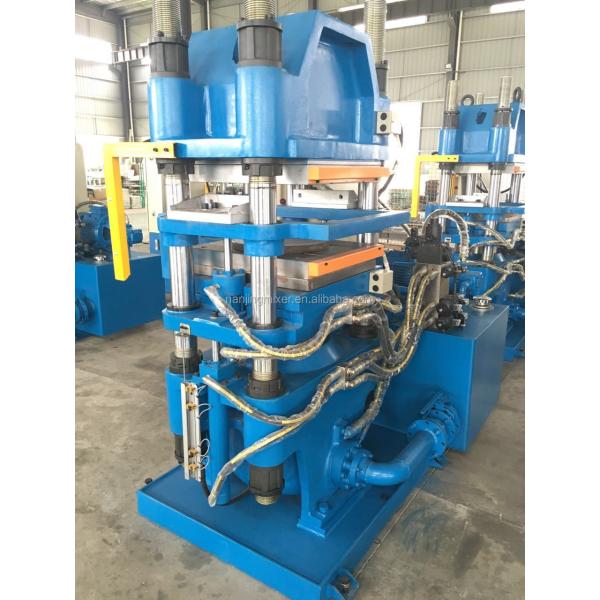

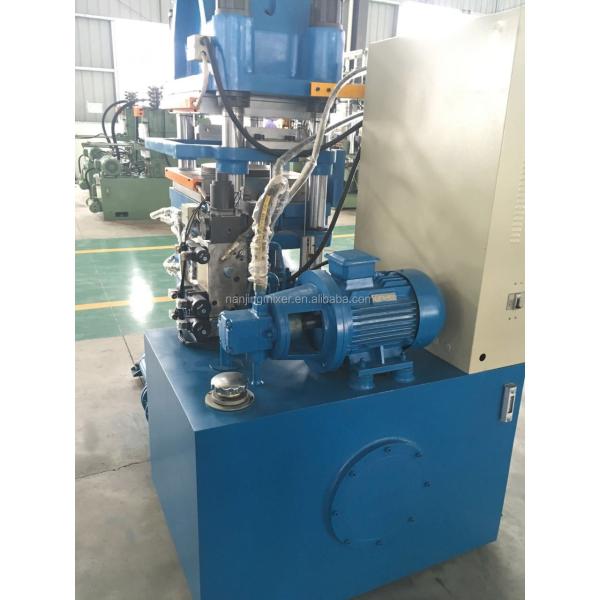

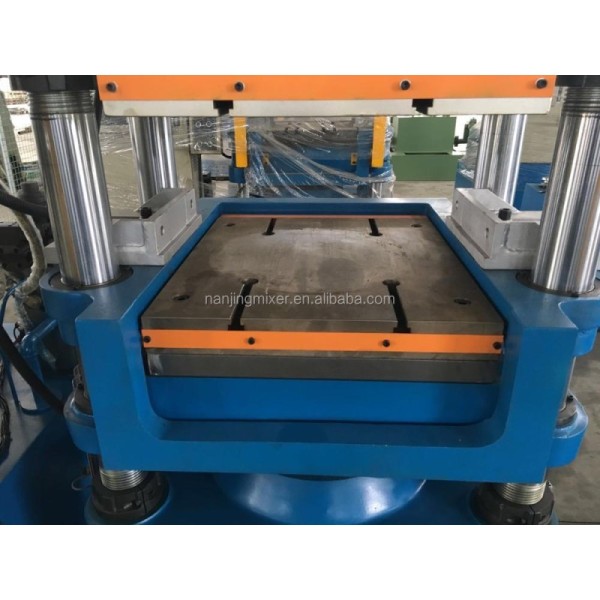

1810x1350x1700mm Rubber Hot Press/Vulcanizing Machine with Long Service Life
1810x1350x1700mm Rubber Hot Press/Vulcanizing Machine with Long Service Life
1810x1350x1700mm Rubber Hot Press/Vulcanizing Machine with Long Service Life
1810x1350x1700mm Rubber Hot Press/Vulcanizing Machine with Long Service Life
1810x1350x1700mm Rubber Hot Press/Vulcanizing Machine with Long Service Life
1810x1350x1700mm Rubber Hot Press/Vulcanizing Machine with Long Service Life
1810x1350x1700mm Rubber Hot Press/Vulcanizing Machine with Long Service Life
1810x1350x1700mm Rubber Hot Press/Vulcanizing Machine with Long Service Life
1810x1350x1700mm Rubber Hot Press/Vulcanizing Machine with Long Service Life
1810x1350x1700mm Rubber Hot Press/Vulcanizing Machine with Long Service Life
1810x1350x1700mm Rubber Hot Press/Vulcanizing Machine with Long Service Life
1810x1350x1700mm Rubber Hot Press/Vulcanizing Machine with Long Service Life
Specifications
Place of Origin :
Jiangsu, China
Condition :
New
Brand Name :
Geekung
Machine Type :
Plate Vulcanizing Press
Voltage :
220V/380V
Dimension(L*W*H) :
1810x1350x1700mm
Weight :
3000kg
Warranty :
1 Year
Key Selling Points :
Long Service Life
Showroom Location :
Turkey
Applicable Industries :
Manufacturing Plant
After Warranty Service :
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location :
Turkey
After-sales Service Provided :
Engineers available to service machinery overseas
Certification :
ISO/CE
Packaging Details :
wooden case package/or plastic film package.
Port :
Shanghai
Supply Ability :
20 Set/Sets per Month
Price :
$10,000.00 - $99,999.00/sets
Payment Terms :
T/T
Description
Product Description

Rubber Hot Press Machine/Rubber Vulcanizing Hot Press/ Hot Press Machine:

Workflow:

Initial state→Put rubber in mold→Manually push mold in→Start program→Fast mold closing→Slow lock,pressing→Exhaust→Curing→Mold open→Manually move mold out→Take out finished product.

Specification

Model

JC-XLB63T

JC-XLB100T

JC-XLB150T

JC-XLB200T

JC-XLB250T

JC-XLB300T

JC-XLB350T

JC-XLB500T

Clamping force

63T

100T

150T

200T

250T

300T

350T

500T

Max.sytem pressure

21Mpa

21Mpa

21Mpa

21Mpa

21Mpa

21Mpa

21Mpa

21Mpa

Clamping stroke(mm)

250

250

300

300

300

300

300

300

Rapid clamping speed

(mm/s)

≥60

≥60

≥60

≥60

≥60

≥50

≥50

≥50

Platen size(mm)

380x380

400x400

400x400

450x450

500x500

500x500

510x540

600x550

650x550

600x600

700x700

700x700

800x800

1000x850

Max.daylight opening(mm)

350

350

350

350

350

350

350

350

Working layers

Single/Multi

Single/Multi

Single/Multi

Single/Multi

Single layer

Single layer

Single layer

Single layer

Max.temperature(℃)

250

250

250

250

250

250

250

250

Motor power(KW)

3

4

5.5

7.5

7.5

7.5

11

13

Heating power(KW)

9.6

9.6

12

18.6

18.6

20.6

20.6

27.8

Dimension(LxWxH:mm)

1670x1250x1600

1750x1350x1700

1810x1350x1700

1920x1500x2100

1950x1500x2100

2150x1700x2300

2300x1900x2500

2700x2300x3100

Oil tank capacity (Liters)

200

250

280

320

330

350

380

400

Finished Products
