Customizable Platen Hot Vulcanizing/Curing Press for Rubber Mat/Solid Tire/PVC Flooring
Customizable Platen Hot Vulcanizing/Curing Press for Rubber Mat/Solid Tire/PVC Flooring
Customizable Platen Hot Vulcanizing/Curing Press for Rubber Mat/Solid Tire/PVC Flooring
Customizable Platen Hot Vulcanizing/Curing Press for Rubber Mat/Solid Tire/PVC Flooring
Customizable Platen Hot Vulcanizing/Curing Press for Rubber Mat/Solid Tire/PVC Flooring
Customizable Platen Hot Vulcanizing/Curing Press for Rubber Mat/Solid Tire/PVC Flooring
Customizable Platen Hot Vulcanizing/Curing Press for Rubber Mat/Solid Tire/PVC Flooring
Customizable Platen Hot Vulcanizing/Curing Press for Rubber Mat/Solid Tire/PVC Flooring
Customizable Platen Hot Vulcanizing/Curing Press for Rubber Mat/Solid Tire/PVC Flooring
Customizable Platen Hot Vulcanizing/Curing Press for Rubber Mat/Solid Tire/PVC Flooring
Customizable Platen Hot Vulcanizing/Curing Press for Rubber Mat/Solid Tire/PVC Flooring
Customizable Platen Hot Vulcanizing/Curing Press for Rubber Mat/Solid Tire/PVC Flooring
Specifications
Place of Origin :
China
Condition :
New
Brand Name :
Geekung
Machine Type :
Plate Vulcanizing Press
Voltage :
110V-480V 50/60HZ
Dimension(L*W*H) :
according to the model
Weight :
according to the model
Warranty :
1 Year
Key Selling Points :
Long Service Life
Showroom Location :
Turkey
Applicable Industries :
Manufacturing Plant
After Warranty Service :
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location :
Turkey
After-sales Service Provided :
Engineers available to service machinery overseas
Color :
Custom Made
Certification :
ISO CE
Packaging Details :
plastic film package
Port :
Shanghai
Supply Ability :
200 Set/Sets per Year
Price :
$10,000.00 - $99,999.00/sets
Payment Terms :
T/T
Description
Product Description

Platen Hot Press/Plate Vulcanizing Press/Plate Press/Curing Press for Rubber mat/solid tire/rubber flooring/pvc flooring:
(rubber plate press, rubber hot plate press,rubber curing press,hot press for pvc flooring,rubber plate vulcanizing press,hot press for rubber,plate vulcanizing press for rubber,press machine for kinds of rubber products,like rubber mat,rubber plate,rubber flooring,pvc flooring,solid tire,etc.)
Specification

Model
Clamping force
(Ton)
Working Pressure
(Mpa)
Plate size
(mm)
Plates distance
(mm)
Max. Stroke
(mm)
Heating Power
(KW)
Motor Power
(KW)
XLBD-25T
25
16
300x300
100
250
4.8
3
XLBD-50T
50
16
400x400
150
300
9
3
XLBD-63T
63
16
500x500
150
300
12
4
XLBD-100T
100
16
800x800
200
300
14
3
XLBD-160T
160
16
750x850
125
600
16
3
XLBD-200T
200
18
800x800
250
300
20
7.5
XLBD-315T
315
18
1000x1000
250
300
24
11
XLBD-500T
500
18
1100x1100
250
350
30
15
XLBD-630T
630
18
1200x2000
300
350
35
15
XLBD-1000T
1000
18
1200x1200
300
350
35
18.5
XLBD-1250T
1250
18
1500x1200
300
400
40
18.5

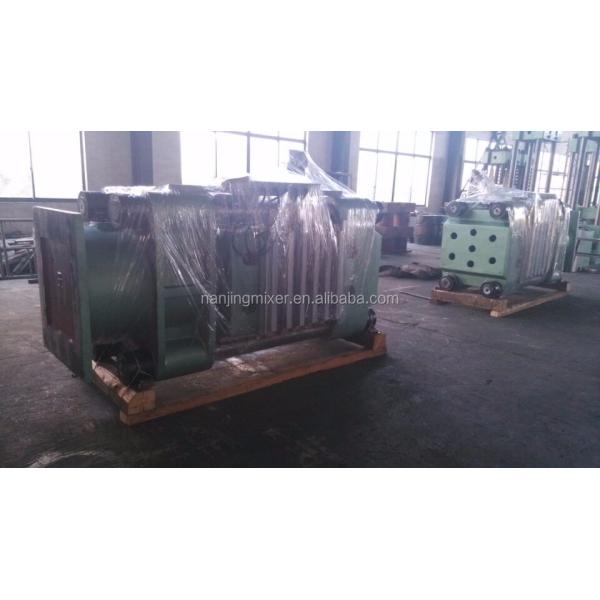

Packaging & Shipping

Customizable Platen Hot Vulcanizing/Curing Press for Rubber Mat/Solid Tire/PVC FlooringCustomizable Platen Hot Vulcanizing/Curing Press for Rubber Mat/Solid Tire/PVC FlooringCustomizable Platen Hot Vulcanizing/Curing Press for Rubber Mat/Solid Tire/PVC FlooringCustomizable Platen Hot Vulcanizing/Curing Press for Rubber Mat/Solid Tire/PVC FlooringCustomizable Platen Hot Vulcanizing/Curing Press for Rubber Mat/Solid Tire/PVC FlooringCustomizable Platen Hot Vulcanizing/Curing Press for Rubber Mat/Solid Tire/PVC Flooring
