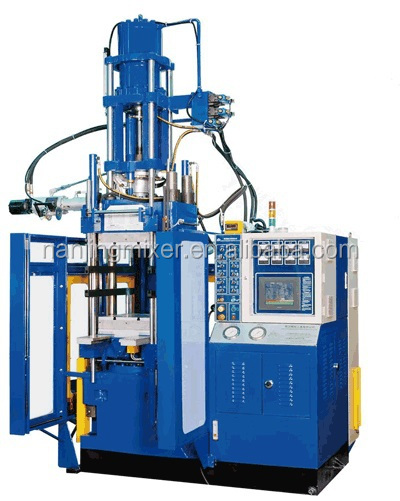

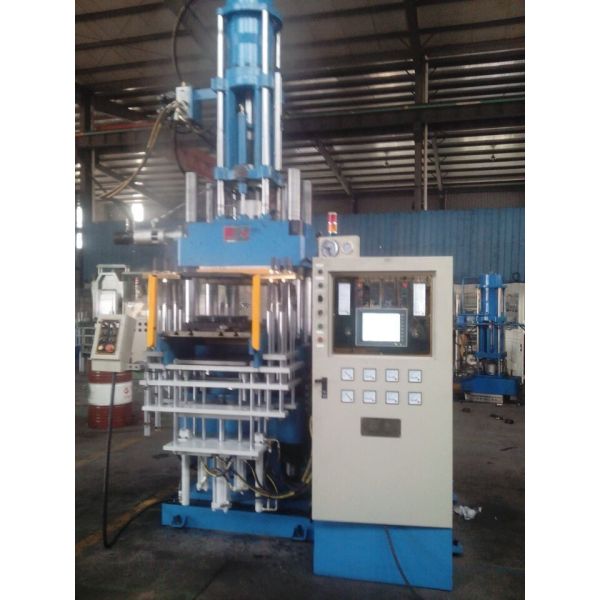

Rubber Injection Moulding Press/Rubber Injection Moulding Machine/Rubber Injection Curing Machine
Rubber Injection Moulding Press/Rubber Injection Moulding Machine/Rubber Injection Curing Machine
Rubber Injection Moulding Press/Rubber Injection Moulding Machine/Rubber Injection Curing Machine
Rubber Injection Moulding Press/Rubber Injection Moulding Machine/Rubber Injection Curing Machine
Rubber Injection Moulding Press/Rubber Injection Moulding Machine/Rubber Injection Curing Machine
Rubber Injection Moulding Press/Rubber Injection Moulding Machine/Rubber Injection Curing Machine
Rubber Injection Moulding Press/Rubber Injection Moulding Machine/Rubber Injection Curing Machine
Rubber Injection Moulding Press/Rubber Injection Moulding Machine/Rubber Injection Curing Machine
Specifications
Press :
Rubber Injection Molding Machine
Packaging Details :
plastic film packed in container
Port :
Shanghai
Supply Ability :
20 Set/Sets per Month
Price :
$10,000.00 - $99,999.00/sets
Brand Name :
Geekung
Payment Terms :
T/T
Description

Product Description

Rubber Injection Moulding Press/Rubber Injection Moulding Machine/Rubber Injection Curing Machine :

APPLICATIONS: Ideal for the production of natural &synthetic rubber,oil & heat resistant rubber, and reclaimed rubber.

  • Low bed structure
  • Equipped with standard PLC controller
  • Patented anti-spill device
  • Patented material feeding device
  • Custom specifications are available

Rubber Injection Moulding Press/Rubber Injection Moulding Machine/Rubber Injection Curing Machine

Specification

Model
JC-RH50-250CC
JC-RH65-250CC
JC-RH200-1000CC(A)
JC-RH200-1000CC(B)
JC-RH260-1500CC
JC-RH300(A)
JC-RH300(B)
Shot Voolume
C.C
300
300
(1000)~1500
(1000)~1500
(1500)~2000
(2000)~3000
(2000)~3000
Injection pressure
Kg/cm2
1700-1800
1700-1800
1700-1800
1700-1800
1700-1800
1700-1800
1700-1800
Lnjection Hydraulic
pressure
Kg/cm2
150
150
150-160
150-160
150-160
150-160
150-160
Screw Diameter
mm
32
32
45
45
45
50
50
Screw Speed
Rpm/min
0-120
0-120
0-120
0-120
0-120
0-120
0-120
Material Size
mm
10×30
10×30
12×50
12×50
12×50
15×60
15×60
Clamping Force
TON
60
60
200
200
260
300
300
Piston Stroke
mm
360
370
460
460
580
510
510
Plate Size
mm
350×380
290×320
480×500
550×620
520×580
650×730
550×650
Space Between
Tie Bar
mm
445
390
575
675
645
790
690
Piston Diameter
mm
180
200
356
356
406
430
430
Motor
kw
5.5
5.5
11
11
15
18.5
18.5
Heating Capacity
kw
7.2
7.2
13.6
13.6
16
19
18
Thermal Oil Pump
hp
1/2×1
1/2×1
1/2×2
1/2×2
1/2×2
1/2×2
1/2×2
System Pressure
Kg/cm2
210
210
210
210
210
210
210
Machine Dimensions
mm
2275×1705
×2900
2135×1240
×2870
3610×2000
×3730
2275×2095
×3715
2750×2130
×3780
2900×2355
×4400
3000×2345
×4470
Machine Weight
kg
2300
2200
5800
6500
6800
8500
7500
Model
JC-RH400
JC-RH500
JC-Rl400-2000CC
JC-Rl580-3000CC
JC-Rl700-5000CC
Shot Voolume
C.C
(3000)~5000
(3000)~7000
(2000)~3000
(3000)~5000
(5000)~10000
Injection pressure
Kg/cm2
1700-1800
1700-1800
1700-1800
1700-1800
1700-1800
Lnjection Hydraulic
pressure
Kg/cm2
150-160
150-160
150-160
150-160
150-160
Screw Diameter
mm
50
50
50
50
50
Screw Speed
Rpm/min
0-120
0-120
0-120
0-120
0-120
Material Size
mm
15×60
15×60
15×60
15×60
15×60
Clamping Force
TON
400
500
400
580
700
Piston Stroke
mm
510
580
650
650
700
Plate Size
mm
750×800
750×850
600×650
700×720
750×900
Space Between
Tie Bar
mm
930
915
680
805
910
Piston Diameter
mm
500
560
495
600
657
Motor
kw
18.5
22
18.5
22
37
Heating Capacity
kw
19.6
22
19.6
23.2
30.4
Thermal Oil Pump
hp
1/2×2
1/2×2
1/2×2
1/2×2
1/2×2
System pressure
Kg/cm2
210
210
210
210
210
Machine Dimensions
mm
3075×2575 ×4470
3120×2575×54
2885×2275×4350
3020×2422×4335
3200×2465×5100
Machine Weight
kg
8500
9500
7800
10500
14000
