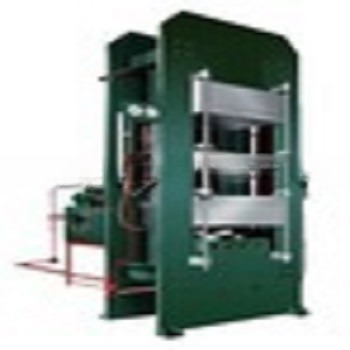

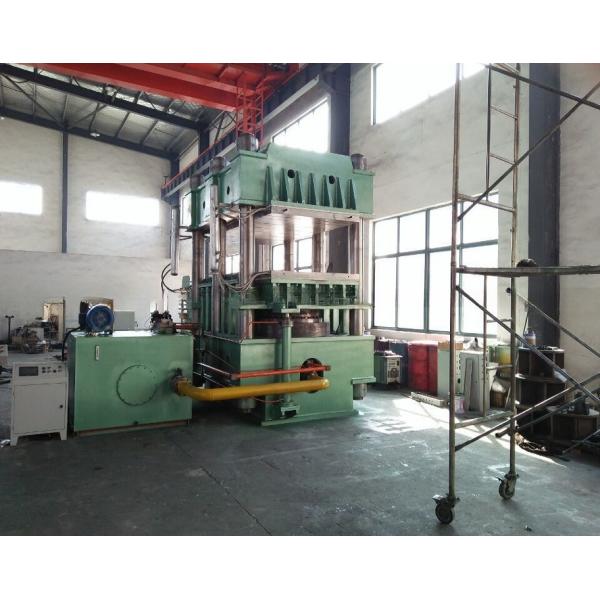

Tire curing press/tire press machine/forklift tire press
Tire curing press/tire press machine/forklift tire press
Tire curing press/tire press machine/forklift tire press
Tire curing press/tire press machine/forklift tire press
Tire curing press/tire press machine/forklift tire press
Tire curing press/tire press machine/forklift tire press
Specifications
Place of Origin :
Jiangsu, China
Condition :
New
Brand Name :
Geekung
Voltage :
220V/380V/415V/440V/480V
Dimension(L*W*H) :
3650x1800x3090
Weight :
11000 KG
Warranty :
1 year
After-sales Service Provided :
Engineers available to service machinery overseas
Power :
11KW
Certification :
CE,ISO
Packaging Details :
Vacuum plastic film packed
Port :
Shanghai
Supply Ability :
30 Set/Sets per Month
Price :
$10,000.00 - $99,999.00/sets
Payment Terms :
T/T
Description

Product Description

Tire curing press/tire press machine/forklift tire press

APPLICATIONS:
Ideal for the production of making rubber O-rings,keyboards,rubber medical products,etc.
REMARKABLE FEATURES:
· The vacuum suction hood provides highly efficient vacuum suction effect for the entire mold inside the working platen, suction speed of 700HG/2 sec. The unit offers simplified construction, easy to operate and maintain, with fast mold change.
· Integrated hydraulic circuit provide various pipe functions on the circuit boards, reducing piping to a minimum. The oil cooler ensures long service life of the circuit valve.
· The motion time, traverse and number of motions can be conveniently set on the control panel to meet product variations, ensuring production quality.
· Combines two molding units in one machine, which can be operated separately.
· While in vulcanization molding operations, the hydraulic pump motor can be set for running, or stopped for power saving.
· The electric system is controlled by the PLC controller, allowing for easy operation and accurate adjustment. An emergency switch provides added safety for the mold and the operator.

Specification

Model
YH-HV80T-2
YH-HV150T-2
YH-HL200T-2
YH-HV250T-2
YH-HV300T-2
Clamping Force
TON
80
150
200
250
300
Plate Size
mm
380×420
450×450
500×550
550×550
650×650
Piston Stroke
mm
380
345
380
380
380
Heating Capacity
kw
9
9
13.5
20.4
20.4
Pump Motor
kw
5.5
7.5
7.5
11
15
Piston Diameter
mm
230
356
495
406
430
Max Mold Size L×W×H
mm
340×380 ×180
410×410 ×120
510×510 ×200
510×510 ×200
610×610 ×175
Machine Dimensions
mm
2850×1625 ×2610
3150×1640×2550
3650×1800×3090
3650×1800×3090
3830×2450×2990
Machine Weight
kg
6500
7200
9300
11000
9000
Model
YH-HV80T
YH-HV150T
YM-HL200T
YM-HV250T
YM-HV300T
YM-HV400T
YM-HV600T
Clamping Force
TON
80
150
200
250
300
400
600
Plate Size
mm
380×420
450×450
500×550
500×550
650×650
800×800
1000×1000
Piston Stroke
mm
380
345
380
380
380
450
520
Heating Capacity
kw
9
9
13.5
20.4
20.4
24
42
Pump Motor
kw
4
5.5
7.5
11
15
15
18.5
Piston Diameter
mm
230
305
356
406
430
500
610
Max Mold Size L×W×H
mm
340×380
×180
410×410
×200
510×510
×200
510×510
×200
610×610
×175
760×760
×200
960×960
×305
Machine Dimensions
mm
1720×1625
×2610
1875×1640
×2550
2120×1800
×3090
2120×1800
×3090
2210×2200
×2990
2440×2190
×3430
3100×2450
×4060
Machine Weight
kg
3000
3200
5200
6200
6800
12500
14000
