Sigma Mixer/kneader for BMC with Z-shaped blades
Sigma Mixer/kneader for BMC with Z-shaped blades
Sigma Mixer/kneader for BMC with Z-shaped blades
Sigma Mixer/kneader for BMC with Z-shaped blades
Sigma Mixer/kneader for BMC with Z-shaped blades
Sigma Mixer/kneader for BMC with Z-shaped blades
Sigma Mixer/kneader for BMC with Z-shaped blades
Sigma Mixer/kneader for BMC with Z-shaped blades
Sigma Mixer/kneader for BMC with Z-shaped blades
Sigma Mixer/kneader for BMC with Z-shaped blades
Sigma Mixer/kneader for BMC with Z-shaped blades
Sigma Mixer/kneader for BMC with Z-shaped blades
Specifications
Place of Origin :
Jiangsu, China
Condition :
New
Mixing Capacity(L) :
600 L
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Warranty of core components :
5 years
Core Components :
PLC, Engine, Bearing, Motor, Gear
Power (kW) :
45 kW
Compressed Air Pressure(MPa) :
0.8 MPa
Brand Name :
Mixer
Model Number :
LGNH1000
Voltage :
380V 220V
Warranty :
1 Year
Key Selling Points :
Energy saving
Weight (KG) :
12000 KG
Showroom Location :
None
Applicable Industries :
Manufacturing Plant
Kneader :
double blade type sigma kneader
Mixer :
Z blade type sigma mixer
Power(W) :
18.5-75KW
After-sales Service Provided :
Video technical support
After Warranty Service :
Video technical support
Certification :
CE ISO EAC
Marketing Type :
New Product 2020
Packaging Details :
Plastic film packed in container or wooden case
Port :
Shanghai
Supply Ability :
10 Set/Sets per Month
Price :
$10,000.00 - $99,999.00/sets
Description

Product Description

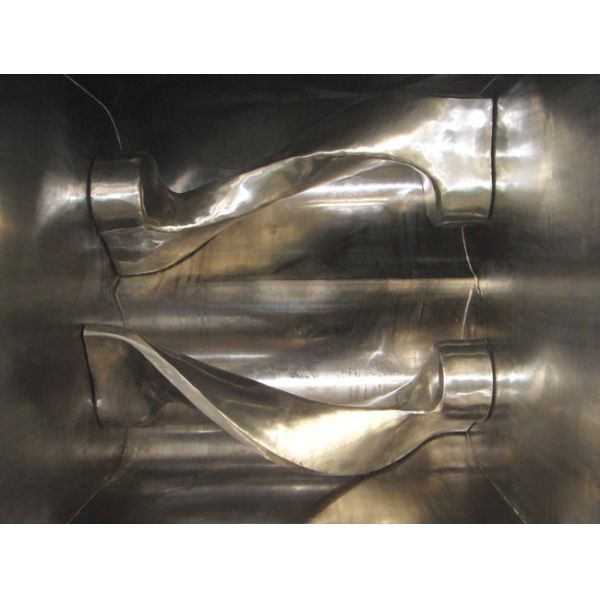

Sigma Mixer/kneader for BMC with Z-shaped blades:

This kind of Sigma Mixer (Sigma Kneader) with Z-shaped blades are specially developed for BMC material mixing,achieving perfect BMC mixing effect compared with normal sigma blade kneader.

Specification

Standard Sigma Kneader/Mixer:

Model

Total Volume(L)

Working Volume(L)

Motor Power (KW)

Discharge way

Heating mode

NH - 50

50

30

2.2 ~ 4

Hydraulic tilt

Steam/hot water

NH - 100

100

60

3 ~ 5.5

Hydraulic tilt

Steam/hot water

NH - 200

200

120

5.5 ~ 7.5

Hydraulic tilt

Steam/hot water

NH - 300

300

180

7.5 ~ 11

Hydraulic tilt/bottom drop

Steam/hot water

NH - 500

500

300

11 ~ 18.5

Hydraulic tilt/bottom drop

Steam/hot water

NH - 1000

1000

600

18.5 ~ 30

Hydraulic tilt/bottom drop

Steam/hot water

NH - 1500

1500

900

22~37

Hydraulic tilt/bottom drop

Steam/hot water

NH - 2000

2000

1200

37~55

Hydraulic tilt/bottom drop

Steam/hot water

NH - 3000

3000

1800

55~90

Hydraulic tilt/bottom drop

Steam/hot water

NH - 4000

4000

2400

75~110

Hydraulic tilt/bottom drop

Steam/hot water

NH - 5000

5000

3000

90~132

Hydraulic tilt/bottom drop

Steam/hot water

NH - 6000

6000

3600

132~160

Hydraulic tilt/bottom drop

Steam/hot water

Vacuum Sigma Kneader Mixer:

Model

Total Volume(L)

Working Volume(L)

Motor Power (KW)

Discharge way

Heating mode

NHZ - 50

50

30

4 ~ 5.5

Hydraulic tilt

Electric/steam

NHZ - 100

100

60

5.5 ~ 7.5

Hydraulic tilt

Electric/steam

NHZ - 200

200

120

7.5 ~ 11

Hydraulic tilt

Electric/steam

NHZ - 300

300

180

11 ~ 15

Hydraulic tilt/bottom drop

Electric/steam

NHZ - 500

500

300

15 ~ 30

Hydraulic tilt/bottom drop

Electric/steam

NHZ - 1000

1000

600

37 ~ 55

Hydraulic tilt/bottom drop

Electric/steam

NHZ - 1500

1500

900

55

Hydraulic tilt/bottom drop

Electric/steam

NHZ - 2000

2000

1200

75 ~ 90

Hydraulic tilt/bottom drop

Electric/steam

NHZ - 3000

3000

1800

90 ~ 110

Hydraulic tilt/bottom drop

Electric/steam

NHZ - 4000

4000

2400

132 ~ 160

Hydraulic tilt/bottom drop

Electric/steam

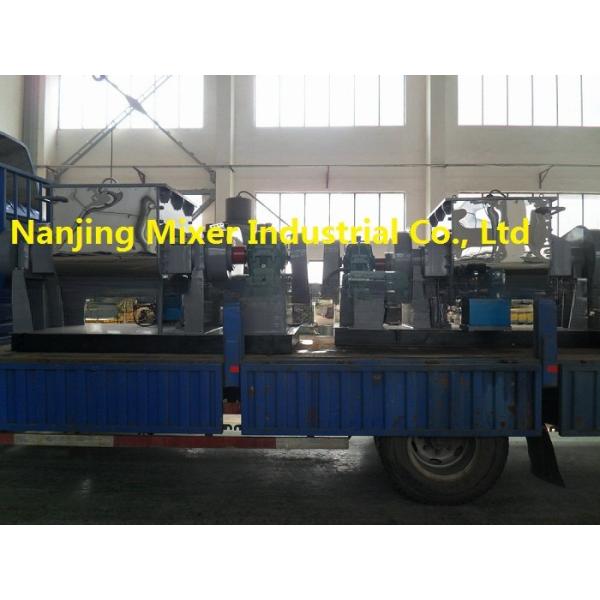

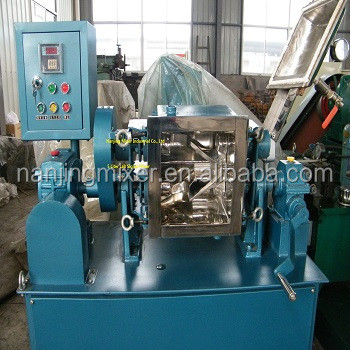

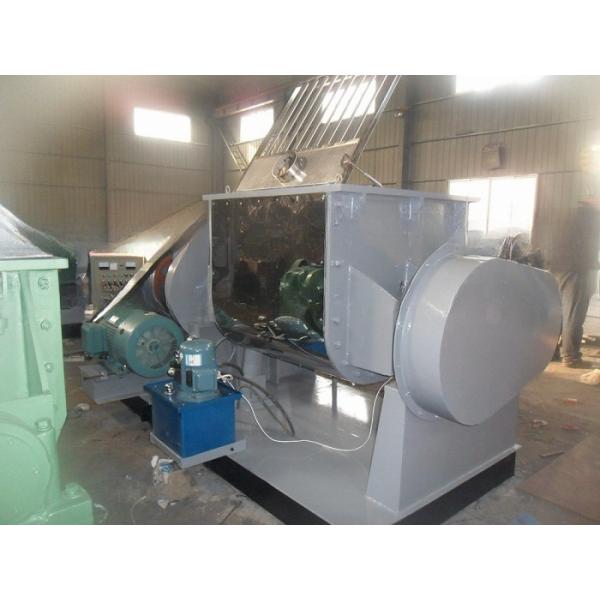

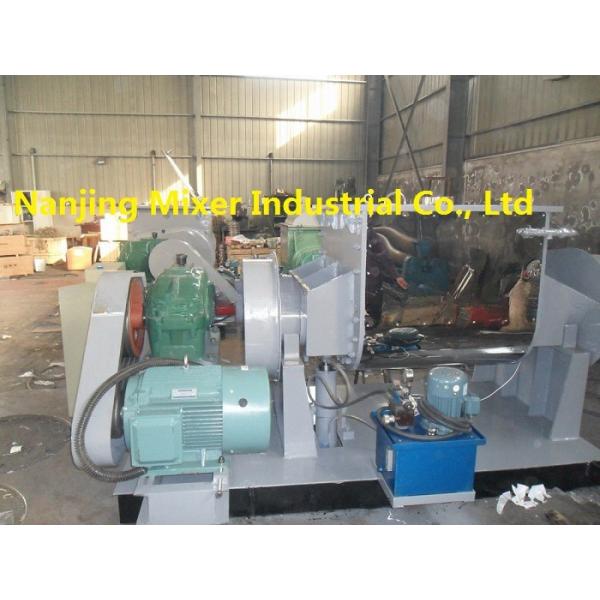

Finished Products

Sigma Mixer/kneader for BMC with Z-shaped bladesSigma Mixer/kneader for BMC with Z-shaped blades

Sigma Mixer/kneader for BMC with Z-shaped bladesSigma Mixer/kneader for BMC with Z-shaped bladesSigma Mixer/kneader for BMC with Z-shaped bladesSigma Mixer/kneader for BMC with Z-shaped blades
