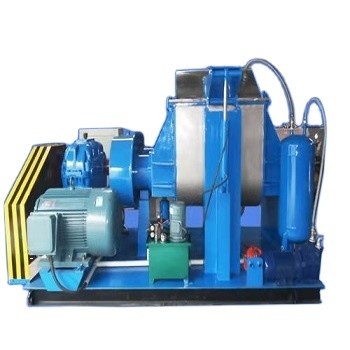

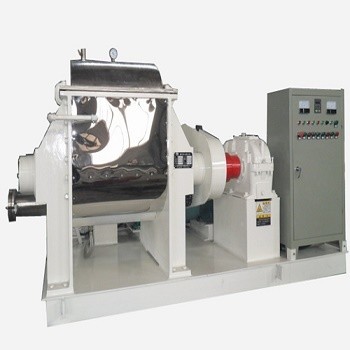

Video Technical Support Double Sigma Mixer Kneader for Epoxy Resin Caulking Filler

Specifications

Place of Origin :

Jiangsu, China

Condition :

NEW

Mixing Capacity(L) :

600 L

Video outgoing-inspection :

Provided

Machinery Test Report :

Provided

Warranty of core components :

5 years

Core Components :

PLC, Engine, Motor

Power (kW) :

90 kW

Compressed Air Pressure(MPa) :

0.8 MPa

Brand Name :

Mixer

Model Number :

NH1000

Voltage :

380V 220V

Warranty :

1 Year

Key Selling Points :

Sustainable

Weight (KG) :

12000 KG

Showroom Location :

None

Applicable Industries :

Manufacturing Plant

Kneader :

double blade type sigma kneader

Mixer :

Z blade type sigma mixer

After-sales Service Provided :

Online support

After Warranty Service :

Video technical support

Packaging Details :

Plastic film packed in container or wooden case

Port :

Shanghai

Supply Ability :

10 Set/Sets per Month

Price :

$5,000.00/sets >=1 sets

Description

Product Description

This type discharge Sigma Kneader is mainly used in the field of powder-state material,like starch, and liquid-state material,like glue,etc.

Specification

Standard Sigma Kneader/Mixer:

Model	Total Volume(L)	Working Volume(L)	Motor Power (KW)	Discharge way	Heating mode
NH - 50	50	30	2.2 ~ 4	Hydraulic tilt	Steam/hot water
NH - 100	100	60	3 ~ 5.5	Hydraulic tilt	Steam/hot water
NH - 200	200	120	5.5 ~ 7.5	Hydraulic tilt	Steam/hot water
NH - 300	300	180	7.5 ~ 11	Hydraulic tilt/bottom drop	Steam/hot water
NH - 500	500	300	11 ~ 18.5	Hydraulic tilt/bottom drop	Steam/hot water
NH - 1000	1000	600	18.5 ~ 30	Hydraulic tilt/bottom drop	Steam/hot water
NH - 1500	1500	900	22~37	Hydraulic tilt/bottom drop	Steam/hot water
NH - 2000	2000	1200	37~55	Hydraulic tilt/bottom drop	Steam/hot water
NH - 3000	3000	1800	55~90	Hydraulic tilt/bottom drop	Steam/hot water
NH - 4000	4000	2400	75~110	Hydraulic tilt/bottom drop	Steam/hot water
NH - 5000	5000	3000	90~132	Hydraulic tilt/bottom drop	Steam/hot water
NH - 6000	6000	3600	132~160	Hydraulic tilt/bottom drop	Steam/hot water

Vacuum Sigma Kneader Mixer:

Model	Total Volume(L)	Working Volume(L)	Motor Power (KW)	Discharge way	Heating mode
NHZ - 50	50	30	4 ~ 5.5	Hydraulic tilt	Electric/steam
NHZ - 100	100	60	5.5 ~ 7.5	Hydraulic tilt	Electric/steam
NHZ - 200	200	120	7.5 ~ 11	Hydraulic tilt	Electric/steam
NHZ - 300	300	180	11 ~ 15	Hydraulic tilt/bottom drop	Electric/steam
NHZ - 500	500	300	15 ~ 30	Hydraulic tilt/bottom drop	Electric/steam
NHZ - 1000	1000	600	37 ~ 55	Hydraulic tilt/bottom drop	Electric/steam
NHZ - 1500	1500	900	55	Hydraulic tilt/bottom drop	Electric/steam
NHZ - 2000	2000	1200	75 ~ 90	Hydraulic tilt/bottom drop	Electric/steam
NHZ - 3000	3000	1800	90 ~ 110	Hydraulic tilt/bottom drop	Electric/steam
NHZ - 4000	4000	2400	132 ~ 160	Hydraulic tilt/bottom drop	Electric/steam
