Specifications
Place of Origin :
Jiangsu, China
Condition :
New
Mixing Capacity(L) :
300 L
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Warranty of core components :
5 years
Core Components :
PLC, Engine, Bearing, Motor, Gear
Power (kW) :
45 kW
Compressed Air Pressure(MPa) :
0.8 MPa
Brand Name :
Mixer
Model Number :
NH500
Voltage :
380v,220v
Warranty :
1 Year
Key Selling Points :
Energy saving
Weight (KG) :
6000 KG
Showroom Location :
None
Applicable Industries :
Manufacturing Plant
Kneader :
double blade type sigma kneader
Mixer :
Z blade type sigma mixer
Power(W) :
7.5kw-22kw
After-sales Service Provided :
Field installation, commissioning and training
After Warranty Service :
Video technical support
Price :
$5,000.00/sets >=1 sets
Description

Product Description

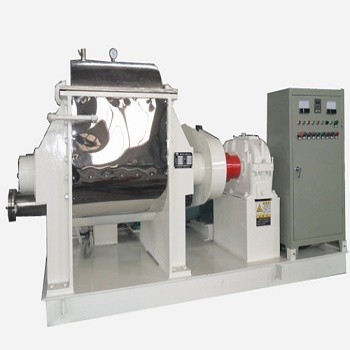

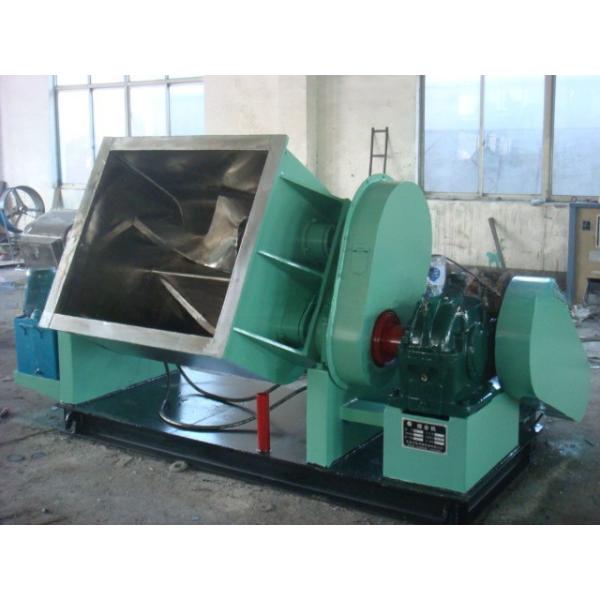

z type bmc kneader Mixer 300l

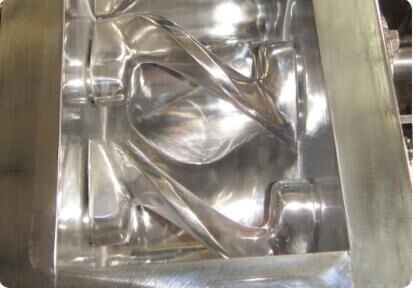

Sigma Kneader/Sigma Mixer is widely used for: plastic, rubber, silicone,chemical,CMC,BMC, soap,paint, printing ink, basoid, carbon, food stuff, medicine etc, Mixing room and agitating rotor are all made by stainless steel, The jacket of mixing room can be designed into electric heating, steam heating, steam heating or water cooling. Discharge ways include hydraulic tilt,, screw extruder and botton valve discharge etc.

Specification

Standard Sigma Kneader/Mixer:

Model

Total Volume(L)

Working Volume(L)

Motor Power (KW)

Discharge way

Heating mode

NH - 50

50

30

2.2 ~ 4

Hydraulic tilt

Steam/hot water

NH - 100

100

60

3 ~ 5.5

Hydraulic tilt

Steam/hot water

NH - 200

200

120

5.5 ~ 7.5

Hydraulic tilt

Steam/hot water

NH - 300

300

180

7.5 ~ 11

Hydraulic tilt/bottom drop

Steam/hot water

NH - 500

500

300

11 ~ 18.5

Hydraulic tilt/bottom drop

Steam/hot water

NH - 1000

1000

600

18.5 ~ 30

Hydraulic tilt/bottom drop

Steam/hot water

NH - 1500

1500

900

22~37

Hydraulic tilt/bottom drop

Steam/hot water

NH - 2000

2000

1200

37~55

Hydraulic tilt/bottom drop

Steam/hot water

NH - 3000

3000

1800

55~90

Hydraulic tilt/bottom drop

Steam/hot water

NH - 4000

4000

2400

75~110

Hydraulic tilt/bottom drop

Steam/hot water

NH - 5000

5000

3000

90~132

Hydraulic tilt/bottom drop

Steam/hot water

NH - 6000

6000

3600

132~160

Hydraulic tilt/bottom drop

Steam/hot water

Vacuum Sigma Kneader Mixer:

Model

Total Volume(L)

Working Volume(L)

Motor Power (KW)

Discharge way

Heating mode

NHZ - 50

50

30

4 ~ 5.5

Hydraulic tilt

Electric/steam

NHZ - 100

100

60

5.5 ~ 7.5

Hydraulic tilt

Electric/steam

NHZ - 200

200

120

7.5 ~ 11

Hydraulic tilt

Electric/steam

NHZ - 300

300

180

11 ~ 15

Hydraulic tilt/bottom drop

Electric/steam

NHZ - 500

500

300

15 ~ 30

Hydraulic tilt/bottom drop

Electric/steam

NHZ - 1000

1000

600

37 ~ 55

Hydraulic tilt/bottom drop

Electric/steam

NHZ - 1500

1500

900

55

Hydraulic tilt/bottom drop

Electric/steam

NHZ - 2000

2000

1200

75 ~ 90

Hydraulic tilt/bottom drop

Electric/steam

NHZ - 3000

3000

1800

90 ~ 110

Hydraulic tilt/bottom drop

Electric/steam

NHZ - 4000

4000

2400

132 ~ 160

Hydraulic tilt/bottom drop

Electric/steam

Finished Products
