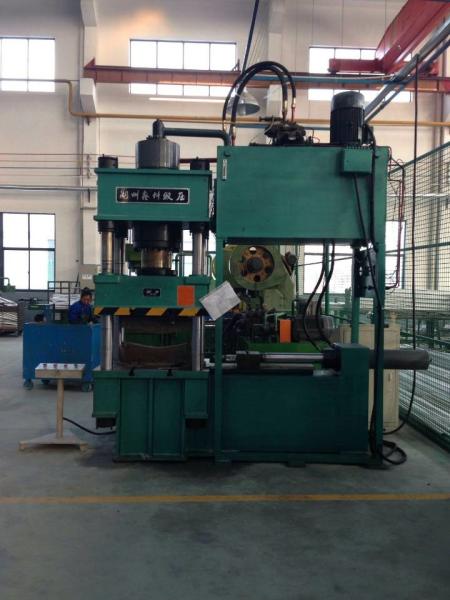

High Speed Hydraulic Vertical Press Machine , 100 Ton Big Hydraulic Press
High Speed Hydraulic Vertical Press Machine , 100 Ton Big Hydraulic Press
Specifications
Brand Name :
XINKE
Certification :
CE, ISO9001:2000
Place of Origin :
China
MOQ :
1 Unit
Price :
USD 50000-1000000 Per Unit
Payment Terms :
L/C, T/T
Supply Ability :
8 Units Per Months
Delivery Time :
90-180 Working Days
Packaging Details :
Wooden case, waterproof cover
Frame :
Four Columns
Drive :
Oil Hydraulic
Control :
PLC
Application :
Pipe Fittings, Tube Fittings, Automotive Exhaust
Feature :
Multi-directional forming
Description

YST 100T Hydraulic Pipe Fitting Forming Press

Features:

  1. Finite element analyzed straight sided frame and four columns frame, high rigidity and precision
  2. Latest electro-hydraulic proportional control technology. Slider position, pressure, working force, working speed can be preset.
  3. Mitsubishi PLC, touch screen
  4. Operation mode: Manual, automation
  5. For 90 degree elbows, 135 degree elbows, side cylinders are used
  6. Light curtain safety protection device
  7. Ultrahigh pressure system is used

Application:

Suitable for the process of various type of carbon steel or stainless steel pipe & tube fittings, such as tees, reducers, elbows.

Technical Data:

Item Unit YST-100
Nominal force kN 1000
Force of lateral cylinder kN 500*2
Working pressure of medium Mpa 25
The opening daylight mm 900
Stroke of slider mm 8/22
Stroke of lateral cylinder mm 100
Worktable height above the floor mm 860
Distance between left lateral cylinder and right lateral cylinder mm 600
Distance between back lateral cylinder and worktable center mm 300
Lateral cylinder height above worktable mm 120
Speed of slider Descend mm/s 160
Working mm/s 10/23
Return mm/s 130
Speed of two lateral cylinder mm/s 10
Motor power Kw 11
Overall size of machine F.B. mm 1700
L.R. mm 3000
Height above the floor mm 3260
Frame type 　 Four-Column
