High Precision Sheet Metal Hydraulic Press , Motorised Hydraulic Press For Pipe Fitting 63T
High Precision Sheet Metal Hydraulic Press , Motorised Hydraulic Press For Pipe Fitting 63T
Specifications
Brand Name :
XINKE
Certification :
CE, ISO9001:2000
Place of Origin :
China
MOQ :
1 Unit
Price :
USD 50000-1000000 Per Unit
Payment Terms :
L/C, T/T
Supply Ability :
8 Units Per Months
Delivery Time :
90-180 Working Days
Packaging Details :
Wooden case, waterproof cover
Frame :
Four Columns
Drive :
Oil Hydraulic
Control :
PLC
Application :
Pipe Fittings, Tube Fittings
Description

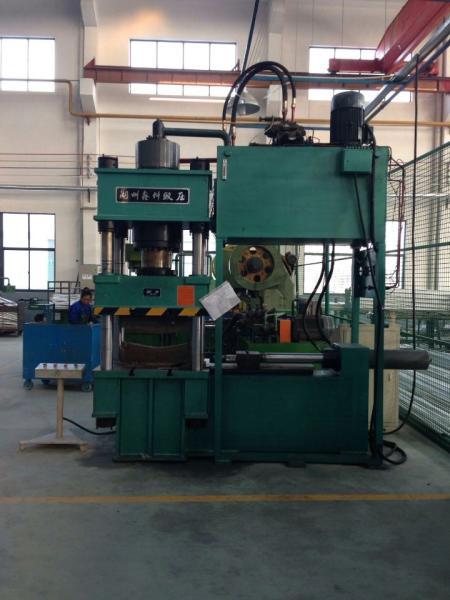

YST 63T Hydraulic Press for Pipe Fitting

Features:

  1. Finite element analyzed straight sided frame and four columns frame, high rigidity and precision
  2. Latest electro-hydraulic proportional control technology. Slider position, pressure, working force, working speed can be preset.
  3. Mitsubishi PLC, touch screen
  4. Operation mode: Manual, automation

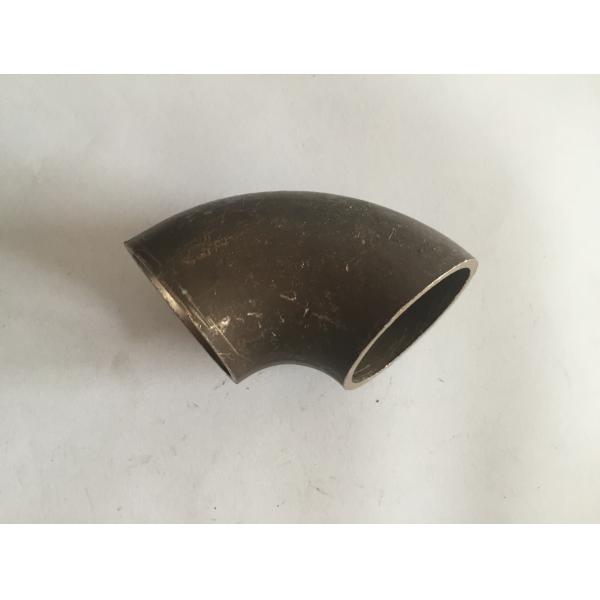

  5. For 90 degree elbows, 135 degree elbows, side cylinders are used
  6. Light curtain safety protection device
  7. Ultrahigh pressure system is used

Application:

Suitable for the process of various type of carbon steel or stainless steel pipe & tube fittings, such as tees, reducers, elbows.

Technical Data:

Item Unit YST-63
Nominal force kN 630
Force of lateral cylinder kN 250*3
Working pressure of medium Mpa 25
The opening daylight mm 500
Stroke of slider mm 230
Stroke of lateral cylinder mm 150
Worktable height above the floor mm 800
Distance between left lateral cylinder and right lateral cylinder mm 600
Distance between back lateral cylinder and worktable center mm 300
Lateral cylinder height above worktable mm 100
Speed of slider Descend mm/s 20
Working mm/s 4/6
Return mm/s 40
Speed of two lateral cylinder mm/s 17
Motor power Kw 5.5
Overall size of machine F.B. mm 1525
L.R. mm 2870
Height above the floor mm 2400
Frame type 　 Four-Column
