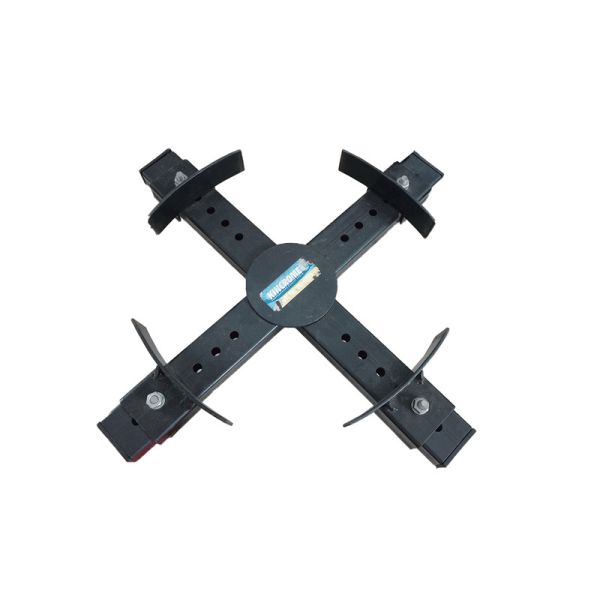

YD05-017 Adjustable Drain Pan Holder Webpage Detail Page(English)

I. Product Specifications (SPECIFICATION)

II. Product Details (PRODUCT DETAILS)

1. 15L Capacity Adaptation + Multi-Specification Compatibility, Covering Mainstream Drain Pans
   The bracket's clamping slot features an adjustable design, with a width adjustment range of 25-40cm via sliders on both sides. It can stably fix 15L standard drain pans (common diameter 35-40cm) and is also compatible with 8-20L drain pans of different capacities and shapes (circular, square). The adaptation rate covers over 90% of mainstream drain pan models; the inner side of the clamping slot is pasted with a 3mm thick anti-slip rubber pad with a friction coefficient of ≥0.98, ensuring no sliding risk of the drain pan even during tilt adjustment, solving the limitation of "one bracket only fitting one drain pan".
2. Sturdy Metal Structure, Load-Bearing and Anti-Deformation
   The main body is integrally bent and formed from Q235 cold-rolled steel plates, with key connection parts reinforced by welding. The bracket can bear a load of 10kg (far exceeding the total weight of 15L oil + drain pan, approximately 8kg) and has no bending deformation after long-term use; the surface is treated with sandblasting rust removal + electrostatic painting, with a coating thickness of 60μm, no rust in the 48-hour salt spray test, and can resist corrosion even in long-term contact with corrosive fluids such as engine oil and transmission oil, with a service life of more than 8 years, and durability 300% higher than plastic brackets.
3. Multi-Dimensional Adjustment, Precise Alignment with Oil Drain Ports
   It supports dual-dimensional adjustment of "height + angle": ① Height adjustment range is 30-60cm, locked by turning the top knob clockwise and loosened for adjustment by turning counterclockwise, adaptable to vehicles with different chassis heights (e.g., family cars, light trucks); ② Angle adjustment range is 0-30°, fixed by side buckles. The bracket can be tilted according to the position of the oil drain port, allowing the drain pan opening to accurately align with the oil drain port, avoiding oil leakage and ground pollution. The oil collection accuracy is 80% higher than that of fixed brackets.
4. Transmission Jack Adaptation, Seamless Scenario Connection
   The bottom of the bracket is equipped with a standardized interface, which can be directly connected to vehicle transmission jack stands without additional fixing parts: Clip the bracket interface into the designated position of the jack (completed in 10 seconds), and it can move and adjust height synchronously with the jack. During transmission oil change, there is no need to adjust the drain pan position separately, realizing synchronous operation of "jack supporting the transmission + bracket collecting oil", greatly improving maintenance efficiency, with an adaptation rate of over 95% for common transmission jack models.

III. Application Scenarios (APPLICATION SCENARIOS)

1. Family Car Transmission Oil Change in Auto Repair Shops
   When auto repair shops replace transmission oil for family cars (e.g., Volkswagen Sagitar, Toyota Camry), they fix the 15L drain pan on the YD05-017 bracket, adjust the bracket height to 40cm (aligning with the transmission oil drain port), and tilt the angle by 15° to ensure oil flows completely into the pan; after the bracket is connected to the transmission jack, it fine-tunes the position synchronously with the jack, with no oil leakage during oil collection, shortening the oil change time from 40 minutes to 25 minutes, adapting to the needs of "efficient standardized maintenance".
2. Light Truck Engine Oil Replacement in Commercial Vehicle Repair Stations
   When commercial vehicle repair stations replace engine oil for light trucks (e.g., Foton Xiangling, JMC Shunda), the 15L drain pan can hold all waste engine oil (about 8-10L); the bracket adjusts the height to 50cm to adapt to the truck's higher chassis, and the anti-slip clamping slot fixes the drain pan, avoiding pan tipping due to ground vibration, improving waste oil collection efficiency by 50%, adapting to the "bulk maintenance of commercial vehicles" scenario.
3. Hydraulic Oil Drainage in Engineering Machinery Maintenance Workshops
   When mining maintenance workshops drain hydraulic oil for small excavators (e.g., Komatsu PC130), they use the bracket's angle adjustment function to tilt the drain pan by 20° to align with the hydraulic oil drain port; the sturdy structure resists the rough construction site environment, and even when the drain pan is full of 15L oil (about 12kg), the bracket has no deformation, solving the pain point of "no stable oil collection tools for field maintenance", adapting to the "field maintenance of engineering machinery" scenario.
4. Engine Maintenance Services in Auto 4S Shops
   When auto 4S shops perform engine maintenance for high-end models (e.g., Mercedes-Benz C-Class, BMW 3-Series), the YD05-017 bracket accurately connects to the transmission jack, adjusting the height and angle to make the drain pan fully fit under the oil drain port; standardized adjustment ensures consistent oil collection positions for each vehicle, avoiding waste oil contamination of chassis components, improving service professionalism, adapting to the "precision maintenance of high-end vehicles" scenario.

IV. Frequently Asked Questions (FAQ)

Q1:Can it adapt to drain pans other than 15L, such as 10L square drain pans?

Q2:When connecting to a transmission jack, how to confirm if the interface is compatible?

Q3:After long-term use, the adjustment knob becomes stuck. How to handle this?

Q4:With a net weight of 5kg, is it convenient for single-person operation? What should
