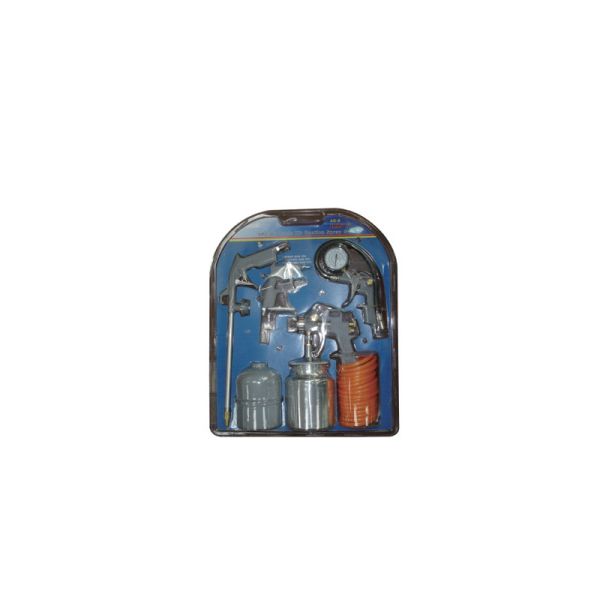

Spray Gun Kit: 5-Tool Set (Spray/Wash/Inflate/Dust) + 5m Hose for Home/DIY/Auto
Spray Gun Kit: 5-Tool Set (Spray/Wash/Inflate/Dust) + 5m Hose for Home/DIY/Auto
Specifications
Brand Name :
YEEDA
Model Number :
YD32-013
Certification :
CE
Place of Origin :
Zhejiang，China
MOQ :
50pcs
Payment Terms :
T/T
Supply Ability :
500PCS/MONTH
Delivery Time :
30-45DAYS
Packaging Details :
Carton Box or Crate
5-in-1 Multi-function :
Combines spraying, washing, inflating, dust blowing in one kit
Universal Compatibility :
Standard G1/4" fittings work with most air compressors
Durable Construction :
ABS + aluminum alloy bodies with brass nozzles for longevity
High-Pressure Performance: :
Up to 120 PSi working pressure for effective cleaning and inflation
Portable Storage :
Includes tool bag for organized storage and transport
Description

YD32-013 Spray Gun Kit (YD32-013 SPRAY GUN KITS) Webpage Detail Page (English)

I. Product Specifications (SPECIFICATION)

1. Kit Components & Core Parameter Summary Table

Component Category Specific Specification Core Parameters
1. Spray Gun Economical conventional suction feed spray gun Fluid Nozzle: 1.8mm (for medium-viscosity coatings); Working Pressure: 50 PSi; Cup Capacity: 1000 mL; Feed Type: Suction; Air Inlet: G1/4"
2. Washing Gun High-pressure pneumatic washing gun Working Pressure: 60-100 PSi; Max Water Pressure: ≤120 PSi; Water Flow Modes: Jet/Fan (2 modes); Water Capacity: 600 mL; Air Inlet: G1/4"
3. Inflating Gun Multi-functional pneumatic inflating gun Working Pressure: 80-120 PSi; Compatible Valves: American/French valves (with adapter); Pressure Gauge Range: 0-160 PSi (precision ±2 PSi); Air Inlet: G1/4"
4. Air Dust Gun High-pressure pneumatic dust gun Working Pressure: 60-100 PSi; Max Pressure: ≤140 PSi; Nozzle Type: Brass straight nozzle (5mm diameter); Air Inlet: G1/4"
5. Air Hose Dual-tube pneumatic hose Length: 5m; Inner Diameter: 8mm; Material: PVC + braided layer (high-pressure resistant, anti-aging); Fittings: G1/4" quick connectors (pre-installed at both ends)
6. Complete Kit Combined pneumatic tool kit Carton Specification: 65×35×28cm (5 kits per carton); Total Weight: 4.2kg (including packaging); Applicable Scenarios: Home DIY, auto maintenance, small-scale repairs
Core Advantages 5-in-1 multi-function, durable dual-tube hose, universal G1/4" fittings, multi-scenario adaptation

2. General Basic Parameters

Parameter Category Specific Description
Product Positioning Exclusively designed for multi-scenarios including home DIY, daily auto maintenance, and small-scale repairs, it mainly serves DIY enthusiasts (furniture renovation, garden maintenance), car owners (vehicle cleaning, tire inflation), and small repair shops (equipment dust blowing, small part spraying). It solves the pain points of "high cost of buying single tools, troublesome storage, and incompatible fittings". With 5-in-1 combination and unified fitting design, it can not only meet coating spraying and high-pressure cleaning needs but also realize inflation and dust blowing. Compatible with media such as water-based paint, cleaning agents, and air, it achieves "one kit for most pneumatic needs, low cost and space-saving".
Structure & Material 1. Common Materials: All gun bodies are made of engineering-grade ABS + aluminum alloy (lightweight and impact-resistant) with anti-slip textured surfaces, no deformation after long-term use; All components have unified G1/4" air inlets, compatible with most household/small industrial air compressors;
2. Component Details:
- Spray Gun: Brass nozzle (wear-resistant) + high-transparency PC cup (corrosion-resistant), with sealing ring on the cup lid (leak-proof when inverted at 30°);
- Washing Gun: Brass adjustable nozzle (switch between jet/fan modes) + transparent water cup (real-time water level observation), with anti-slip grip on the gun body;
- Inflating Gun: Shock-proof pressure gauge (easy to read) + quick-change valve (for cars/bicycles/balls), with built-in deflation valve (precise pressure adjustment);
- Air Dust Gun: Brass nozzle (anti-clogging) + metal trigger (durable), with hook at the tail (easy storage);
- Air Hose: PVC inner layer (high-pressure resistant) + polyester braided outer layer (anti-stretching), usable at -10-60℃, minimum bending radius ≤10cm (flexible routing)
Operation Method 1. Kit Installation:
- Connect the Hose: Insert one quick connector of the hose into the air compressor outlet, and connect the other end to the corresponding tool (spray gun/washing gun, etc.) until a "click" sound is heard (anti-leakage);
- Tool Adaptation: Select tools according to scenarios (e.g., spray gun for painting, washing gun for car cleaning), no additional adapters needed, direct fitting matching;
2. Tool-Specific Operation:
- Spray Gun: Pour coating (no more than 80% of the cup capacity), adjust pressure to 50 PSi, test atomization before spraying;
- Washing Gun: Fill with water/cleaner, adjust pressure to 80 PSi, switch water flow modes before rinsing;
- Inflating Gun: Connect to the valve, observe the pressure gauge, inflate to the target pressure (e.g., 2.5 bar for car tires), use the deflation valve for adjustment if over-inflated;
- Air Dust Gun: Adjust pressure to 60 PSi, press the trigger to blow air at dusty areas;
3. Storage & Maintenance: After use, empty residual media from each tool (e.g., remaining coating from the spray gun, water from the washing gun), coil the hose for storage, and place the entire kit in the included tool bag (space-saving)

II. Product Details (PRODUCT DETAILS)

Centered on "multi-functional integration + cost-effectiveness", the YD32-013 Spray Gun Kit is optimized for multi-scenario pneumatic needs, with core advantages as follows:

1. 5-in-1 All-Round Combination, Covering Most Pneumatic Needs

(1) One Kit Replaces Five, Cutting Costs by Half

Compared with buying a single spray gun (about 150 yuan), washing gun (about 80 yuan), inflating gun (about 50 yuan), air dust gun (about 40 yuan), and air hose (about 60 yuan) separately, the kit price is only 60% of the total cost of individual purchases. It solves four core needs—"painting, cleaning, inflation, dust blowing"—in one go:


  • Home Scenarios: Use the spray gun for furniture renovation, the washing gun for garden tile cleaning, the inflating gun for bicycle/ball inflation, and the air dust gun for computer case dust removal;
  • Auto Scenarios: Use the spray gun for local car touch-up, the washing gun for wheel/chassis cleaning, the inflating gun for tire pressure replenishment, and the air dust gun for engine bay dust blowing;
  • Repair Scenarios: Use the spray gun for anti-rust spraying of small parts, the washing gun for equipment oil stain cleaning, the inflating gun for pneumatic tool pressure replenishment, and the air dust gun for circuit board dust removal.

(2) Unified Fittings + Shared Hose, More Convenient to Use

All components adopt standard G1/4" fittings and share one 5m hose, eliminating the need for frequent hose replacement or additional adapters:


  • For example, during auto maintenance: first use the washing gun to clean wheels, disconnect the hose and connect it to the air dust gun to blow clean the engine bay, then connect it to the inflating gun to replenish tire pressure. Only one hose is needed throughout, improving operation efficiency by 50%;
  • The hose has pre-installed quick connectors at both ends, enabling connection/disconnection in 3 seconds—saving 80% of connection time compared with traditional threaded fittings, easy for beginners to operate.

2. Optimized Performance of Each Component, Practical and Durable

(1) Spray Gun: Suitable for Medium-Viscosity Spraying, Easy for Beginners

The 1.8mm brass nozzle + 50 PSi working pressure is compatible with medium-viscosity coatings such as wall latex paint and furniture primer, with a spraying width of 25-30cm. It can spray 15㎡ of wall per hour; the 1000mL large-capacity cup reduces refilling frequency, and the high-transparency design allows real-time observation of remaining coating to avoid nozzle damage from dry spraying. Compared with single spray guns at the same price, the coating utilization rate is increased to 60% (about 50% for traditional spray guns), reducing waste.

(2) Washing Gun: High-Pressure Dual Modes, A Solution for Stubborn Stains

With 60-100 PSi adjustable pressure + jet/fan dual modes: the jet mode (100 PSi) can remove oil stains on car wheels and moss on garden floors; the fan mode (80 PSi) can clean car bodies and balcony glass over a large area; the 600mL water cup can clean the body of one family car at a time without refilling midway. Compared with household low-pressure car washers, its cleaning efficiency is doubled, and there is no power cord restriction (pneumatic drive is more flexible).

(3) Inflating Gun: Precise Pressure Adjustment, Multi-Scenario Compatible

The 80-120 PSi pressure range + shock-proof pressure gauge can inflate car tires (2.2-2.8 bar), bicycle tires (4-6 bar), and balls (0.5-1 bar); it comes with a quick-change valve, no additional accessories needed, enabling switching between different inflation objects in 10 seconds; equipped with a deflation valve, it can slowly release air to the target pressure if over-inflated, preventing tire blowouts due to excessive pressure—easy for beginners to operate precisely.

(4) Air Dust Gun: High-Pressure Strong Airflow, Dead-Angle-Free Cleaning

Under 60-100 PSi pressure, the airflow speed reaches 80m/s, which can blow clean dust in computer cases and impurities in mechanical part gaps; the 5mm diameter brass nozzle ensures concentrated airflow without dispersion, avoiding dust spread; the gun body has a hook for hanging on a tool rack after use, easy to store. Compared with brush cleaning, its efficiency is tripled with no residual bristles.

(5) Air Hose: Durable and Flexible for Routing

The 5m length covers most household scenarios (e.g., extending from a garage air compressor to a car body); the PVC + braided layer material is high-pressure resistant (≤150 PSi) and anti-stretching (can withstand 50kg tension) with no cracking after long-term use; it remains flexible at low temperatures (-10℃) and does not soften at high temperatures (60℃), with a service life twice that of ordinary PVC hoses.

3. Portable Storage + Cost-Effectiveness, Suitable for Home and Commercial Use

(1) Lightweight + Tool Bag, Space-Saving Storage

The complete kit (including the hose) weighs only 4.2kg, easy for women to carry; it comes with a thickened tool bag (38×25×15cm) for classified storage of all components, preventing loss; the tool bag has a handle and shoulder strap, allowing hand-carrying or shoulder-carrying for outdoor operations (e.g., outdoor furniture spraying)—more portable than scattered single tools.

(2) Cost-Effective, More Economical for Long-Term Use

The single kit price is 40% lower than the total cost of individual components, and the service life of each component is equivalent to that of separately purchased products (over 2 years with normal use); subsequent maintenance costs are low (e.g., vulnerable parts like nozzles and sealing rings can be purchased separately at low prices). Suitable for users with limited budgets but diverse needs, it achieves "low-cost investment, high-value use" whether for home DIY or small repair shops.

III. Application Scenarios (APPLICATION SCENARIOS)

1. Home DIY Whole-House Furniture Renovation (Core Scenario)

Scenario Requirement: A DIY user renovates 2 sets of wooden sofas (approx. 15㎡ surface area) + 4 wooden doors (approx. 20㎡ surface area) in the living room, needing to spray water-based wood paint (medium viscosity). They also need to clean balcony tiles (8㎡), inflate a bicycle, and remove dust from furniture.
Operation Process:


  1. Preliminary Preparation: Connect the hose to the air compressor, use tools in sequence:
    - Air Dust Gun (60 PSi): Blow dust off sofas and wooden doors (10 minutes);
    - Washing Gun (80 PSi, fan mode): Clean balcony tiles (15 minutes);
    - Inflating Gun: Inflate the bicycle tire to 5 bar (3 minutes);
    2. Furniture Spraying:
    - Spray Gun: Pour water-based wood paint (800mL in the 1000mL cup), adjust pressure to 50 PSi, test atomization before spraying—40 minutes for one sofa set, 15 minutes per wooden door;
    3. Storage & Finishing: Empty residual materials from each tool (remaining paint from the spray gun, water from the washing gun), place components in the tool bag for storage (5 minutes).
    Result: Whole-house renovation is completed in 3 days (5 days with traditional single tools). The furniture paint finish is uniform with no brush marks, balcony tiles have no moss residue after cleaning, the bicycle tire pressure is normal, the kit saves about 300 yuan in purchase costs, and storage only takes up one drawer in the wardrobe.

2. Daily Auto Maintenance by Car Owners (Scenario 2)

Scenario Requirement: A car owner performs basic weekly maintenance on their family car, including cleaning the car body/wheels, replenishing tire pressure, blowing dust from the engine bay, and touching up small scratches on the car body (approx. 100cm²) monthly.
Operation Process:


  1. Car Cleaning:
    - Washing Gun (jet mode 80 PSi): Remove wheel oil stains (8 minutes); fan mode 80 PSi: Clean the car body (12 minutes);
    2. Pressure Replenishment & Dust Blowing:
    - Inflating Gun: Check tire pressure (2.3 bar for the left front tire, replenish to 2.5 bar, 5 minutes);
    - Air Dust Gun (70 PSi): Blow dust from the engine bay (to avoid heat buildup from dust, 10 minutes);
    3. Small Scratch Touch-Up:
    - Spray Gun: Pour paint matching the car body color (100mL in the cup), adjust pressure to 45 PSi, apply 2 thin coats (10-minute interval between coats, 20 minutes).
    Result: Each maintenance session is completed in 1 hour (2 hours + 150 yuan at a car wash shop), saving 600 yuan in monthly car wash fees. The touch-up scratches are barely visible to the naked eye, the engine bay temperature is 5℃ lower than when dusty, and stable tire pressure reduces wear.

3. Equipment Maintenance in Small Repair Shops (Scenario 3)

Scenario Requirement: A small electronic repair shop performs daily maintenance, including removing dust from circuit boards, replenishing pressure for repair tools (e.g., pneumatic screwdrivers), and spraying anti-rust paint on small parts (e.g., metal brackets) for customers (5-10 parts each time, 50cm² surface area per part).
Operation Process:


  1. Daily Maintenance:
    - Air Dust Gun (60 PSi): Remove dust from circuit boards (to avoid short circuits, 3 minutes per board);
    - Inflating Gun: Replenish pressure for pneumatic screwdrivers to 80 PSi (to ensure sufficient torque, 2 minutes);
    2. Anti-Rust Spraying for Parts:
    - Spray Gun: Pour anti-rust paint (300mL in the cup), adjust pressure to 50 PSi, spray metal brackets (2 minutes per part);
    3. Tool Storage: After use, coil the hose and place all components in the repair table drawer (no countertop space occupied, 3 minutes).
    Result: Daily maintenance is completed in 30 minutes (1 hour with traditional single tools). The circuit board repair qualification rate increases from 90% to 98% (no secondary failures caused by dust), the anti-rust paint adhesion of parts meets industry standards (no rust after 48-hour salt spray test), and the repair shop saves about 200 yuan in monthly tool purchase costs.

IV. Frequently Asked Questions (FAQ)

Q1: The spray gun in the kit has uneven paint output during spraying. What is the reason?

A1: It is mostly caused by improper coating viscosity or unadjusted pressure. Handle step by step:


  1. Adjust Coating Viscosity: Medium-viscosity coatings (e.g., water-based wood paint) need to be diluted to 15-20s (tested with a viscosity cup). Over-thick coatings cause uneven output, while over-thin coatings cause sagging; stir thoroughly during dilution to avoid sedimentation;
    2. Calibrate Pressure: The spray gun requires stable 50 PSi pressure. Pressure below 45 PSi causes poor atomization and slow output, while pressure above 55 PSi causes paint mist splashing. Adjust via the air compressor pressure valve or the regulator on the kit hose;
    3. Check the Nozzle: Caked coating residue on the nozzle blocks the paint outlet—remove the nozzle, soak it in thinner for 5 minutes, rinse, dry with a soft cloth, and reinstall (do not scratch the nozzle with hard objects).

Q2: The water pressure of the washing gun suddenly decreases. What should I do?

A2: It is mostly caused by a blocked water cup or leaking hose. Troubleshoot quickly:


  1. Check the Water Cup: Impurities (e.g., moss, scale) in the washing gun water cup block the water inlet—unscrew the water cup, pour out impurities, rinse with clean water, and reinstall; if the bottom filter is blocked, remove it and scrub with a toothbrush;
    2. Check Hose Connection: Loose quick connectors cause air leakage and pressure drop—disconnect the connector, reinsert until a "click" sound is heard (ensure locking), and check if the connector sealing ring is deformed (replace if deformed);
    3. Air Compressor Compatibility: Small air compressors ＜0.3m³/min cause pressure drop during long-term use—use the "intermittent rinsing" method (30s spraying + 20s pause) or replace with an air compressor ≥0.3m³/min.

Q3: The inflating gun pressure gauge is inaccurate, and the inflated pressure does not match the actual pressure. How to solve it?

A3: It is mostly caused by uncalibrated pressure gauges or loose valve connections. Handle accordingly:


  1. Calibrate the Pressure Gauge: Compare the inflating gun gauge with a tire pressure gauge (higher precision). If the deviation is ＞0.2 bar, adjust the gauge (open the calibration screw on the top of the inflating gun, fine-tune the pointer to the correct position with a small screwdriver); if the deviation is excessive (＞0.5 bar), contact the merchant for gauge replacement;
    2. Check Valve Connection: An incompletely sealed valve connection causes air leakage, showing higher pressure than actual—fully cover the valve with the inflating nozzle (apply a small amount of soapy water; re-connect if bubbles appear);
    3. Operation Tip: Press the trigger slowly during inflation to avoid pointer jitter from fast airflow. Slow down when approaching the target pressure and fine-tune with the deflation valve (0.1 bar per deflation) for precision.

Q4: The kit hose is too short (5m). Can an extension hose be added? Will it affect pressure?

A4: Extension hoses can be added—choose compatible specifications, with minimal pressure impact:


  1. Extension Hose Selection: Choose a high-pressure hose with G1/4" fittings and inner diameter ≥8mm (consistent with the kit hose), recommended length ≤10m (total length ≤15m) to avoid excessive pressure loss; PVC braided hoses of the same brand are recommended (better compatibility);
    2. Pressure Impact: After adding a 10m extension hose, the end pressure decreases by 5-8 PSi (e.g., 100 PSi at the air compressor outlet, approx. 92-95 PSi at the end)—still within the normal operating range of all tools (50 PSi for the spray gun, 60-100 PSi for the washing gun), with no impact on use;
    3. Connection Note: Use quick connectors to connect the extension hose (one end to the kit hose, the other to the tool) to ensure no leakage; if the total length exceeds 15m, replace with an air compressor ≥0.5m³/min to compensate for pressure loss.
