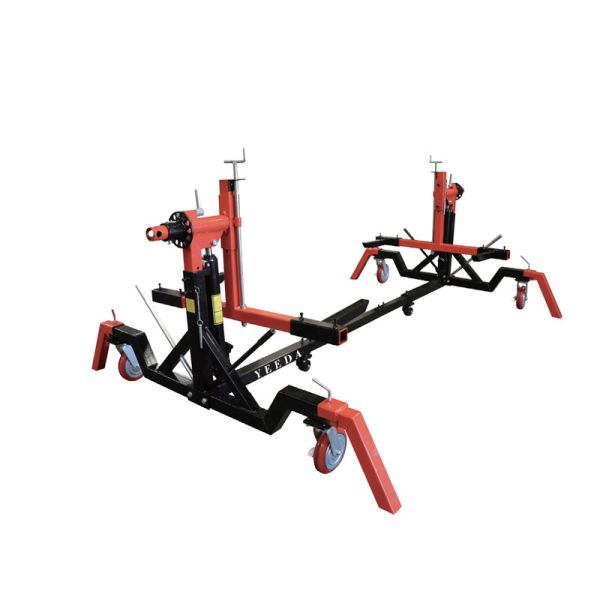

YD42-002 Automotive Rotisserie (Automotive Rotisserie YD42-002) Webpage Detail Page (English)

I. Product Specifications (SPECIFICATION)

1. Core Parameter Summary Table

2. Performance Test Table

II. Product Details (PRODUCT DETAILS)

1. 4,500 LBS Strong Load-Bearing + Dual-Cylinder Drive, Stable Performance

(1) High-Strength Structure, Rugged and Impact-Resistant

• The bracket body is welded with Q235B carbon steel (key parts thickened to 12mm), with a tensile strength of ≥375MPa. When carrying a 4,500 LBS vehicle, the bracket bending is ≤0.3mm, far exceeding the shortcoming of "ordinary rotisseries deforming at 3,000 LBS";
• Connection parts are fastened with Grade 8.8 high-strength bolts (torque value 50-55N·m), with no false welds, no loosening risk during long-term use, and suitable for high-frequency maintenance operations.

(2) Synchronous Dual-Cylinder Lifting, Safe and Reliable

• The dual hydraulic cylinders are independently controlled but have a synchronization error of ≤0.5mm. The vehicle body remains horizontal during lifting, avoiding part slipping due to one-sided inclination;
• Built-in overload protection device: When the load exceeds 4,500 LBS, the hydraulic system automatically relieves pressure to prevent damage to the hydraulic cylinders and brackets, and simultaneously issues an audible and visual alarm to remind operators.

2. 360° Rotation + Flexible Movement, High Maintenance Efficiency

(1) All-Angle Operation, No Maintenance Blind Spots

• 360° free-rotation bearing: The vehicle body can be easily rotated manually. Whether it is chassis welding, body rust removal, or paint spraying, the maintenance part can be adjusted to the optimal operation angle (e.g., turning the chassis upward without bending or kneeling), increasing operation efficiency by 60%;
• Adjustable-length bracket: By telescoping the bracket rod, it is compatible with vehicles with wheelbases of 121.7-260 inches, eliminating the need for custom brackets for different vehicles and reducing maintenance costs.

(2) Caster Movement + Locking, Strong Scene Adaptability

• 8-inch polyurethane casters: High load-bearing capacity, rolling without scratches on concrete floors or tile floors in repair shops. When pushing the rotisserie with a loaded vehicle, the force required by a single person is ≤80N, making it easy to adjust the operation position;
• Caster locking function: After pressing the locking pedal, the brake pads closely fit the rim, with an anti-slip coefficient of ≥0.8. Even on a 5° inclined ground, the rotisserie has no displacement, ensuring maintenance safety.

3. Durable Coating + Humanized Design, Excellent User Experience

(1) Corrosion and Scratch Resistance, Low Maintenance Cost

• Surface powder coating: Cured at high temperature (180℃ for 20 minutes), with strong adhesion. No scratches from tool collisions or part friction, and no rust for 3 years of use in humid repair shop environments;
• Bearing waterproof design: The rotating bearing has built-in double-lip sealing rings to prevent dust and water from entering, eliminating the need for frequent grease addition and extending the maintenance cycle to once every 6 months.

(2) Detail Optimization, Low Operation Threshold

• Lifting height marking: Clear scales (accuracy 1cm) are printed on the side of the bracket, facilitating precise control of the lifting height and avoiding collision between the vehicle body and the ceiling;
• Lightweight design: Although the rated load is 4,500 LBS, the rotisserie itself weighs only 238 kg. With casters, 2 people can adjust the position without relying on large equipment;
• Accessory compatibility: The optional Rotisserie Leg Kit can be purchased to provide additional support when rotating the vehicle body, especially suitable for scenarios requiring stable operations such as body welding, increasing safety by 50%.

III. Application Scenarios (APPLICATION SCENARIOS)

1. Body Restoration in Automotive Repair Shops (Core Scenario)

1. Equipment Preparation and Vehicle Mounting:
   - Use a forklift to transport YD42-002 to the maintenance workstation, unlock the casters to adjust the position, and then relock them;
   - Install the bracket adapter suitable for the Lavida model, slowly hoist the vehicle onto the rotisserie load-bearing platform, and fix the vehicle body with clamps (ensuring the center of gravity is centered);
   2. Restoration Operation:
   - Lifting Adjustment: Start the hydraulic system, lift the vehicle body to a height of 120cm (a comfortable height for operators to stand and work), and start rust removal on the vehicle body sides and top;
   - Rotation Operation: After finishing the treatment of the sides and top, manually rotate the vehicle body 180° to face the chassis upward, adjust the height to 80cm, and use sandblasting equipment to remove rust from the chassis (no need to kneel, easy operation);
   - Paint Spraying and Curing: After rust removal, rotate the vehicle body to a horizontal position, lower it to 60cm, spray paint on the vehicle body, and then rotate it to a 30° incline to accelerate paint drying;
   3. Restoration Effect:
   - High Efficiency: The entire process from rust removal to paint spraying takes only 1.5 days, saving 1 day compared to traditional fixed brackets and increasing workstation turnover rate;
   - High Quality: Rust removal on hard-to-reach parts such as the chassis and body bottom is thorough, and the paint is evenly applied, with full satisfaction from the owner during acceptance;
   - Low Cost: No need to hire a professional restoration team, the repair shop completes the work independently, increasing the restoration profit of a single vehicle by 35%.
   Result: The body restoration capability of the automotive repair shop is enhanced, with both maintenance efficiency and quality improved, increasing customer repurchase rate.

2. Chassis Maintenance in Automotive Modification Shops (Scenario 2)

1. Model Selection and Adaptation:
   - The Changan CS75 has a curb weight of 1.7 tons and a wheelbase of 2.7 meters. YD42-002 (4,500 LBS load capacity + 121.7-260 inch length compatibility) fully meets the needs. The Rotisserie Leg Kit is additionally purchased to enhance stability;
   - Install modification-specific clamps: Fix clamps suitable for the SUV chassis on the rotisserie to ensure no vehicle body wobble after fixing;
   2. Modification Operation:
   - Multi-Angle Maintenance: Lift the vehicle body to a height of 100cm, rotate it to face the chassis upward, and replace the control arms (no need to bend over for bolt removal and installation, with sufficient operation space);
   - Welding Reinforcement: Rotate the vehicle body to a 45° incline to face the welding part toward the operator, fix it with the Rotisserie Leg Kit, and perform welding with no vehicle body wobble and smooth welds without false welding;
   - Guard Installation: Rotate the vehicle body to a horizontal position, lower it to 70cm, and install the chassis guard, with no need to move the vehicle throughout the process, saving time and effort;
   3. Modification Effect:
   - Convenient Operation: No blind spots in chassis maintenance and modification, saving 2 hours of operation time compared to traditional workstations;
   - Safe and Stable: No displacement of the rotisserie during welding, no safety hazards, and the chassis strength of the modified vehicle is increased by 40%;
   - Customer Recognition: The owner observed the modification process on site, highly recognized the convenience brought by the rotisserie, and later recommended 3 customers to the shop for modification.
   Result: The efficiency of the modification shop's chassis modification business is improved, the customer experience is optimized, and both the shop's reputation and performance grow.

3. Accident Vehicle Repair in Small Automotive Maintenance Stations (Scenario 3)

1. Equipment Adaptation and Workstation Adjustment:
   - The Dongfeng Xiaokang has a curb weight of 1.2 tons, which is easily carried by YD42-002. Use the casters to move the rotisserie to the corner workstation of the maintenance station (saving space) and lock the casters;
   - Install body fixing clamps: Fix the clamps on the truck chassis longitudinal beams to ensure no vehicle body displacement during straightening;
   2. Repair Operation:
   - Deformation Straightening: Lift the vehicle body to a height of 90cm, rotate it to face the deformed longitudinal beam outward, and use a hydraulic straightener for stretching and straightening (the rotisserie provides stable support, with straightening accuracy reaching 0.3mm);
   - Welding Repair: Rotate the vehicle body to a horizontal position facing upward to facilitate the operator's control of the welding angle, repair the sunken body sides, and ensure no gaps after welding;
   - Inspection and Acceptance: Rotate the vehicle body 360° and use a vernier caliper and dial indicator to detect the dimensions of the straightened parts, ensuring consistency with the original factory data;
   3. Repair Effect:
   - High Space Utilization: The repair is completed in a 15㎡ narrow workstation, with no need to occupy the main maintenance workstation;
   - Qualified Repair Quality: The straightness error of the longitudinal beam after straightening is 0.2mm, no cracks in the welded parts, and no deviation during subsequent vehicle driving;
   - Controllable Cost: The equipment purchase cost is lower than that of large maintenance equipment, which can be easily afforded by small maintenance stations, expanding the accident vehicle repair business.
   Result: The business scope of the small maintenance station is expanded, realizing efficient maintenance within limited space and improving market competitiveness.

IV. Frequently Asked Questions (FAQ)

Q1: During use, the dual hydraulic cylinders lift asynchronously, with one side of the vehicle body higher than the other. What is the reason?

1. Check Hydraulic Oil Level: Turn off the hydraulic system, open the oil tank cap. If the oil level difference between the oil circuits connected to the two hydraulic cylinders is ＞1cm, add 46# anti-wear hydraulic oil to make the oil levels on both sides consistent, ensuring uniform oil supply;
2. Discharge Air from Hydraulic Cylinders: Lower the vehicle body to the lowest position, loosen the exhaust valve on the top of the hydraulic cylinder, and slowly lift the vehicle body to the highest position. At this time, air will be discharged from the exhaust valve (bubbles will appear). Close the exhaust valve after no more bubbles are released, and re-test the lifting synchronization;
3. Check Hydraulic Valve: If the above operations are ineffective, the hydraulic control valve may be stuck. Disassemble the valve body and clean it (flush the valve core with diesel to remove impurities), apply hydraulic oil for lubrication after re-installation, and ensure the valve core moves flexibly.

Q2: During vehicle body rotation, the resistance is too large and even rotation is impossible. How to handle it?

1. Add Grease: Turn off the rotisserie, disassemble the rotating bearing end cover with a wrench, apply lithium-based grease (thickness 2-3mm) between the bearing balls and raceways, and manually rotate the bearing after application to ensure uniform lubrication. The resistance will be significantly reduced;
2. Clean Impurities: If there are metal chips or dust in the bearing, blow off the impurities with compressed air, then apply grease to avoid bearing raceway wear caused by impurities (it is recommended to clean once every 3 months, and monthly in humid environments);
3. Check Vehicle Body Fixing: Excessively tight body fixing clamps will increase rotation resistance. Loosen the clamp bolts and adjust the clamping force (to the extent that the vehicle body has no wobble) to avoid excessive clamping causing rotation difficulties.

Q3: How to judge whether a vehicle is compatible with the YD42-002 Automotive Rotisserie?

1. Confirm Vehicle Weight: The vehicle's curb weight must be ≤2,025 kg (4,500 LBS). If it exceeds this weight (e.g., a medium-sized SUV with a curb weight of 2.2 tons), the rotisserie will be overloaded, and a model with higher load capacity is required;
2. Confirm Vehicle Wheelbase: The vehicle's wheelbase must be within the range of 121.7-260 inches (approx. 309-660 cm). If the wheelbase is too short (e.g., a micro-car with a wheelbase of 2.3m) or too long (e.g., a mid-to-large sedan with a wheelbase of 3.1m), a bracket adapter of corresponding length needs to be replaced (customization service is available from the merchant);
3. Confirm Body Structure: It is compatible with non-load-bearing bodies (with independent chassis) and load-bearing bodies (special chassis brackets need to be installed). For bodies with special structures (e.g., convertibles without a complete roof beam), additional auxiliary supports need to be installed to avoid body deformation during rotation.

Q4: After long-term use, the casters become stuck and cannot roll smoothly. How to solve this problem?

1. Clean Wheel Axle Impurities: Pry open the caster dust cover with a screwdriver, blow off the dust and debris in the wheel axle with compressed air. If there are tangled threads or hair, cut them off with scissors and clean to avoid hindering rolling;
2. Lubricate Bearings: Drop 3-5 drops of lubricating oil (e.g., sewing machine oil, light machine oil) into the caster bearings, manually rotate the casters 10-20 times to ensure the lubricating oil penetrates into the bearings, and the stuck feeling will be eliminated;
3. Replace Damaged Parts: If the caster tires are severely worn (tread depth ＜1mm) or the bearings are damaged (abnormal noise during rotation), replace them with casters of the same specification (8-inch polyurethane material, load capacity ≥1,000 LBS/piece). After replacement, test the rolling smoothness to ensure compatibility with the rotisserie.
