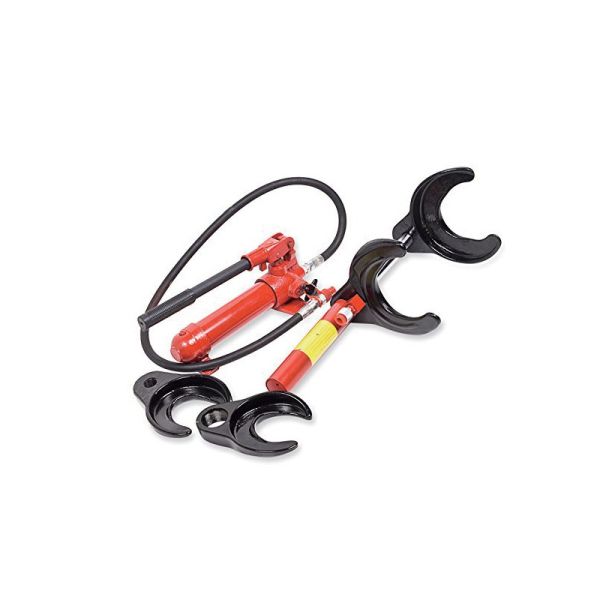

YD23-005 1650LBS Hand Hydraulic Spring Compressor Webpage Detail Page (English)

I. Product Specifications (SPECIFICATION)

1. Basic Information & Core Parameters

II. Product Details (PRODUCT DETAILS)

1. 22kg Lightweight + Compact Size, Full Portability

(1) Portable by One Person, Operable Anywhere

(2) Small Volume Adapts to Multiple Scenarios, No Space Occupation

2. Hand Hydraulic Drive + Labor-Saving Design, No Operation Threshold

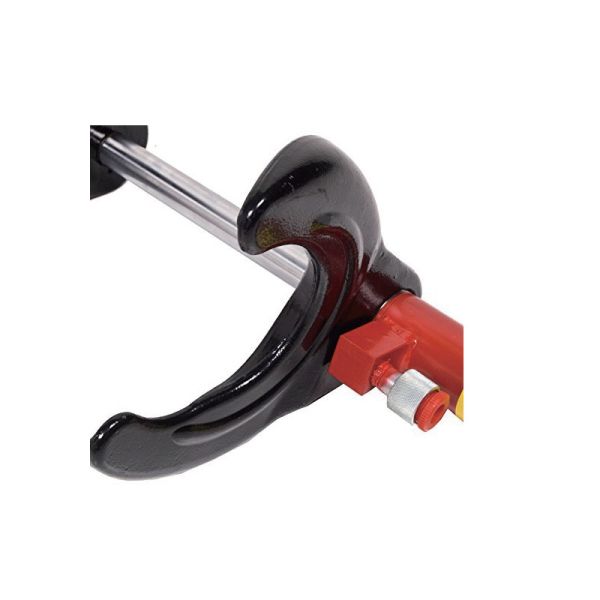

(1) Hand Hydraulic Rod, Easier Force Application

1. Fix the spring at the anti-slip contact position and confirm that the parameters are adaptable;
2. Press the hydraulic rod repeatedly (the pressure increases by 50LBS each time), and after 10-15 presses, the rated pressure of 1650LBS can be reached, compressing the spring from 260mm to 100mm;
3. After compression, open the pressure relief valve to reset slowly. The operation steps are simple and can be learned in 5 minutes.
   The operating force is only 40N (equivalent to the pressure of a 4kg weight), which can be easily operated by women or middle-aged and elderly users. It is 50% more labor-saving than pure mechanical wrenches (requiring two hands to twist), and no obvious fatigue is felt after continuously compressing 8 springs.

(2) No External Dependence, Full Scenario Coverage

3. 100-200mm Wide Adaptation + Safety Protection, Dual Guarantee of Practicality and Safety

(1) Universal for Small and Medium-Sized Springs, No Accessory Replacement Needed

(2) Dual Safety Protection, Avoiding Accidents

• Overload Protection: The hydraulic safety valve automatically relieves pressure when the spring resistance exceeds 1650LBS. For example, if an oversized spring with 210mm diameter is mistakenly compressed, the equipment stops pressurizing automatically, avoiding spring burst injury or hydraulic rod bending;

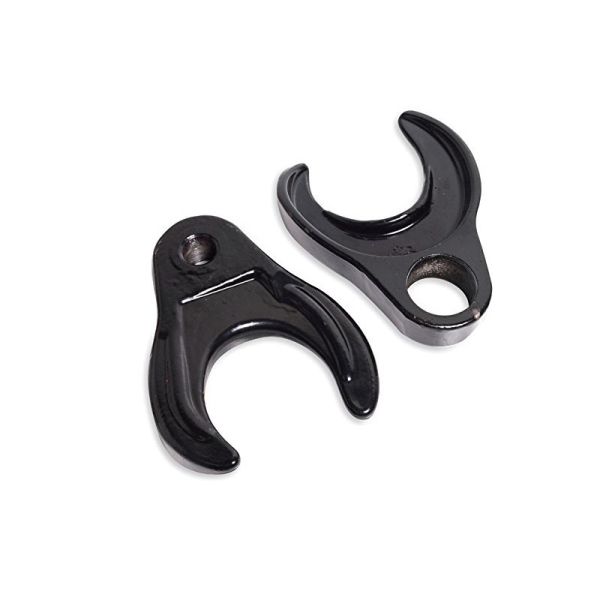

• Anti-Slip and Anti-Scratch: The rubber anti-slip pad can not only fix the spring but also prevent the metal equipment from scratching the spring surface (especially suitable for electroplated springs). Compared with unprotected equipment, the component protection rate is increased by 95%, and the spring appearance is undamaged after maintenance, leading to higher customer satisfaction.

III. Application Scenarios (APPLICATION SCENARIOS)

1. Small Spring Replacement for Cars in Small Auto Repair Shops (YD23-005)

1. The maintenance worker lifts the equipment (22kg) to the workstation with one hand, fixes the spring at the anti-slip contact position, and confirms parameter adaptation.
2. Press the hydraulic rod repeatedly 12 times, compressing the spring from 260mm to 100mm in 15 seconds. Both hands assist in removing the old spring and installing the new one.
3. Open the pressure relief valve to reset. The whole process takes 25 minutes per vehicle, 37.5% more efficient than traditional manual tools (40 minutes per vehicle). It can be completed by one person, saving labor.
   Result: Portability and labor-saving features are suitable for small auto repair shops. No fixed workstation is occupied, and it can flexibly handle small spring maintenance for multiple vehicle models, increasing daily revenue by 40%.

2. Outdoor Spring Maintenance for Automotive Emergency Rescue (YD23-005)

1. The rescue worker takes the equipment out of the trunk (gross weight 23kg, no tools needed for unpacking) and fixes the spring on-site.
2. Press the hydraulic rod 10 times manually, completing compression in 12 seconds. Replace the broken spring and release pressure slowly.
3. The rescue is completed in 40 minutes. After use, the equipment is directly put back into the trunk without affecting the storage of other rescue tools.
   Result: Energy independence and portability are suitable for outdoor rescue. Compared with power-dependent equipment (unusable outdoors), the practicality is increased by 100%, ensuring the timeliness of rescue.

3. Light-Load Spring Handling in Hardware Repair Workshops (YD23-005)

1. The worker places the equipment on a 1㎡ workbench without fixation, directly fixes the spring and presses the hydraulic rod.
2. Soft springs (such as door lock return springs) take 10 seconds per piece, and hard springs (such as small mechanical springs) take 20 seconds per piece. 25 pieces are processed per hour, and the daily task is completed in 2 hours.
3. After operation, the equipment is put into the storage box under the workbench (the 60×19×25cm size fits exactly), without occupying operation space.
   Result: Small volume and high efficiency are suitable for small workshops. Compared with large equipment (space-consuming and inefficient), the daily handling capacity is increased by 50%, while reducing the pressure of site rent costs.

4. Home DIY Spring Maintenance (YD23-005)

1. Take the equipment out of the home toolbox and fix the spring according to the steps in the manual (the graphic guide is clear and can be understood in 5 minutes).
2. Press the hydraulic rod with one hand (small operating force, easy for women to operate), compress the spring in 18 seconds, and release pressure to reset after maintenance.
3. After use, the equipment is put back into the toolbox, no debugging is needed for the next use. Compared with hiring a professional repair shop (with a one-time fee of 50-100 yuan), long-term costs are saved.
   Result: Easy operation and safety are suitable for home scenarios, meeting the needs of daily small spring maintenance, while cultivating DIY ability and reducing maintenance expenses.

IV. Frequently Asked Questions (FAQ)

Q1: Can the YD23-005 (1650LBS load) compress the main automotive shock absorber spring with compressed spring diameter 210mm? Will it be overloaded?

Q2: During use, the hand hydraulic rod is laborious to press and the spring compression speed slows down. What is the reason and how to solve it?

1. Check the hydraulic oil level: Open the micro oil filling port on the top of the equipment (needs to be disassembled with a small wrench). If the oil level is below the scale line (needs to cover 1/2 of the hydraulic pump bottom), add special micro hydraulic oil (32# anti-wear hydraulic oil is recommended, with a single addition ≤50ml). After adding, press the hydraulic rod repeatedly 5 times to discharge air from the oil circuit;
2. Clean the oil circuit blockage: If the oil level is normal, disassemble the micro oil pipe connecting the hydraulic rod and the pump body, blow out internal impurities (such as metal debris, dust) with compressed air (0.2MPa), or rinse with alcohol and dry before reassembling to ensure the oil circuit is unobstructed;
3. Lubricate the hydraulic rod: If there is a stuck feeling when pressing the hydraulic rod, apply a small amount of lithium-based grease (only a thin layer) on the rod surface, push and pull the hydraulic rod repeatedly 10 times to reduce frictional resistance and restore pressing smoothness.

Q3: Can one person carry the 22kg equipment for a long time? Are there any labor-saving carrying tips?

1. One-hand lifting posture: Hold the anti-slip handle on the top of the equipment (located at the center of gravity), let the arm hang naturally, avoid shrugging or tensing the arm. When walking, gently lift the equipment with the help of the body's swinging inertia. Change hands every 20 meters to reduce fatigue of the single arm. This method allows continuous carrying for 100 meters without obvious discomfort;
2. Use a portable cart: If the carrying distance exceeds 200 meters (such as from the community gate to the garage), place the equipment on a folding cart with a load capacity ≥30kg (the size of a supermarket shopping cart) and push it with one hand, no manual lifting is needed, saving 90% of physical strength;
3. Fixation in the car: When placing it in the car trunk, fix the equipment to the side of the trunk with a seat belt or storage rope to avoid bumping and collision during driving, without affecting the storage of other items.

Q4: After long-term non-use, the equipment's hydraulic system has a "fast pressure relief" phenomenon (the spring rebounds quickly after compression). How to handle it?

1. Replace the seals: Disassemble the hydraulic pump body, take out the internal micro seal ring (the manufacturer can provide spare parts, priced at 15-20 yuan/set), replace it with a new seal ring (pay attention to the installation direction to avoid seal failure due to reverse installation). After reassembly, add new hydraulic oil and test the pressure relief;
2. Clean the one-way valve: If the pressure relief is still fast with intact seals, disassemble the one-way valve core, wipe the impurities on the core surface with a fine cotton swab dipped in alcohol, ensure the core can close flexibly, and avoid the core from being unable to seal due to impurities;
3. Replace the hydraulic oil: If the hydraulic oil has been used for more than 1 year (or turns turbid), drain the old oil and add new 32# anti-wear hydraulic oil (the addition amount is subject to the scale line, not too much). Discharge the air from the oil circuit and try again. It is recommended to replace the hydraulic oil once a year, and new oil should also be replaced before long-term storage;
4. Storage maintenance: When not in use for a long time, compress the equipment to
