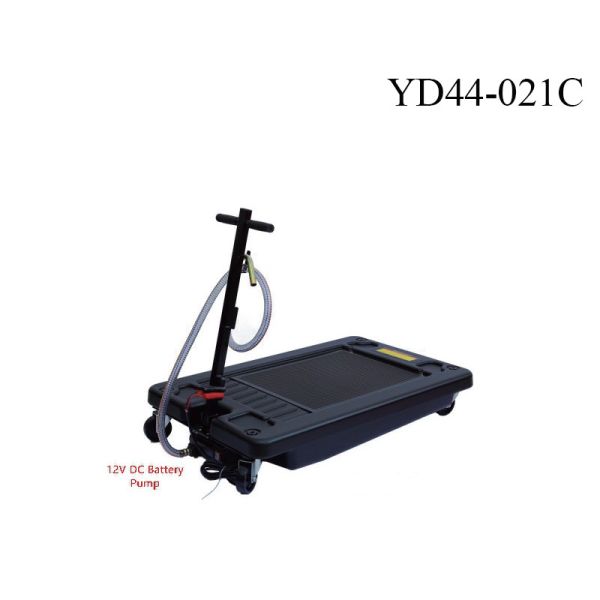

17 Gal Low Profile Oil Drainer 12V Pump 15L/Min for Buses / Coaches
17 Gal Low Profile Oil Drainer 12V Pump 15L/Min for Buses / Coaches
17 Gal Low Profile Oil Drainer 12V Pump 15L/Min for Buses / Coaches
17 Gal Low Profile Oil Drainer 12V Pump 15L/Min for Buses / Coaches
Specifications
Brand Name :
YEEDA
Model Number :
YD44-021C
Certification :
CE
Place of Origin :
Zhejiang，China
MOQ :
50pcs
Payment Terms :
T/T
Supply Ability :
500PCS/MONTH
Delivery Time :
30-45DAYS
Packaging Details :
Carton Box or Crate
Tank Capacity: :
17 gallons (64.3L)
G.W./N.W. :
19.5kg/18kg
Outer Packing Size :
72×19×112cm
Temperature Range :
-30℃ to 80℃
Applicable Medium :
Waste vehicle oil only
Description

YD44-021C 17-Gallon Low-Profile Oil Drainer with 12V DC Battery Pump (17-Gallon Low-Profile Oil Drainer with 12V DC Battery Pump YD44-021C) Webpage Detail Page (English)

I. Product Specifications (SPECIFICATION)

1. Core Parameter Summary Table

Parameter Category Specific Specification
Model YD44-021C (Industrial-grade low-profile oil drainer with 12V DC battery pump, specialized for low-clearance vehicles like buses and coaches, enabling fast electric oil draining without external power cords)
Product Type 17-gallon (approx. 64.3L) low-profile mobile electric oil drainer, combining "HDPE anti-rust tank + 12V DC battery pump + heavy-duty casters" to solve inefficiency of manual pumping in low-clearance oil collection scenarios
Basic Parameters 1. Tank Capacity: 17 gallons (≈64.3L, single collection for 1 bus/2 light trucks or 8-10 family cars);
2. G.W./N.W.: 19.5kg/18kg (lightweight, movable by 2 people, 5% heavier than manual pump versions due to battery, but still portable);
3. Outer Packing Size: 72×19×112cm (thickened 5-layer corrugated carton with foam cushion, anti-extrusion; packaging damage rate ≤1.2%);
4. Temperature Range: -30℃-80℃ (adapts to cold garages and hot workshop environments);
5. Applicable Medium: Waste vehicle oil (engine oil, transmission oil; prohibited for flammable, corrosive, or impurity-containing liquids);
6. Key Inclusions: HDPE tank, 12V DC battery pump, 5.9ft evacuation hose, T-handle, 4×4in heavy-duty casters, 16.4L liquid level indicator (Lit Dis.)
Core Structure & Performance 1. Tank System:
- Material: HDPE (High-Density Polyethylene) – impact-resistant, oil-resistant, non-rusting; no deformation at -30℃-80℃, service life ≥8 years;
- Dimension: 110×70×17cm (17cm ultra-low profile, fits under vehicles with ground clearance ≥18cm, no chassis collision);
- Liquid Level Indicator: 16.4L visible scale, real-time monitoring to prevent overflow during collection;
2. Electric Pump System:
- Pump Type: 12V DC battery pump (rechargeable battery, 4-hour full charge supports 10+ draining cycles);
- Flow Rate: 15L/min (64.3L full tank drained in ≈4.3 minutes, 25× faster than manual hand pumps);
- Battery Life: 800+ charge-discharge cycles, standby time ≥30 days when fully charged;
3. Mobility & Safety:
- Casters: 4×4in heavy-duty swivel casters (single caster load ≥25kg); oil-resistant rubber wheel surface, pushing resistance ≤40N, no slipping on oily floors;
- T-Handle: Ergonomic non-slip design, easy to grip for steering, suitable for moving between workshop workstations

2. Performance Test Table

Test Item Test Condition Test Result
Low-Profile Adaptability Place under a bus with 18cm ground clearance, collect 50L waste oil Tank slides smoothly under the bus; aligns with oil drain port perfectly; no spillage, collection rate 100%
Pumping Efficiency Use 12V DC pump to drain 64.3L full tank of waste oil Drained completely in 4 minutes 20 seconds; flow rate stable at 15L/min, no pump jamming
Battery Performance Full charge, continuous draining of 5×64.3L tanks (321.5L total) Battery remains functional after 5 cycles; voltage drops by only 0.8V, no impact on pumping speed
Temperature Resistance Store at -30℃ for 8 hours, then pump 30L oil at 80℃ workshop temperature HDPE tank no cracking/deformation; pump starts normally, battery works without power loss; hose maintains flexibility

II. Product Details (PRODUCT DETAILS)

YD44-021C 17-Gallon Low-Profile Oil Drainer with 12V DC Battery Pump targets two core pain points of traditional low-profile oil drainers: "bulky manual pumping" and "reliance on external power". With "12V electric pumping + ultra-low profile + long battery life" as the core, it redefines efficiency in low-clearance vehicle oil collection, with key advantages as follows:

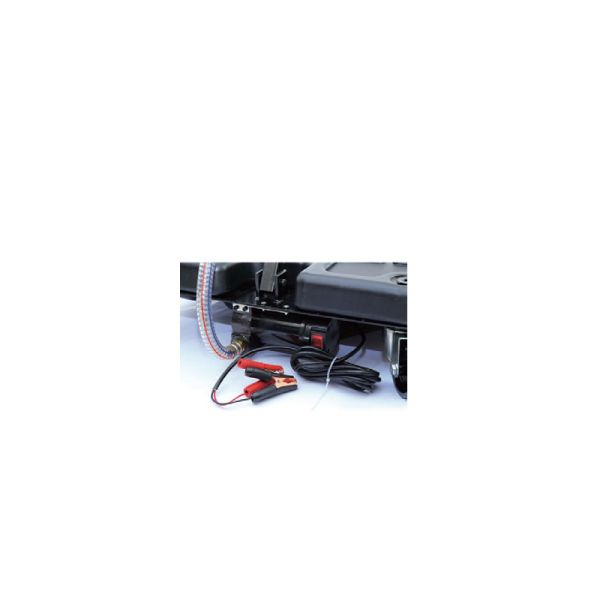

1. 12V DC Battery Pump: 15L/Min Fast Draining, No Manual Effort

  • Electric Efficiency: The 15L/min flow rate is a game-changer for high-volume maintenance – draining a 50L bus oil tank takes just 3.3 minutes, compared to 80 minutes with a manual pump. This cuts labor time by 96% for batch operations (e.g., 10 buses serviced in 1 hour vs. 16 hours with manual tools);
  • Cordless Convenience: The built-in rechargeable battery eliminates the need for power cords, making it ideal for outdoor maintenance (e.g., highway service areas for coach breakdowns) or workshops with limited power outlets. A full charge supports 10+ draining cycles, covering daily maintenance needs of most small-to-medium repair shops.

2. 17cm Ultra-Low Profile: Perfect for Low-Clearance Vehicles

  • Under-Vehicle Access: The 17cm tank height is tailored for buses, coaches, and low-chassis trucks (ground clearance 15-25cm). Unlike standard oil drainers (25-30cm tall) that get stuck under low vehicles, YD44-021C slides under the chassis effortlessly, even in tight spaces between vehicle frames;
  • Stable Low Center of Gravity: The 110×70cm wide tank base keeps the drainer stable when fully loaded (≈82kg total weight). There’s no risk of tipping during movement, which is critical for narrow workshop aisles or uneven outdoor ground.

3. Durable HDPE Tank + Heavy-Duty Casters: Long-Lasting & Maneuverable

  • All-Weather HDPE Tank: High-Density Polyethylene (HDPE) resists oil corrosion, impacts, and extreme temperatures (-30℃-80℃). It won’t rust like metal tanks or crack in cold weather, ensuring reliable use in northern winters or southern summers. The smooth tank interior is easy to clean, with no residual oil buildup;
  • Easy Mobility: 4×4in heavy-duty casters and an ergonomic T-handle make movement a breeze. Even when fully loaded, 2 people can push it across concrete floors or gravel yards without strain. The oil-resistant rubber wheels maintain grip on oily workshop surfaces, preventing accidental sliding during oil collection.

III. Application Scenarios (APPLICATION SCENARIOS)

1. Bus Depot Batch Maintenance

Scenario Requirement: A city bus depot needs to service 12 diesel buses (each requiring 55L waste oil collection) in 5 hours. Buses have 18cm ground clearance; workshop has limited power outlets.
Operation Process:


  1. Equipment Prep: Fully charge YD44-021C’s battery (done overnight), push the drainer under each bus, align the tank with the oil drain port, and lock casters;
    2. Oil Collection: Open the bus oil drain bolt, collect 55L oil in 10 minutes per bus (tank capacity supports 1 bus per collection);
    3. Fast Draining: Push the loaded drainer to the waste oil recycling area, activate the 12V pump – 55L oil drains in 3.7 minutes;
    4. Batch Completion: With 2 YD44-021C units, 12 buses are serviced in 4.5 hours (battery lasts for 6 cycles per unit, no mid-service charging needed).
    Effect: Cordless design avoids power cord tangles; fast pumping cuts total time by 30%; low profile fits all buses without modification.

2. Coach Repair at Highway Service Areas

Scenario Requirement: A tour coach breaks down at a highway service area, needing emergency 40L engine oil replacement. No power supply is available; ground is gravel; coach has 17cm ground clearance.
Operation Process:


  1. On-Site Deployment: Load the pre-charged YD44-021C into the service truck, transport to the coach, push it over gravel (casters handle small bumps) under the coach;
    2. Oil Collection: Collect 40L waste oil in 8 minutes, using the liquid level indicator to avoid overflow;
    3. Waste Disposal: Activate the pump to drain 40L oil into a portable waste tank (3 minutes), then refill the coach with new oil;
    4. Cleanup: Wipe the tank surface, push the drainer back to the service truck.
    Effect: Cordless battery works without power; low profile accesses the coach’s oil port; heavy-duty casters adapt to gravel ground.

3. Low-Chassis Truck Fleet Maintenance

Scenario Requirement: A logistics company maintains 8 low-chassis delivery trucks (each needing 30L transmission oil collection) in a 20㎡ outdoor yard. Temperature is -5℃; no power nearby.
Operation Process:


  1. Cold-Weather Prep: Confirm YD44-021C’s battery works at -5℃ (no freezing), push the drainer to each truck;
    2. Collection & Draining: Collect 30L oil per truck (6 minutes), drain to the recycling tank (2 minutes) – pump operates smoothly in cold weather;
    3. Efficiency: 8 trucks are serviced in 2.5 hours; battery still has 40% charge left after use.
    Effect: Temperature resistance handles cold outdoor conditions; cordless design fits outdoor yards; fast pumping meets fleet maintenance deadlines.

IV. Frequently Asked Questions (FAQ)

Q1: The 12V pump suddenly stops working during use. How to troubleshoot?

A1: Common causes and solutions: 1) Low Battery: Check the battery indicator (if equipped) – if low, recharge for 4 hours (use the included 12V charger); 2) Clogged Inlet: Turn off the pump, disconnect the oil inlet hose, and remove debris (e.g., metal shavings) with a thin wire; 3) Overheating Protection: The pump has a built-in overheat protector – if it stops after 10+ minutes of continuous use, let it cool for 5 minutes before restarting. Avoid running the pump dry (without oil) to prevent damage.

Q2: Can the battery be replaced when it reaches the end of its life?

A2: Yes. The 12V DC battery is replaceable: 1) Purchase a compatible 12V lead-acid battery (capacity ≥12Ah) from the manufacturer or authorized suppliers (ensure size matches the pump’s battery compartment); 2) Disconnect the old battery’s positive/negative wires (note polarity), remove it, and install the new battery (reconnect wires correctly); 3) Charge the new battery fully (4 hours) before use. Replacing the battery extends the drainer’s service life by 3-5 years.

Q3: The tank’s liquid level indicator is covered with oil and hard to read. How to clean it?

A3: Residue buildup is easy to fix: 1) Empty the tank completely, then fill it with 5L warm water + 100ml neutral detergent (e.g., dish soap); 2) Close the drain valve, shake the tank gently for 1 minute to dissolve oil residue on the indicator; 3) Drain the soapy water, rinse the tank with clean water 2-3 times, and dry it with a clean cloth. Avoid using abrasive tools (e.g., steel wool) as they may scratch the indicator surface.

Q4: Is the drainer suitable for other liquids like anti-freeze or diesel?

A4: No. It is designed only for waste vehicle oil (engine oil, transmission oil). Anti-freeze contains ethylene glycol, which may corrode the pump’s internal seals and the HDPE tank over time; diesel is highly flammable, and the 12V pump’s electrical components pose a fire risk. Using non-specified liquids will void the warranty and may cause equipment failure or safety hazards.
