5T Capacity Hydraulic Floor Jack with 55.91 Long Chassis and T-Bar Handle Locking Mechanism
5T Capacity Hydraulic Floor Jack with 55.91 Long Chassis and T-Bar Handle Locking Mechanism
5T Capacity Hydraulic Floor Jack with 55.91 Long Chassis and T-Bar Handle Locking Mechanism
5T Capacity Hydraulic Floor Jack with 55.91 Long Chassis and T-Bar Handle Locking Mechanism
Specifications
Model :
YD20-004
Model Number :
YD20-004
Chassis / Wheels :
55.91" / 1420mm Long Chassis; 4" / 100mm Reinforced Steel Wheels
Supply Ability :
500PCS/MONTH
Handle / Valve :
T-Bar Handle with Locking Mechanism and Air Release Valve
Delivery Time :
30-45DAYS
Min Height :
5.51" / 140mm
MOQ :
50pcs
Packaging Details :
Carton Box or Crate
Max Height :
22.64" / 575mm
Payment Terms :
T/T
Type :
Long Chassis Service Jack / Hydraulic Floor Jack
Certification :
CE
Capacity :
5T
Place of Origin :
Zhejiang，China
Product Name :
5T Long Chassis Service Jack YD20-004
Brand Name :
YEEDA
Description
5T Long Chassis Service Jack YD20-004 Hydraulic Garage Floor Jack with T-Bar Handle
5T Capacity Hydraulic Floor Jack with 55.91

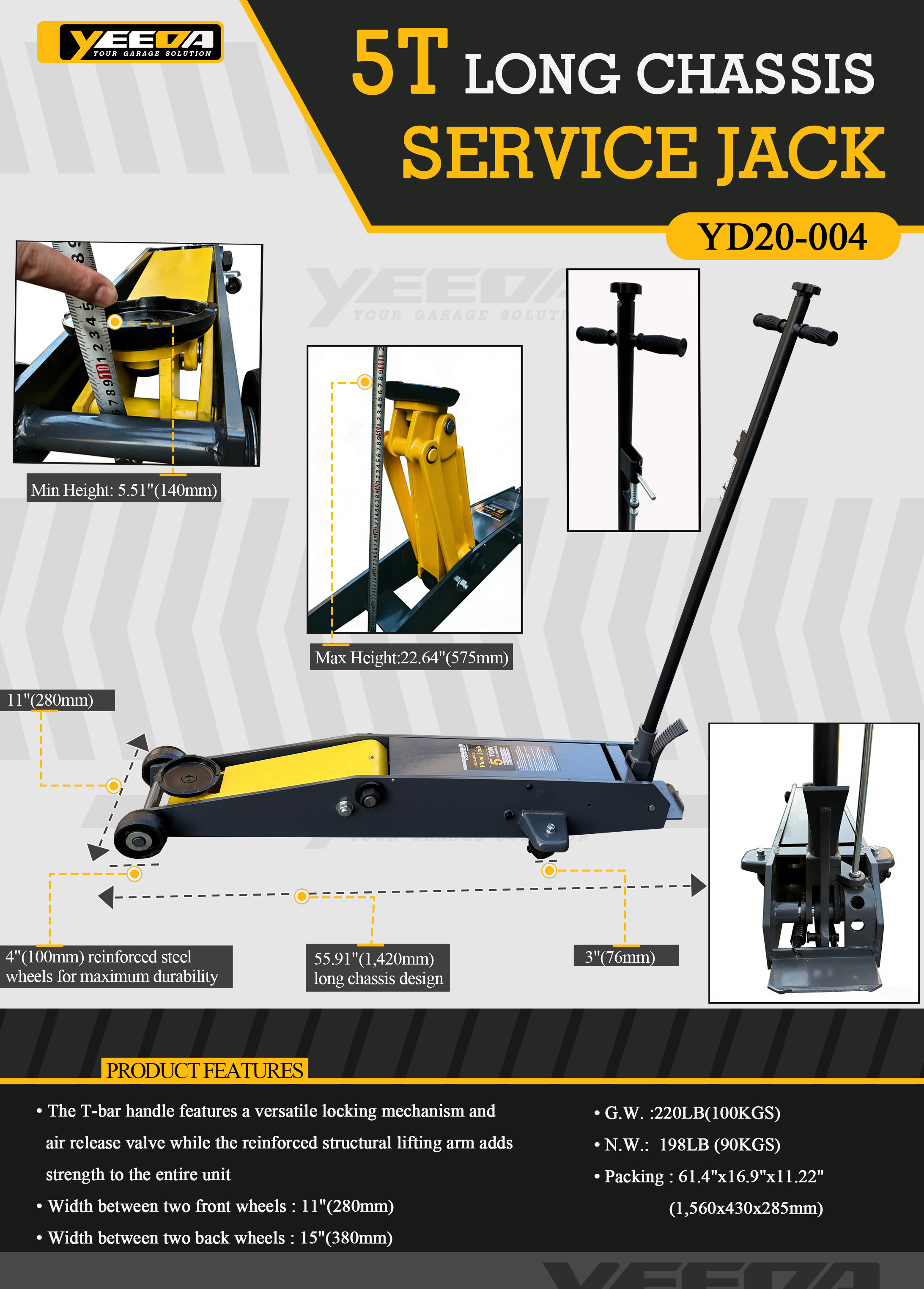

This 5T long chassis service jack is designed for garage and workshop vehicle lifting. Model YD20-004 features a long chassis design at 55.91" / 1420mm and 4" / 100mm reinforced steel wheels for maximum durability. The T-bar handle features a versatile locking mechanism and air release valve, while the reinforced structural lifting arm adds strength to the entire unit.

Height range shown: min height 5.51" / 140mm, max height 22.64" / 575mm. Other dimensions: front wheel width 11" / 280mm, back wheel width 15" / 380mm, rear wheel/component reference 3" / 76mm. Weight and packing: G.W. 220LB / 100KGS, N.W. 198LB / 90KGS, packing size 61.4 x 16.9 x 11.22" / 1560 x 430 x 285mm.

Product Parameters
Item Specification
Model YD20-004
Product Name 5T Long Chassis Service Jack
Type Hydraulic Service / Floor Jack
Capacity 5T
Min Height 5.51" / 140mm
Max Height 22.64" / 575mm
Chassis Length 55.91" / 1420mm
Front Wheel Width 11" / 280mm
Back Wheel Width 15" / 380mm
Wheel Size 4" / 100mm Reinforced Steel Wheels
Rear Reference 3" / 76mm
Handle T-Bar Handle with Locking Mechanism and Air Release Valve
Structure Reinforced Structural Lifting Arm
G.W. 220LB / 100KGS
N.W. 198LB / 90KGS
Packing Size 61.4 x 16.9 x 11.22" / 1560 x 430 x 285mm
Application Garage Vehicle Service / Lifting
Key Features
  • 5T long chassis service jack for garage use
  • 55.91" / 1420mm long chassis design
  • 4" / 100mm reinforced steel wheels for maximum durability
  • T-bar handle with locking mechanism and air release valve
  • Reinforced structural lifting arm for added strength
  • Min height 5.51" / 140mm, max height 22.64" / 575mm
  • Front wheel width 11" / 280mm, back wheel width 15" / 380mm
  • G.W. 220LB / 100KGS, N.W. 198LB / 90KGS
Application

This 5T long chassis service jack is suitable for garages and workshops to lift vehicles during maintenance and repair. The long chassis, reinforced wheels, T-bar handle, and structural lifting arm support stable and controlled lifting.

Product Questions and Answers
What is the model and capacity?
Model YD20-004, 5T capacity.
What type of jack is it?
Long chassis service jack / hydraulic floor jack.
What is the lifting height range?
Min height 5.51" / 140mm, max height 22.64" / 575mm.
What chassis and wheel features are shown?
55.91" / 1420mm long chassis design; 4" / 100mm reinforced steel wheels for maximum durability.
What does the handle feature?
T-bar handle with a versatile locking mechanism and air release valve.
What structural feature adds strength?
Reinforced structural lifting arm.
What are the wheel widths?
Width between two front wheels: 11" / 280mm. Width between two back wheels: 15" / 380mm.
What are the weight and packing details?
G.W. 220LB / 100KGS, N.W. 198LB / 90KGS. Packing size 61.4 x 16.9 x 11.22" / 1560 x 430 x 285mm.
Where is it used?
Garages and workshops for vehicle service and lifting.
