3 Ton Triple Bag Air Jack with Squeeze-Grip Release and Long/Short Handle Options for Pneumatic Lifting
3 Ton Triple Bag Air Jack with Squeeze-Grip Release and Long/Short Handle Options for Pneumatic Lifting
3 Ton Triple Bag Air Jack with Squeeze-Grip Release and Long/Short Handle Options for Pneumatic Lifting
3 Ton Triple Bag Air Jack with Squeeze-Grip Release and Long/Short Handle Options for Pneumatic Lifting
Specifications
MOQ :
50pcs
Packaging Details :
Carton Box or Crate
Payment Terms :
T/T
Model Number :
YD21-023A / YD21-023B
Supply Ability :
500PCS/MONTH
Delivery Time :
30-45DAYS
Brand Name :
YEEDA
Certification :
CE
Place of Origin :
Zhejiang，China
Description
3 Ton Triple Bag Air Jack YD21-023A-B Pneumatic Air Bag Lift with Long/Short Handle
3 Ton Triple Bag Air Jack with Squeeze-Grip Release and Long/Short Handle Options for Pneumatic Lifting

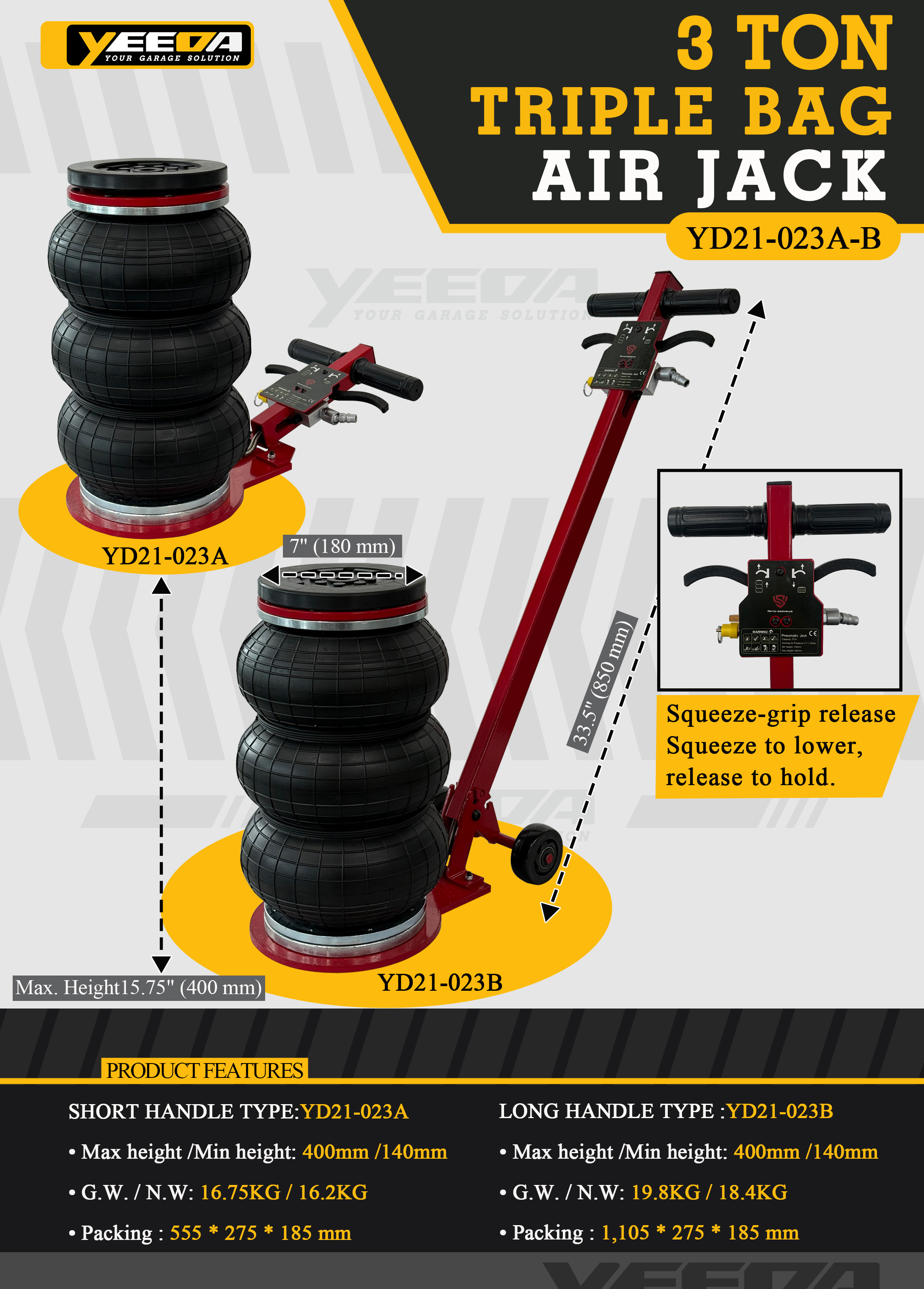

This 3 ton triple bag air jack is a pneumatic lifting tool for vehicle service. Model YD21-023A-B is available as a short handle type YD21-023A and a long handle type YD21-023B. Both share the same lifting range: max height 15.75" / 400mm, min height 140mm. The long handle measures 33.5" / 850mm, while the short handle version shows a 7" / 180mm reference. The squeeze-grip release lets the user squeeze to lower and release to hold.
Product weights and packing: YD21-023A G.W. 16.75KG / N.W. 16.2KG, packing 555 x 275 x 185mm. YD21-023B G.W. 19.8KG / N.W. 18.4KG, packing 1,105 x 275 x 185mm.
Product Parameters
Item YD21-023A (Short Handle) YD21-023B (Long Handle)
Model YD21-023A YD21-023B
Product Name 3 Ton Triple Bag Air Jack 3 Ton Triple Bag Air Jack
Capacity 3 Ton 3 Ton
Max Height 15.75" / 400mm 15.75" / 400mm
Min Height 140mm 140mm
Handle / Reference Short Handle, 7" / 180mm Long Handle, 33.5" / 850mm
Release Control Squeeze-Grip Release Squeeze-Grip Release
G.W. 16.75KG 19.8KG
N.W. 16.2KG 18.4KG
Packing Size 555 x 275 x 185mm 1,105 x 275 x 185mm
Key Features
  • 3 ton triple bag air jack for pneumatic vehicle lifting
  • Available in short handle YD21-023A and long handle YD21-023B
  • Max height 15.75" / 400mm, min height 140mm
  • Squeeze-grip release: squeeze to lower, release to hold
  • Triple bag air lift design
  • Long handle 33.5" / 850mm; short handle reference 7" / 180mm
  • Suitable for garage/workshop air jack use
Application
This 3 ton triple bag air jack is suitable for garages and workshops when lifting vehicles using compressed air. The triple bag design, handle options, and squeeze-grip control help with controlled lifting and lowering during service work.
Product Questions and Answers
What is the model and capacity?
YD21-023A-B, 3 ton capacity.
What types are shown?
Short handle type YD21-023A and long handle type YD21-023B.
What is the lift range?
Max height 15.75" / 400mm, min height 140mm.
How does the release work?
Squeeze-grip release: squeeze to lower, release to hold.
What are the handle details?
Long handle 33.5" / 850mm on YD21-023B; short handle reference 7" / 180mm on YD21-023A.
What are the weights and packing sizes?
YD21-023A: G.W. 16.75KG, N.W. 16.2KG, packing 555 x 275 x 185mm. YD21-023B: G.W. 19.8KG, N.W. 18.4KG, packing 1,105 x 275 x 185mm.
Where is it used?
Garages and workshops for pneumatic vehicle lifting/service.
