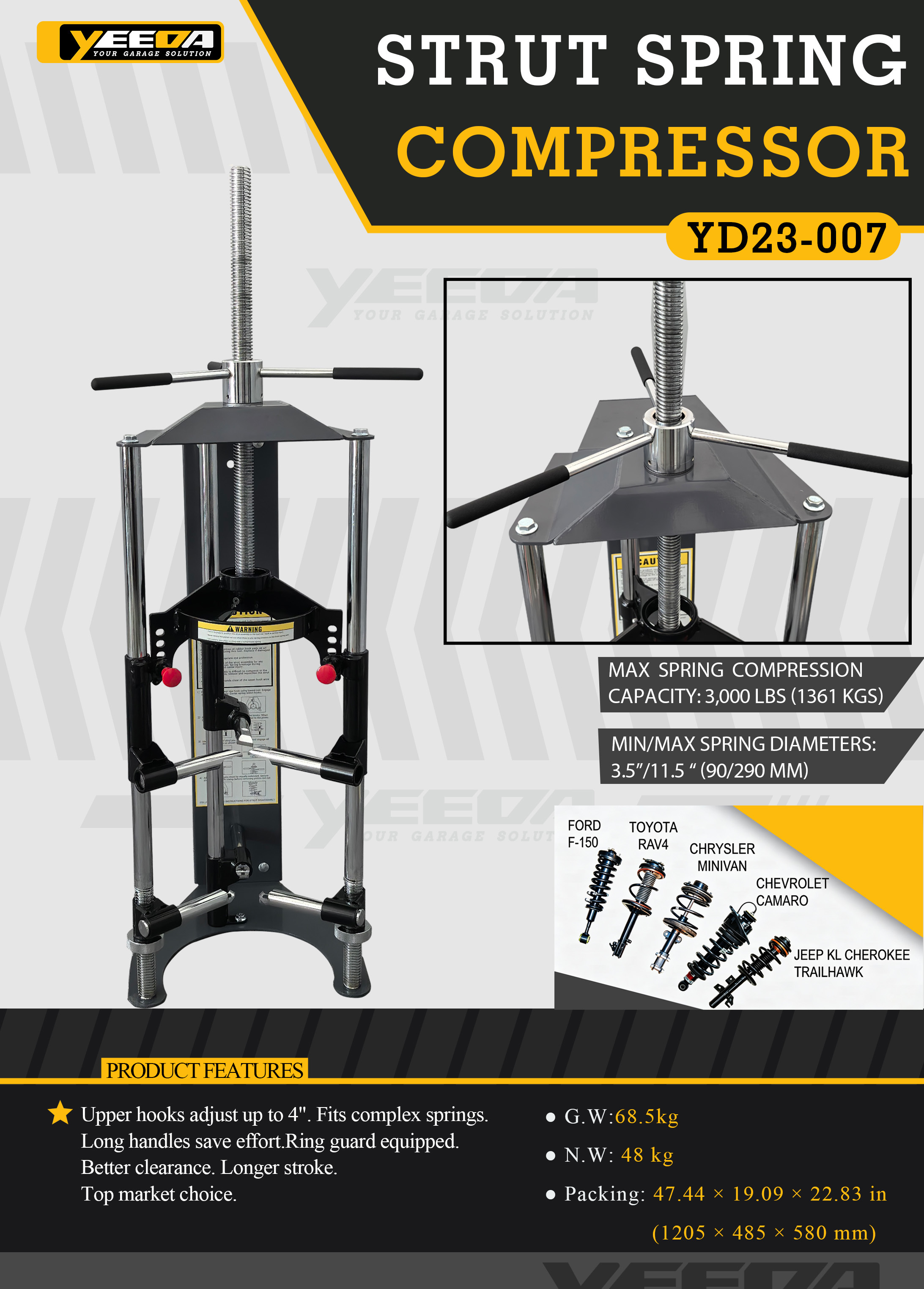

Strut Spring Compressor YD23-007 with 3000LBS Max Compression 3.5-11.5 Inch Spring Diameter Range and Long Handles
Strut Spring Compressor YD23-007 with 3000LBS Max Compression 3.5-11.5 Inch Spring Diameter Range and Long Handles
Strut Spring Compressor YD23-007 with 3000LBS Max Compression 3.5-11.5 Inch Spring Diameter Range and Long Handles
Strut Spring Compressor YD23-007 with 3000LBS Max Compression 3.5-11.5 Inch Spring Diameter Range and Long Handles
Specifications
Model Number :
YD23-007
Model :
YD23-007
Supply Ability :
500PCS/MONTH
Handle / Stroke Feature :
Long Handles, Longer Stroke
MOQ :
50pcs
Packaging Details :
Carton Box or Crate
Spring Diameter Range :
3.5"–11.5" / 90–290 mm
Delivery Time :
30-45DAYS
Weight / Packing :
G.W. 68.5kg / N.W. 48kg; 1205 x 485 x 580 mm
Payment Terms :
T/T
Upper Hook Adjustment :
Up to 4"
Brand Name :
YEEDA
Product Name :
Strut Spring Compressor YD23-007
Certification :
CE
Type :
Strut / Coil Spring Compressor
Place of Origin :
Zhejiang，China
Max Compression Capacity :
3,000 LBS / 1361 KGS
Description
Strut Spring Compressor YD23-007 3000LBS Coil Spring Tool with Ring Guard
Strut Spring Compressor YD23-007 with 3000LBS Max Compression 3.5-11.5 Inch Spring Diameter Range and Long Handles

This strut spring compressor is made for coil and strut spring service in garages and workshops. Model YD23-007 has a max spring compression capacity of 3,000 LBS / 1361 KGS and works with spring diameters from 3.5" to 11.5" / 90 to 290 mm. Upper hooks adjust up to 4" to fit complex springs. It uses long handles to save effort, offers a longer stroke and better clearance, and comes with a ring guard equipped. Vehicle references shown include Ford F-150, Toyota RAV4, Chrysler minivan, Chevrolet Camaro, Jeep KL Cherokee, and Trailhawk.

Weight and packing: G.W. 68.5kg, N.W. 48kg, packing 47.44 x 19.09 x 22.83 in / 1205 x 485 x 580 mm.

Product Specifications
Item Specification
Model YD23-007
Product Name Strut Spring Compressor
Type Strut / Coil Spring Compressor
Max Compression Capacity 3,000 LBS / 1361 KGS
Spring Diameter Range 3.5"-11.5" / 90-290 mm
Upper Hook Adjustment Up to 4"
Handle / Stroke Long Handles, Longer Stroke
Design / Safety Ring Guard Equipped, Better Clearance
Fitment References Ford F-150, Toyota RAV4, Chrysler Minivan, Chevrolet Camaro, Jeep KL Cherokee, Trailhawk
G.W. 68.5 kg
N.W. 48 kg
Packing Size 47.44 x 19.09 x 22.83 in / 1205 x 485 x 580 mm
Key Features
  • Strut spring compressor for garage and workshop use
  • Max compression capacity 3,000 LBS / 1361 KGS
  • Fits spring diameters 3.5"-11.5" / 90-290 mm
  • Upper hooks adjust up to 4" for complex springs
  • Long handles save effort with longer stroke
  • Better clearance and ring guard equipped
  • Top market choice
  • G.W. 68.5kg, N.W. 48kg
Application

This strut spring compressor is suitable for compressing strut and coil springs during suspension maintenance and repair. It is shown for use with vehicle references such as Ford F-150, Toyota RAV4, Chrysler minivan, Chevrolet Camaro, Jeep KL Cherokee, and Trailhawk.

Product Questions and Answers
What is the model and product name?
Model YD23-007, Strut Spring Compressor.
What is the max compression capacity?
3,000 LBS / 1361 KGS.
What spring diameters does it fit?
3.5" to 11.5" / 90 to 290 mm.
How much do the upper hooks adjust?
Up to 4", to fit complex springs.
What handle and stroke features are shown?
Long handles to save effort, longer stroke, better clearance.
Is there a safety feature?
Ring guard equipped.
What are the weight and packing details?
G.W. 68.5kg, N.W. 48kg. Packing 47.44 x 19.09 x 22.83 in / 1205 x 485 x 580 mm.
What vehicle references are shown?
Ford F-150, Toyota RAV4, Chrysler minivan, Chevrolet Camaro, Jeep KL Cherokee, Trailhawk.
Where is it used?
Garages and workshops for strut and coil spring compression.
