10T Capacity Long Chassis Service Jack with 61 Chassis and 5 Reinforced Steel Wheels
10T Capacity Long Chassis Service Jack with 61 Chassis and 5 Reinforced Steel Wheels
10T Capacity Long Chassis Service Jack with 61 Chassis and 5 Reinforced Steel Wheels
10T Capacity Long Chassis Service Jack with 61 Chassis and 5 Reinforced Steel Wheels
Specifications
Model Number :
YD20-005
Model :
YD20-005
Supply Ability :
500PCS/MONTH
Wheels :
5" Reinforced Steel Wheels
Delivery Time :
30-45DAYS
Min/Max Height :
6.3" / 160mm – 22.64" / 575mm
MOQ :
50pcs
Packaging Details :
Carton Box or Crate
Handle Length :
48.43" / 1230mm
Payment Terms :
T/T
Chassis Length :
61" / 1550mm
Certification :
CE
Type :
Long Chassis Service / Floor Jack
Place of Origin :
Zhejiang，China
Capacity :
10T
Brand Name :
YEEDA
Product Name :
10T Long Chassis Service Jack YD20-005
Description
10T Long Chassis Service Jack YD20-005 Heavy Duty Hydraulic Floor Jack
10T Capacity Long Chassis Service Jack with 61

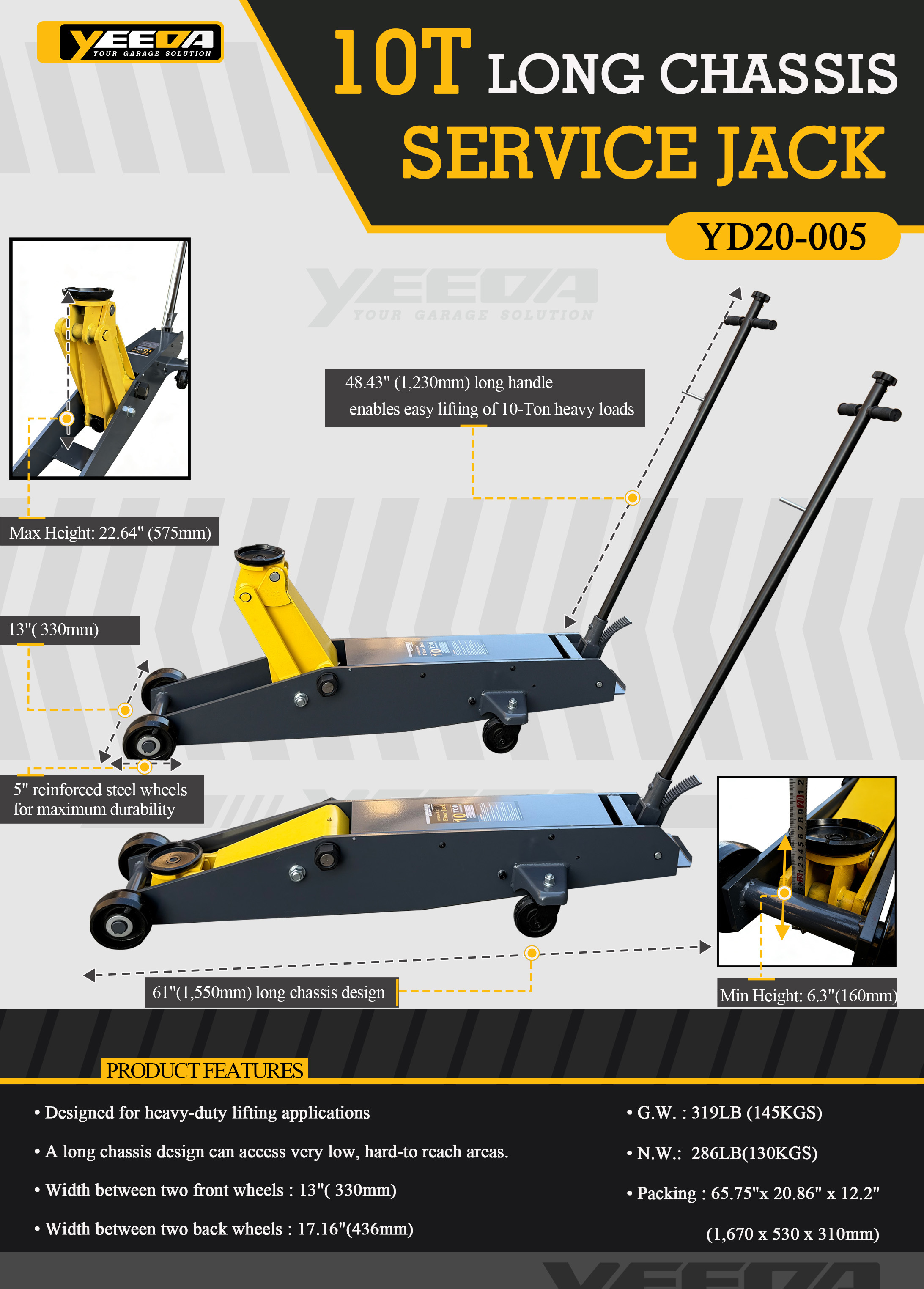

This 10T long chassis service jack is designed for heavy-duty lifting applications. Model YD20-005 features a 61" / 1550mm long chassis design that can access very low, hard-to-reach areas, and 5" reinforced steel wheels for maximum durability. The 48.43" / 1230mm long handle enables easy lifting of 10-Ton heavy loads.

Height range shown: min height 6.3" / 160mm, max height 22.64" / 575mm. Wheel widths: front wheel width 13" / 330mm, back wheel width 17.16" / 436mm. Weight and packing: G.W. 319LB / 145KGS, N.W. 286LB / 130KGS, packing size 65.75 x 20.86 x 12.2" / 1670 x 530 x 310mm.

Product Parameters
Item Specification
Model YD20-005
Product Name 10T Long Chassis Service Jack
Type Long Chassis Service Jack / Floor Jack
Capacity 10T
Application Heavy-Duty Lifting
Handle Length 48.43" / 1230mm
Chassis Length 61" / 1550mm
Min Height 6.3" / 160mm
Max Height 22.64" / 575mm
Wheels 5" Reinforced Steel Wheels
Front Wheel Width 13" / 330mm
Back Wheel Width 17.16" / 436mm
G.W. 319LB / 145KGS
N.W. 286LB / 130KGS
Packing Size 65.75 x 20.86 x 12.2" / 1670 x 530 x 310mm
Key Features
  • 10T long chassis service jack for heavy-duty lifting
  • 61" / 1550mm long chassis to access low, hard-to-reach areas
  • 5" reinforced steel wheels for maximum durability
  • 48.43" / 1230mm long handle for easier lifting of 10-Ton loads
  • Min height 6.3" / 160mm, max height 22.64" / 575mm
  • Front wheel width 13" / 330mm, back wheel width 17.16" / 436mm
  • G.W. 319LB / 145KGS, N.W. 286LB / 130KGS
Application

This 10T long chassis service jack is suitable for garages and workshops where heavy-duty vehicle lifting is needed. The long chassis, reinforced wheels, and long handle help with stable positioning and lifting in low-clearance or heavy-load service situations.

Product Questions and Answers
What is the model and capacity?
Model YD20-005, 10T capacity.
What is it designed for?
Heavy-duty lifting applications.
What are the key dimensions?
Chassis length 61" / 1550mm, handle length 48.43" / 1230mm, min height 6.3" / 160mm, max height 22.64" / 575mm.
What wheels does it have?
5" reinforced steel wheels for maximum durability.
What are the wheel widths?
Width between two front wheels: 13" / 330mm. Width between two back wheels: 17.16" / 436mm.
What are the weight and packing details?
G.W. 319LB / 145KGS, N.W. 286LB / 130KGS. Packing size 65.75 x 20.86 x 12.2" / 1670 x 530 x 310mm.
Where is it used?
Garages and workshops for heavy-duty vehicle service and lifting.
