450/12702 CARRIER ANNULUS FOR JCB BACKHOE 3CX
450/12702 CARRIER ANNULUS FOR JCB BACKHOE 3CX
450/12702 CARRIER ANNULUS FOR JCB BACKHOE 3CX
450/12702 CARRIER ANNULUS FOR JCB BACKHOE 3CX
450/12702 CARRIER ANNULUS FOR JCB BACKHOE 3CX
450/12702 CARRIER ANNULUS FOR JCB BACKHOE 3CX
Specifications
Brand Name :
TCY
Model Number :
JCB BACKHOE 3CX
Place of Origin :
Made in china
MOQ :
1
Payment Terms :
T/T,Alipay,Wechat ...etc., Western Union, MoneyGram, D/P
Delivery Time :
2-3/Negotiate
Packaging Details :
Wooden Case
Model :
JCB BACKHOE 3CX
Product Name: :
Carrier Annulus
Part NO. :
450/12702
MOQ :
1PCS
Weight :
2KG
Condition :
new
Description

450/12702 CARRIER ANNULUS FOR JCB BACKHOE 3CX
Model: 3CX Part name:Carrier Annulus
Part NO.:450/12702 MOQ:1PCS
Packing:Wooden case Place of Origin:China
Aftersale service provided:Online support Apply To:JCB BACKHOE 3CX
Delivery Time: 1-3 days Or negotiate Note: Other models can be consulted online

Product

450/12702 CARRIER ANNULUS FOR JCB BACKHOE 3CX

450/12702 CARRIER ANNULUS FOR JCB BACKHOE 3CX

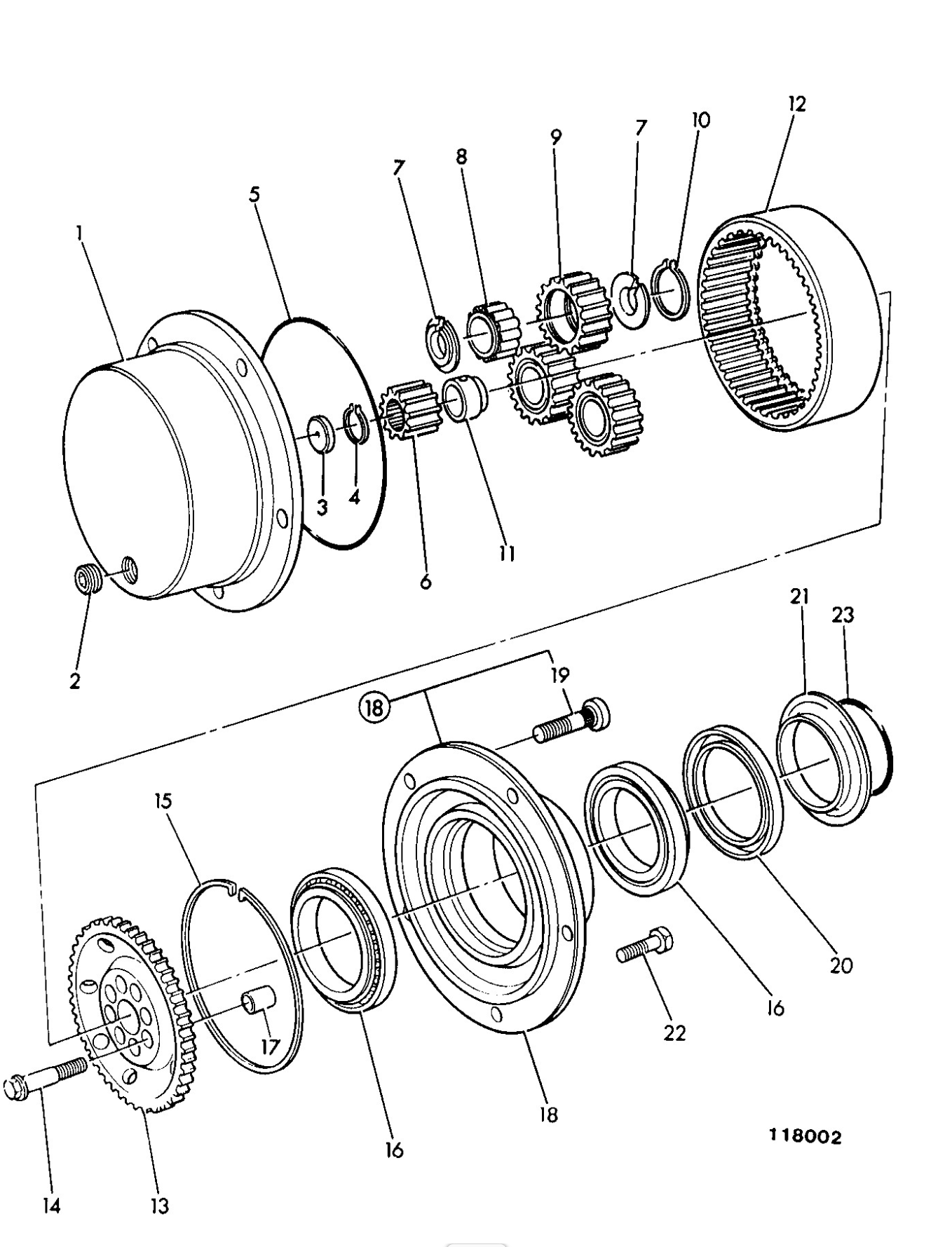

Pos. Part No Qty Parts name
1 450/12401 [2] Carrier planetary hub
2 826/00425 [2] Plug tapered 3/4"-14PTF
3 450/10208 [2] Pad Thrust
4 821/00216 [2] Circlip external
5 828/00196 [2] O Ring
6 450/12403 [2] Gear Sun
7 821/00209 [12] Circlip
8 907/50200 [6] Bearing Roller, Double Row
9 450/10206 [6] Gear Planet
10 2203/0054 [6] Circlip
11 921/50000 [2] Spacer 32mm long
12 450/10205 [2] Gear Annulus Ring
13 450/12702 [1] Carrier Annulus
14 826/01060 [16] Bolt M14 x 70mm long
15 821/00210 [2] Circlip Internal Square Section
16 907/52200 [4] Bearing Taper
17 450/12703 [8] Dowel Hollow
18 450/11100 [2] Hub c/w studs
19 826/00923 [5] Stud Wheel
20 904/50033 [2] Seal - Cassette
22 1321/0407Z [4] Bolt Coated M10 x 25

Exhibition

450/12702 CARRIER ANNULUS FOR JCB BACKHOE 3CX

Company Introduction

450/12702 CARRIER ANNULUS FOR JCB BACKHOE 3CX

Packaging

450/12702 CARRIER ANNULUS FOR JCB BACKHOE 3CX


FAQ

Q:What is your sample policy?

A:We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q:What are your main products?

A:We focus on spare parts for excavator hydraulic system, such as travel motors, swing motors, travel gearboxes, swing gearboxes, gear parts, hydraulic pumps.

If you need other excavator accessories, we can also supply according to your.

Q:How long is the warranty period of the product?
A:The warranty time is 6 months, depending on the project situation; we do not provide the warranty time for original and second-hand products.

Q:How do I order?

A:You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.

Q:How do I pay?
A:You can pay through T/T, XT, wechat,alipay trade guarantee or negotiate payment.
