CRAWLER EXCAVATOR 39Q8-12101 SWING REDUCTION GEAR 38K8-10150 38K8-11100 SWING MOTOR FOR HX300L HX300 R290-9 R300-9
CRAWLER EXCAVATOR 39Q8-12101 SWING REDUCTION GEAR 38K8-10150 38K8-11100 SWING MOTOR FOR HX300L HX300 R290-9 R300-9
CRAWLER EXCAVATOR 39Q8-12101 SWING REDUCTION GEAR 38K8-10150 38K8-11100 SWING MOTOR FOR HX300L HX300 R290-9 R300-9
CRAWLER EXCAVATOR 39Q8-12101 SWING REDUCTION GEAR 38K8-10150 38K8-11100 SWING MOTOR FOR HX300L HX300 R290-9 R300-9
CRAWLER EXCAVATOR 39Q8-12101 SWING REDUCTION GEAR 38K8-10150 38K8-11100 SWING MOTOR FOR HX300L HX300 R290-9 R300-9
CRAWLER EXCAVATOR 39Q8-12101 SWING REDUCTION GEAR 38K8-10150 38K8-11100 SWING MOTOR FOR HX300L HX300 R290-9 R300-9
Specifications
Brand Name :
TCY
Model Number :
HX300
Place of Origin :
Made in china
MOQ :
1
Price :
500-2000
Payment Terms :
T/T,Alipay,Wechat ...etc.
Delivery Time :
2-3/Negotiate
Packaging Details :
Wooden Case
Model :
HX300
Product Name: :
Swing Reduction Gearbox
Part Number: :
39Q8-12101
Apply For :
HX300L HX300 R290-9 R300-9
MOQ :
1PCS
Condition :
new
Weight :
350KG
Delivery Port :
guangzhou ningbo yiwu
Description

TCY CRAWLER EXCAVATOR 39Q8-12101 SWING REDUCTION GEAR 38K8-10150 38K8-11100 SWING MOTOR FOR HX300L HX300 R290-9 R300-9

CRAWLER EXCAVATOR 39Q8-12101 SWING REDUCTION GEAR 38K8-10150 38K8-11100 SWING MOTOR FOR HX300L HX300 R290-9 R300-9
Model:HX300 Part name:Swing Reduction Gearbox
Part NO.:39Q8-12101 MOQ:1PCS
Packing:Wooden case Weight:350KG
Aftersale service provided:Online support Apply To:Excavator Swing Drive
Delivery Time: 1-3 days Or negotiate Note: Other models can be consulted online

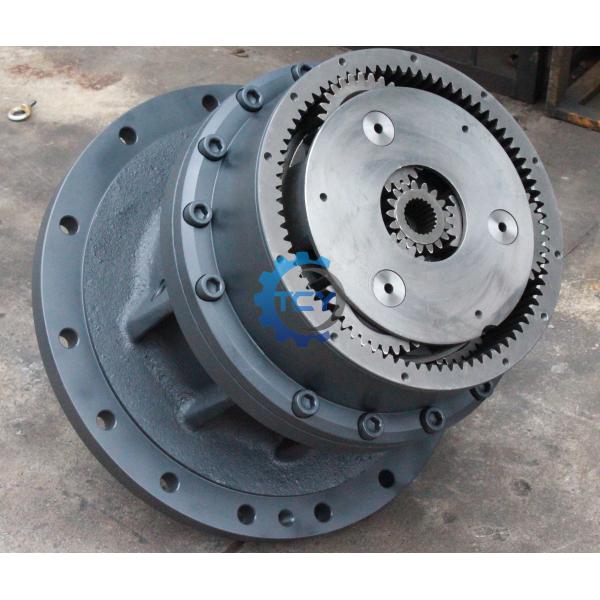

Product picture

CRAWLER EXCAVATOR 39Q8-12101 SWING REDUCTION GEAR 38K8-10150 38K8-11100 SWING MOTOR FOR HX300L HX300 R290-9 R300-9

CRAWLER EXCAVATOR 39Q8-12101 SWING REDUCTION GEAR 38K8-10150 38K8-11100 SWING MOTOR FOR HX300L HX300 R290-9 R300-9

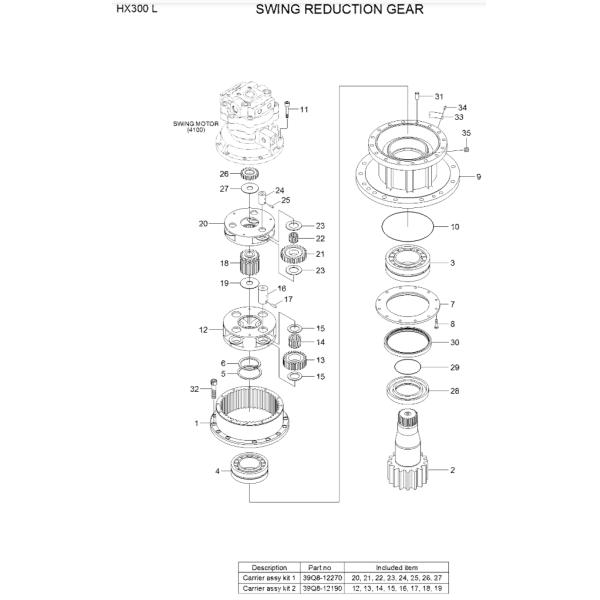

Pos. Part No QTY Parts Name
*-2. 39Q8-12101 [1] SWING REDUCTION GEA
1. 39Q8-12110 [1] GEAR RING
2. 39Q8-12120 [1] SHAFT-DRIVE
3. 39Q8-12130 [1] BEARING-SPH.ROLLER
4. 39Q8-12140 [1] BEARING-SPH.ROLLER
5. 39Q8-12150 [1] PLATE-THRUST
6. 39Q8-12160 [1] RING-SNAP
7. 39Q8-12170 [1] COVER
8. S017-120306 [12] BOLT-HEX
9. 39Q8-12180 [1] CASING
10. S632-290001 [1] O-RING
11. S109-100306 [12] BOLT-SOCKET
K12. 39Q8-12201 [1] CARRIER NO.2
K13. 39Q8-12211 [4] GEAR-PLANETARY NO.2
K14. 39Q8-12220 [4] BEARING-NEEDLE NO.2
K15. 39Q8-12231 [8] WASHER-THRUST NO.2
K16. 39Q8-12240 [4] PIN-CARRIER NO.2
K17. S472-910404 [4] PIN-SPRING
K18. 39Q8-12251 [1] GEAR-SUN NO.2
K19. 39Q8-12261 [1] PLATE-THRUST NO.2
K20. 39Q8-12281 [1] CARRIER NO.1
K21. 39Q8-12291 [3] GEAR-PLANETARY NO.1
K22. 39Q8-12300 [3] BEARING-NEEDLE NO.1
K23. 39Q8-12311 [6] WASHER-THRUST NO.1
K24. 39Q8-12320 [3] PIN-CARRIER NO.1
K25. S472-800404 [3] PIN-SPRING NO.1
K26. 39Q8-12331 [1] GEAR-SUN NO.1
K27. 39Q8-12341 [1] PLATE-THRUST NO.1
28. 39Q8-12350 [1] SLEEVE
29. S632-140001 [1] O-RING
30. 39Q6-12350 [1] SEAL-OIL
31. 39Q6-41450 [2] PIN-PARALLEL
32. S109-18050D [14] BOLT-SOCKET
33. 39Q8-12361 [1] NAME PLATE
34. 39Q6-41800 [2] RIVET
35. P220-430204 [1] PLUG-HEX
K. 39Q8-12270 [1] CARRIER ASSY KIT 1
K. 39Q8-12190 [1] CARRIER ASSY KIT 2

Company introduction

CRAWLER EXCAVATOR 39Q8-12101 SWING REDUCTION GEAR 38K8-10150 38K8-11100 SWING MOTOR FOR HX300L HX300 R290-9 R300-9

CRAWLER EXCAVATOR 39Q8-12101 SWING REDUCTION GEAR 38K8-10150 38K8-11100 SWING MOTOR FOR HX300L HX300 R290-9 R300-9

Packaging

CRAWLER EXCAVATOR 39Q8-12101 SWING REDUCTION GEAR 38K8-10150 38K8-11100 SWING MOTOR FOR HX300L HX300 R290-9 R300-9

CRAWLER EXCAVATOR 39Q8-12101 SWING REDUCTION GEAR 38K8-10150 38K8-11100 SWING MOTOR FOR HX300L HX300 R290-9 R300-9


FAQ

Q:What is your sample policy?

A:We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q:What are your main products?

A:We focus on spare parts for excavator hydraulic system, such as travel motors, swing motors, travel gearboxes, swing gearboxes, gear parts, hydraulic pumps.

If you need other excavator accessories, we can also supply according to your.

Q:How long is the warranty period of the product?
A:The warranty time is 6 months, depending on the project situation; we do not provide the warranty time for original and second-hand products.

Q:How do I order?

A:You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.

Q:How do I pay?
A:You can pay through T/T, XT, wechat,alipay trade guarantee or negotiate payment.
