31Q8-10141 31Q8-10142 31Q8-10142AR SWING REDUCTION GEAR FOR HYUNDAI R300LC-9A R300LC-9S R305LC-7
31Q8-10141 31Q8-10142 31Q8-10142AR SWING REDUCTION GEAR FOR HYUNDAI R300LC-9A R300LC-9S R305LC-7
31Q8-10141 31Q8-10142 31Q8-10142AR SWING REDUCTION GEAR FOR HYUNDAI R300LC-9A R300LC-9S R305LC-7
31Q8-10141 31Q8-10142 31Q8-10142AR SWING REDUCTION GEAR FOR HYUNDAI R300LC-9A R300LC-9S R305LC-7
31Q8-10141 31Q8-10142 31Q8-10142AR SWING REDUCTION GEAR FOR HYUNDAI R300LC-9A R300LC-9S R305LC-7
31Q8-10141 31Q8-10142 31Q8-10142AR SWING REDUCTION GEAR FOR HYUNDAI R300LC-9A R300LC-9S R305LC-7
31Q8-10141 31Q8-10142 31Q8-10142AR SWING REDUCTION GEAR FOR HYUNDAI R300LC-9A R300LC-9S R305LC-7
31Q8-10141 31Q8-10142 31Q8-10142AR SWING REDUCTION GEAR FOR HYUNDAI R300LC-9A R300LC-9S R305LC-7
Specifications
Brand Name :
TCY
Model Number :
R300LC-9A
Place of Origin :
Made in china
MOQ :
1
Price :
500-2000
Payment Terms :
T/T,Alipay,Wechat ...etc.
Delivery Time :
2-3/Negotiate
Packaging Details :
Wooden Case
Part Number: :
31Q8-10141 31Q8-10142 31Q8-10142AR
Model :
R300LC-9A
Product Name: :
Swing Reduction Gearbox
Apply For :
HYUNDAI EXCAVATOR
MOQ :
1PCS
Condition :
new
Weight :
280KG
Delivery Port :
guangzhou ningbo yiwu
Description

TCY 31Q8-10141 31Q8-10142 31Q8-10142AR SWING REDUCTION GEAR FOR HYUNDAI R300LC-9A R300LC-9S R305LC-7
Model:R300LC-9A Part name:Swing Reduction Gearbox
Part NO.:31Q8-10141 31Q8-10142 31Q8-10142AR MOQ:1PCS
Packing:Wooden case Weight:280KG
Aftersale service provided:Online support Apply To:Excavator Swing Drive
Delivery Time: 1-3 days Or negotiate Note: Other models can be consulted online

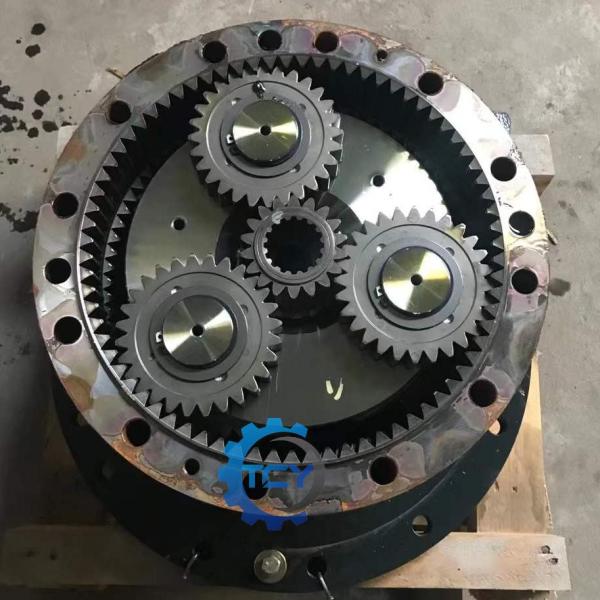

Product picture

31Q8-10141 31Q8-10142 31Q8-10142AR SWING REDUCTION GEAR FOR HYUNDAI R300LC-9A R300LC-9S R305LC-7

31Q8-10141 31Q8-10142 31Q8-10142AR SWING REDUCTION GEAR FOR HYUNDAI R300LC-9A R300LC-9S R305LC-7

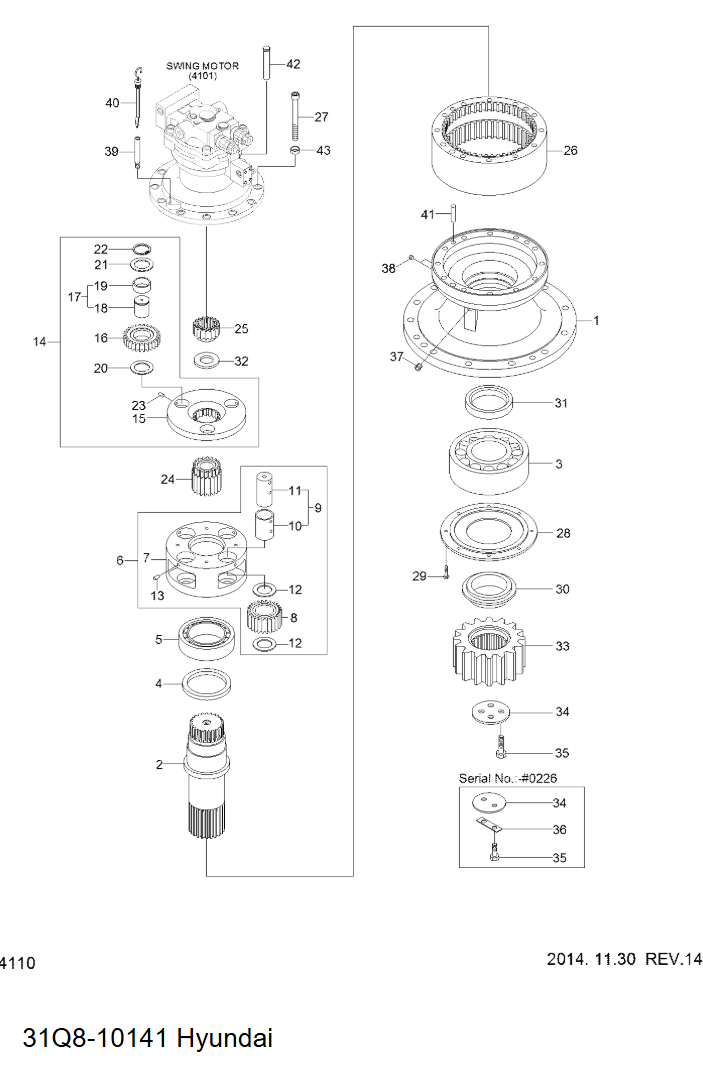

Pos. Part No Qty Parts name
*-2. 31Q8-10141 [1] SWING REDUCTION GEAR
*-2. 31Q8-10142 [1] SWING REDUCTION GEAR
*-2. 31Q8-10142AR [1] SWING REDUCTION GEAR
1. XKAQ-00451 [1] CASING
2. XKAQ-00760 [1] SHAFT-DRIVE
3. XKAQ-00146 [1] BEARING-ROLLER
4. XKAQ-00149 [1] SEAL-OIL
5. XKAQ-00027 [1] BEARING-ROLLER
6. XKAQ-00467 [1] CARRIER ASSY 2
7. XKAQ-00468 [1] CARRIER 2
8. XKAQ-00469 [4] GEAR-PLANET 2
9. XKAQ-00470 [4] PIN ASSY 2
N10. XKAQ-00471 [1] PIN 2
N11. XKAQ-00472 [1] BUSHING 2
12. XKAQ-00435 [8] WASHER-THRUST
13. XKAQ-00050 [4] PIN-SPRING
14. XKAQ-00473 [1] CARRIER ASSY 1
15. XKAQ-00453 [1] CARRIER 1
16. XKAQ-00454 [3] GEAR-PLANET 1
17. XKAQ-00440 [3] PIN ASSY 1
N18. XKAQ-00441 [3] PIN 1
N19. XKAQ-00079 [3] BUSHING 1
20. XKAQ-00417 [3] PLATE 1-SIDE
21. XKAQ-00416 [3] PLATE 2-SIDE
22. XKAQ-00041 [3] RING-STOP
23. XKAQ-00048 [3] PIN-SPRING
24. XKAQ-00455 [1] GEAR 2-SUN
25. XKAQ-00456 [1] GEAR 1-SUN
26. XKAQ-00457 [1] RING-GEAR
27. XKAQ-00466 [12] BOLT-SOCKET
28. XKAQ-00626 [1] COVER PLATE
29. XKAQ-00064 [8] BOLT-HEX
30. XKAQ-00627 [1] SPACER
31. XKAQ-00628 [1] RING-SPACER
32. XKAQ-00447 [1] PLATE 3-THRUST
33. XKAQ-00629 [1] GEAR-PINION
34. XKAQ-00761 [1] PLATE-LOCK
35. XKAQ-00756 [4] BOLT-HEX
37. XKAQ-00049 [1] PLUG
38. XKAQ-00066 [2] PLUG
39. XKAQ-00035 [1] PIPE-GAUGE
40. XKAQ-00034 [1] BAR-GAUGE
40. XKAQ-00985 [1] BAR-GAUGE
41. XKAQ-00072 [2] PIN-KNOCK
42. XKAQ-00143 [1] POST-AIR BREATHER
42. XKAQ-00800 [1] AIR BREATHER ASSY
N43. XKAQ-00631 [1] BUSHING 2

Company introduction

31Q8-10141 31Q8-10142 31Q8-10142AR SWING REDUCTION GEAR FOR HYUNDAI R300LC-9A R300LC-9S R305LC-7

31Q8-10141 31Q8-10142 31Q8-10142AR SWING REDUCTION GEAR FOR HYUNDAI R300LC-9A R300LC-9S R305LC-7

Packaging

31Q8-10141 31Q8-10142 31Q8-10142AR SWING REDUCTION GEAR FOR HYUNDAI R300LC-9A R300LC-9S R305LC-7

31Q8-10141 31Q8-10142 31Q8-10142AR SWING REDUCTION GEAR FOR HYUNDAI R300LC-9A R300LC-9S R305LC-7


FAQ

Q:What is your sample policy?

A:We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q:What are your main products?

A:We focus on spare parts for excavator hydraulic system, such as travel motors, swing motors, travel gearboxes, swing gearboxes, gear parts, hydraulic pumps.

If you need other excavator accessories, we can also supply according to your.

Q:How long is the warranty period of the product?
A:The warranty time is 6 months, depending on the project situation; we do not provide the warranty time for original and second-hand products.

Q:How do I order?

A:You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.

Q:How do I pay?
A:You can pay through T/T, XT, wechat,alipay trade guarantee or negotiate payment.
