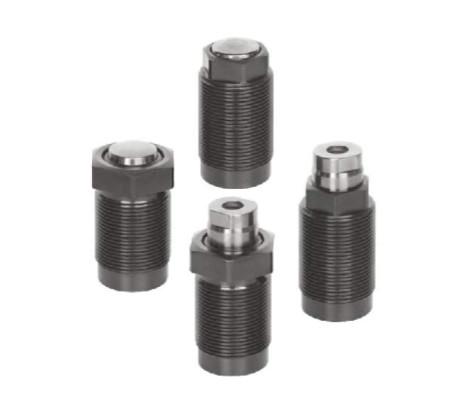

Small Threaded Stainless Steel Hydraulic Cylinder Single Acting Feature
Small Threaded Stainless Steel Hydraulic Cylinder Single Acting Feature
Specifications
Brand Name :
Jiayan
Model Number :
TC
Certification :
ISO9001:2008
Place of Origin :
Dongguan China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,PayPal
Supply Ability :
500 sets per week
Delivery Time :
7 days
Packaging Details :
poly bag and carton box
Material :
Carbon Steel
Max. Dia.of Piston :
25mm
Max. Stroke :
16mm
Max. Clamping Force :
2460kgs
Fluid :
Filtered Oil
Working Type :
single acting
Description

Compact Size Threaded Hydraulic Single Acting Cylinder Work Fixture Cylinder

Product Introduction

1.This threaded single acting hydraulic cylinder employs high-end oil seal and components to guarantee
no leakage effectively under high pressure clamping in long working time.
2.Compact body size can make it to be used in the restricted space in arrays.
3.This type of hydraulic cylinder is used for pushing out situation with return by spring, which can not be used

for pulling application
4. When installing, keep the contact angle between the pushing rod end and workpiece no larger than 10

degree
5. A leak-proof gasket is required to be placed under the bottom of the cylinder.

6. The SW2 has a large hexagonal body and piston rod is equipped with a dust wiper ring.

Small Threaded Stainless Steel Hydraulic Cylinder Single Acting Feature

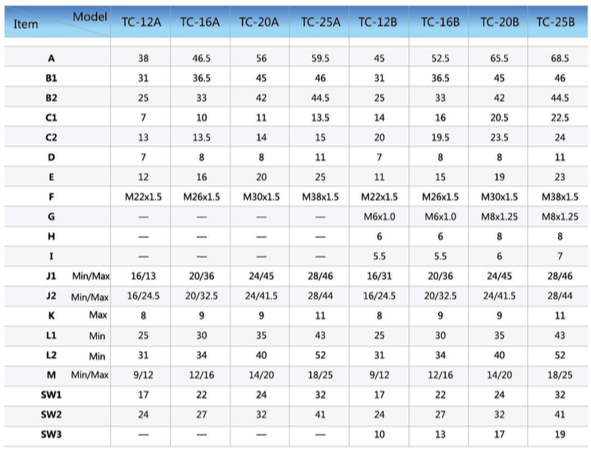

Product Specification

Piston Diameter 12 16 20 25
Total Stroke 10 12 15 16
Clamping Force 10kg/cm2 110 200 310 490
50kg/cm2 570 1010 1570 2460
Spring restoring force 2.8 5 7.8 12.3
Min.operation force kg/cm2 10 10 10 10
oil needed cc/10mm stroke 1.13 2.01 3.14 4.91
Fluid filtered hydraulic oil

Small Threaded Stainless Steel Hydraulic Cylinder Single Acting Feature

Small Threaded Stainless Steel Hydraulic Cylinder Single Acting Feature
