10 Ton Single Action Hydraulic Cylinders No Oil Leakage Compact Mounting Size
10 Ton Single Action Hydraulic Cylinders No Oil Leakage Compact Mounting Size
10 Ton Single Action Hydraulic Cylinders No Oil Leakage Compact Mounting Size
10 Ton Single Action Hydraulic Cylinders No Oil Leakage Compact Mounting Size
Specifications
Brand Name :
Jiayan
Model Number :
RKC
Certification :
ISO9001:2008
Place of Origin :
Dongguan China
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
300 sets per day
Delivery Time :
7 days
Piston diameter :
Φ12,Φ16,Φ20,Φ25
Max. operating pressure :
250 kgf/cm2
Min. operating pressure :
20 kgf/cm2
Warranty :
1 year (change new for free)
Description

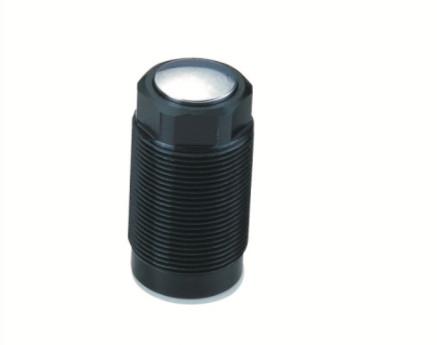

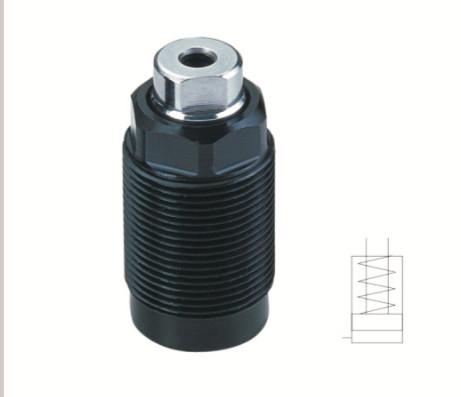

Threaded Single Acting Hydraulic Cylinder No Oil Leakage Compact Mounting Size Long Pressure Maintaining Time

FEATURES

1.The Thread-body single acting hydraulic cylinder adopts imported oil seal and accessories to guarantee

the quality . No oil leakage while clamping under high pressure for a long time.

2.The volume of this thread-body single acting hydraulic cylinder is small. It can be installed in

limited space on the fixture.

3. The rod end of this hydraulic cylinder extends out by oil pressure and returns back by spring.

4. The angle degree between the cylinder and workpiece could not be larger than 10° while the cylinder is

installed perpendicularly on the work platform.

5. A leakage-proof gasket must be putted under the cylinder

6. Max. operating pressure: 250 kgf/cm2

Min. operating pressure: 20 kgf/cm2

7. Acting Type :Single acting

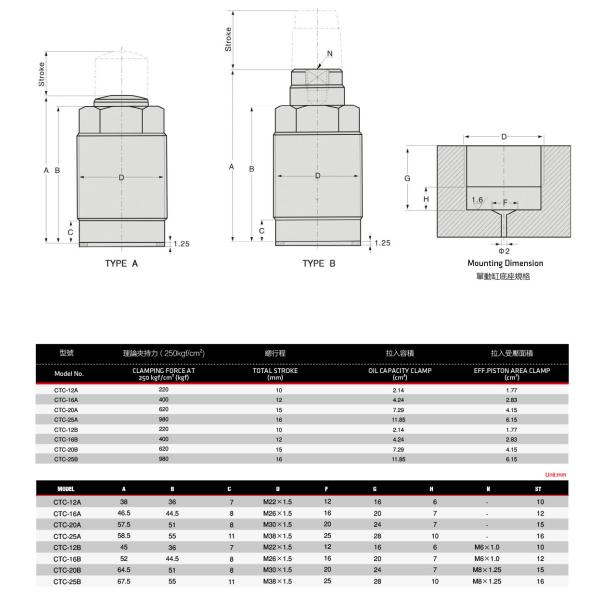

Specifications:

Type CTC-12A CTC-16A CTC-20A CTC-25A CTC-12B CTC-16B CTC-20B CTC-25B
Dia. of piston (mm) Φ12 Φ16 Φ20 Φ25 Φ12 Φ16 Φ20 Φ25
Total Stroke 10 12 15 16 10 12 15 16
Fluid Filtered oil

Range of

pressure(kg/cm²)

 20-250kgs/cm²
Actig type Single acting
Theoretical clamping 200 kgs/cm² 200kgs 400kgs 620kgs 980kgs 200kgs 400kgs 620kgs 980kgs


Ordering Code:

CTC-16 A

1 2 3

1

Series

CTC

2

Piston diameter

Φ12,Φ16,Φ20,Φ25
3

Type

A type and B type
