Threaded Single Acting Hydraulic Cylinder , Long Stroke Hydraulic Cylinder
Threaded Single Acting Hydraulic Cylinder , Long Stroke Hydraulic Cylinder
Threaded Single Acting Hydraulic Cylinder , Long Stroke Hydraulic Cylinder
Threaded Single Acting Hydraulic Cylinder , Long Stroke Hydraulic Cylinder
Specifications
Brand Name :
Jiayan
Model Number :
TC
Certification :
ISO9001:2008
Place of Origin :
Dongguan China
MOQ :
1 year
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,PayPal
Supply Ability :
1000 pcs per week
Delivery Time :
7 days
Packaging Details :
poly bag and carton box
Material :
Carbon Steel
Structure :
piston cylinder
Fluid :
filtered oil
Surface Finish :
oxidizing blackening
Max. Operation Pressure :
20kg/cm2
Min. Operation Pressure :
250kg/cm2
Max Clamping Force :
980kgs
Warranty :
1 year
Description

Threaded Hydraulic Cylinder Machining Center Supporting Cylinder Clamp

Products Features

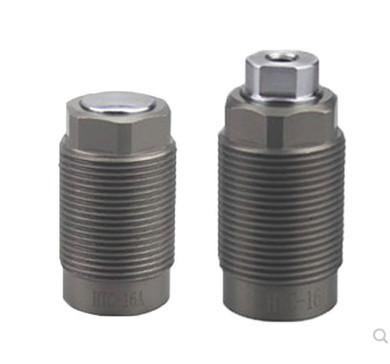

1.This hydraulic threaded-body cylinder is a single acting cylinder and is applied to a condition of knocking-out, and it applies a clamping force on a workpiece within a stroke to secure the workpiece.

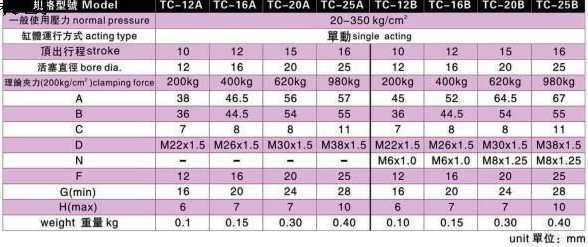

2.A series: knocking-out heads without female thread
3.B series: knocking-out heads with female thread

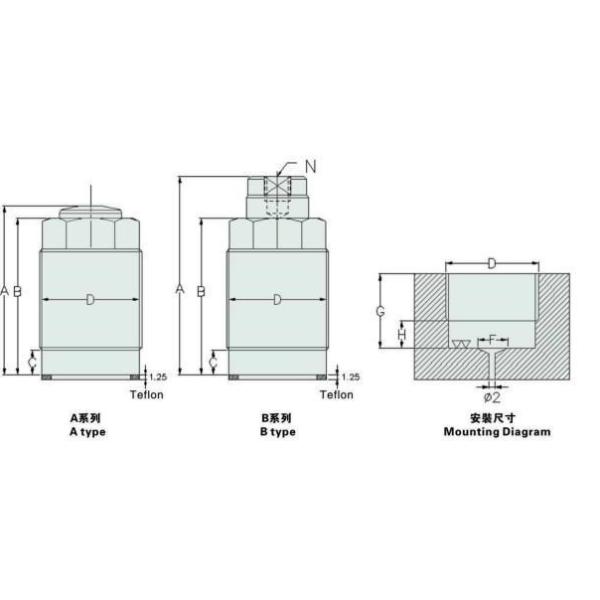

4.Mounting way is shown as the following drawing illustrating suggested dimension and this mounting needs a teflon gasket in order to avoid oil leakage

Threaded Single Acting Hydraulic Cylinder , Long Stroke Hydraulic Cylinder

Threaded Single Acting Hydraulic Cylinder , Long Stroke Hydraulic Cylinder
