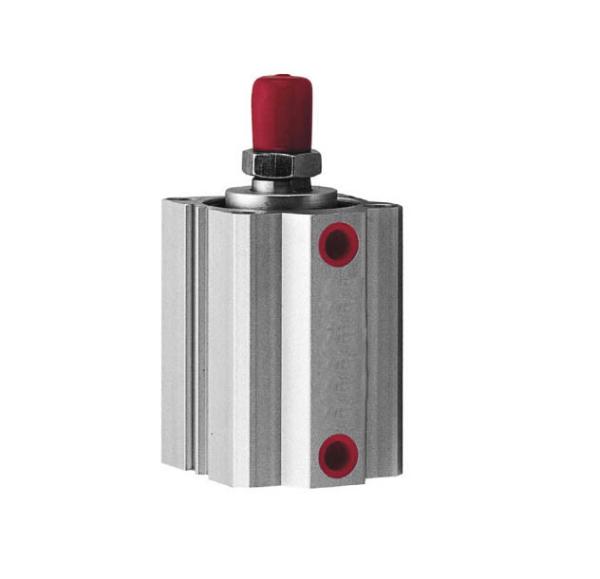

Magnetic Induction Aluminum Air Cylinder / Single Acting Pneumatic Cylinder
Magnetic Induction Aluminum Air Cylinder / Single Acting Pneumatic Cylinder
Magnetic Induction Aluminum Air Cylinder / Single Acting Pneumatic Cylinder
Magnetic Induction Aluminum Air Cylinder / Single Acting Pneumatic Cylinder
Specifications
Brand Name :
Jiayan
Model Number :
SDAS
Certification :
ISO9001:2008
Place of Origin :
Dongguan China
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
7 days
Packaging Details :
poly bag and outer carton box
Material :
Aluminium Alloy
Bore of Cylinder :
12,16,20,25,32,40,50,63,80,100
Work Temperature :
-10 ~ +60 °C
Max :
100mm
Acting Type :
Double Acting or Single Acting
Rod end :
Single Rod End or Double Rod End
Inductive Switch :
Optional
Warranty :
1 year (change new one for free)
Description

Air Cylinder Magnetic Induction Pneumatic Cylinder Simple Mounting Automatic Production Line Clamps

Features:

Bore of Cylinder (mm) Φ12 Φ16 Φ20 Φ25 Φ32 Φ40 Φ50 Φ63 Φ80 Φ100
Stroke(mm) 5 ,10 ,15 ,20 ,25 ,30 ,35 ,40 ,45 ,50
Range of stroke(mm) Max:60 Max:100 Max:100
Range of temperature (°C ) -10 ~ +60 °C

Max. operating pressure: 10 kgf/cm2

Min. operating pressure: 1 kgf/cm2

Double acting

Note:

Stroke above 50 mm needs to be customized.

Magnetic Induction Aluminum Air Cylinder / Single Acting Pneumatic Cylinder

Magnetic Induction Aluminum Air Cylinder / Single Acting Pneumatic Cylinder

Order Code:

SDA - D S - 20 - 10 - F

1 2 3 4 5 6

1 Series SDA/SOAD/SDAJ
2 Piston rod

Nil: Single end rod

D: Double end rod

J: Double rod of adjustable stroke rod
3 Magnet

Nil: No magnet

S: With magnet

4 Bore of Cylinder Φ12 , Φ16 , Φ20 , Φ25 , Φ32 , Φ40 , Φ50 , Φ63 , Φ80 , Φ100
5 Stroke 5 , 10 , 15 , 20, 25 , 30 , 35 , 40, 45, 50
6 Rod end Type

F:Female

M: Male

Magnetic Induction Aluminum Air Cylinder / Single Acting Pneumatic Cylinder

Magnetic Induction Aluminum Air Cylinder / Single Acting Pneumatic Cylinder
