High Pressure Aluminum Air Cylinder / Lightweight Single Acting Air Cylinder
High Pressure Aluminum Air Cylinder / Lightweight Single Acting Air Cylinder
High Pressure Aluminum Air Cylinder / Lightweight Single Acting Air Cylinder
High Pressure Aluminum Air Cylinder / Lightweight Single Acting Air Cylinder
High Pressure Aluminum Air Cylinder / Lightweight Single Acting Air Cylinder
High Pressure Aluminum Air Cylinder / Lightweight Single Acting Air Cylinder
High Pressure Aluminum Air Cylinder / Lightweight Single Acting Air Cylinder
High Pressure Aluminum Air Cylinder / Lightweight Single Acting Air Cylinder
Specifications
Brand Name :
Jiayan
Model Number :
UCQ2B T
Certification :
ISO9001:2008
Place of Origin :
Dongguan China
MOQ :
1 sets
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
400 sets per week
Delivery Time :
7 days
Packaging Details :
poly bag and carton box
Material :
Aluminium Alloy
Max. operating pressure :
10 kgf/cm2
Min. operating pressure :
1 kgf/cm2
Work Temperature :
-10 ~ +60 °C
Bore of Cylinder :
12,16,20,25,32,40,50
Acting Type :
Single Acting with rod -extended type
Warranty :
1 year (change new one for free )
Customized Product :
available
Description

Single Acting Pneumatic Cylinder Packing Machine Rod Extended Air Cylinder Though-hole Mounting

Features:

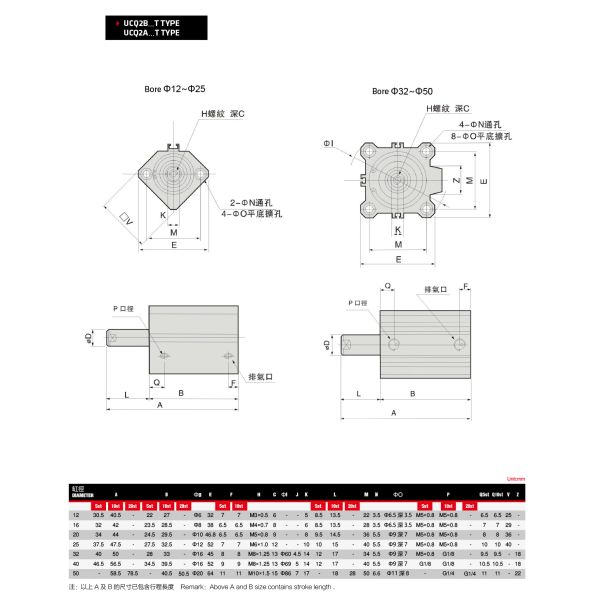

Dia. of Cylinder (mm) Φ12 Φ16 Φ12 Φ16 Φ20 Φ25 Φ32 Φ40 Φ50
Stroke(mm) 5 ,10 ,15 ,20 ,25 ,30 ,35 ,40 ,45 ,50
Range of stroke(mm) Max:30 Max:50
Range of temperature (°C) -10 ~ +60 °C

Max. operating pressure: 10 kgf/cm2

Min. operating pressure: 1 kgf/cm2

NOTE

Magnetic piston(optional).
Stroke in more than 50 mm belongs to special custom.

Customized Products are available

High Pressure Aluminum Air Cylinder / Lightweight Single Acting Air Cylinder

High Pressure Aluminum Air Cylinder / Lightweight Single Acting Air Cylinder

High Pressure Aluminum Air Cylinder / Lightweight Single Acting Air Cylinder

High Pressure Aluminum Air Cylinder / Lightweight Single Acting Air Cylinder
