Adjustable Compact Pneumatic Cylinder High Precision Magnet Ring Strong Structure
Adjustable Compact Pneumatic Cylinder High Precision Magnet Ring Strong Structure
Adjustable Compact Pneumatic Cylinder High Precision Magnet Ring Strong Structure
Adjustable Compact Pneumatic Cylinder High Precision Magnet Ring Strong Structure
Specifications
Brand Name :
Jiayan
Model Number :
DEN
Certification :
ISO9001:2008
Place of Origin :
Dongguan China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300 sets per week
Delivery Time :
7 days
Packaging Details :
poly bag and carton box
Material :
aluminium alloy
Max. operating pressure :
1 Mpa
Min. operating pressure :
0.1 Mpa
Stroke :
adjustable
Work temperature(°C ) :
-10 ~ +60 °C
Magnetic piston :
available
Max Stroke(mm) :
500 mm
Warranty :
1 year (Change new one for free)
Description

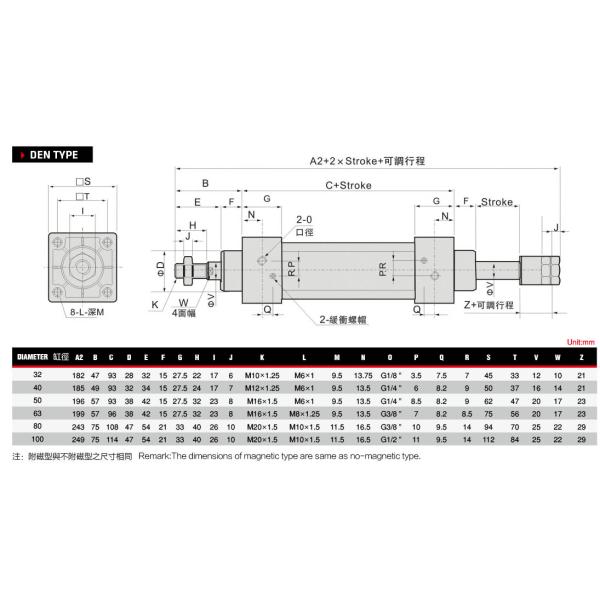

Adjustable stroke Pneumatic Cylinder with Magnet Ring on Piston Strong Structure High Precision Cylinder

Production Specifications:

Bore of Cylinder : Φ32 Φ40 Φ50 Φ63 Φ80 Φ100

Stroke(mm): 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500

Range of temperature(°C ) : -10 ~ +60 °C

Advantage:

Hign quality seal to prevent leakage , durable , high Strength aluminium alloy to prevent deformation,

Application:

Auto manufacture industry, machining center fixture , plastic machine,

automatic fixture

Air Cylinder Operation

Max. operating pressure: 10kgf/cm2

Min. operating pressure: 1 kgf/cm2

DOUBLE ACTING CYLINDERS Type Introduction

1.Double acting-single end rod type (Code: DEB)

2.Double acting-single end rod type(piston with magnet) (Code:DEB...M)

3.Double acting-double end rod type ( Code:DED)

4.Double acting-double end rod type(piston with magnet) (Code:DED...M)

5.Adjustable stroke cylinder(adjustable stroke:A:25mm,B:50mm)
(Code: DEN...N...A ; DEN...N...B)

6.Adjustable stroke cylinder (piston with magnet) (adjustable stroke:A:25mm,B:50mm)
(DEN...M...A ; DEN...M...B)

ORDERING INDICATION

DEN - 50 N 125 B FA-Y S x 2

1 2 3 4 5 6 7 8

1 Series DEB / DED / DEN
2 Bore of Cylinder Φ32 ,Φ40 ,Φ50,Φ63 Φ80 , Φ100
3 Magnet

Nil: No magnet ;

D: With magnet
4 Stroke 25 , 50 , 75 , 100 , 125 , 150 , 175 , 200 , 225 , 300 , 350, 400 , 450 , 500
5 Adjustable stroke

A:Adjustable 25mm ;

B:Adjustable 50mm

C: Adjustable 75mm
6 Accessories Adjustable Compact Pneumatic Cylinder High Precision Magnet Ring Strong Structure
7 Sensor switch
8 Quantity 1:1pcs 2:2pcs

Adjustable Compact Pneumatic Cylinder High Precision Magnet Ring Strong Structure

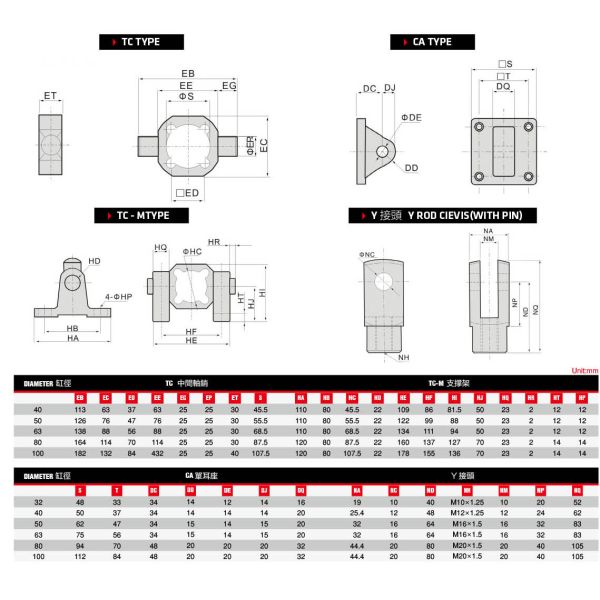

Mounting accessories size

Adjustable Compact Pneumatic Cylinder High Precision Magnet Ring Strong Structure

Product tags

magnetically coupled rodless cylinder

,

precision coil tubing

,

magnetic pneumatic cylinder
