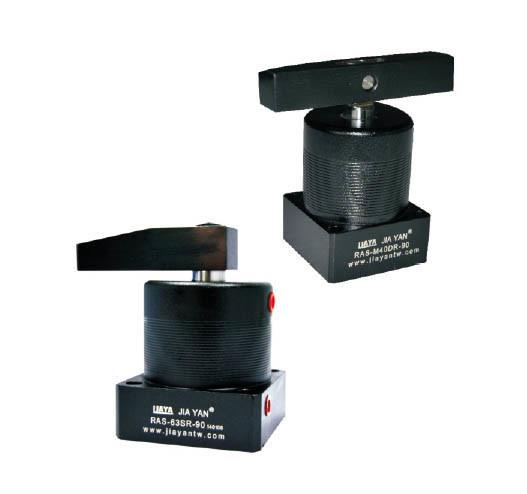

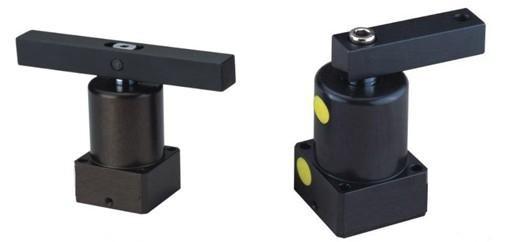

Unique Pneumatic Lever Clamp Machining Center Fixture Black Oxide Finishing
Unique Pneumatic Lever Clamp Machining Center Fixture Black Oxide Finishing
Unique Pneumatic Lever Clamp Machining Center Fixture Black Oxide Finishing
Unique Pneumatic Lever Clamp Machining Center Fixture Black Oxide Finishing
Specifications
Brand Name :
Jiayan
Model Number :
RAS
Certification :
ISO9001:2008
Place of Origin :
Dongguan China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,PayPal
Supply Ability :
500 sets per week
Delivery Time :
7 days
Packaging Details :
Poly bag and carton box
Material :
Aluminium Alloy
Max Operation Pressure :
7kg/cm2
Min Operation Pressure :
4kg/cm2
Max withstanding Pressure :
10kg/cm2
Acting Type :
double acting
Temperature Range :
-10~+60°C
Warranty :
1 year (change new one for free)
Description

Air Powered Swing Clamp Machining Center Fixture Aluminium Alloy Cylinder Surface Black Oxide Finish

Features:

1. When the air cylinder is actuated, the clamping arm will rotate to the design angle during the piston downward stroke, and then continue to clamp down along the straight line until the clamping arm clamps the workpiece.
2. When using the air powered swing cylinder, please install the flow control valve to avoid the speed too fast, and do not clamp the workpiece during the swing stroke to avoid damage to the cylinder and internal parts.
3. When the the length of clamping arm needs to be increased , please do not exceed 1.5 times the original length.
4.The cylinder material is made of aluminum alloy, and the surface is treated with black oxide finish . The inner wall surface is smooth and the service life is long.

Specifications:

Bore of Cylinder (mm) Φ25 Φ32 Φ40 Φ50 Φ63
Dia. of Pison Φ14 Φ16 Φ20 Φ20 Φ20
Press Area pull/push 3.37/4.91 6.03/8.04 10.56/12.57 16.49/19.63 28.03/31.17
Theoretical Clamping Force 5kg/cm² 16kgs 30kgs 50kgs 85kgs 140kgs
Swing Stroke (mm) 12 12 12 14 15
Clamping Stroke (mm) 12 12 12 14 15
Fluid Filtered Air
Max Withstanding Pressure (kg/cm²) 10kg/cm²
Normal Operation Pressure 1-7kg/cm²
Rotating Direction Turn Right or Turn Left
Rotating Angle Standard angle 90°,Optional angle 0°, 45°,60°
Acting Type Double Acting

Ordering Code:

Unique Pneumatic Lever Clamp Machining Center Fixture Black Oxide Finishing

The swing clamp cylinder is a clamp driven by air pressure or hydraulic pressure. It is suitable for special machines and fixtures for mass production parts. It can greatly improve the automation degree of tooling fixtures such as machining, assembly and welding.
