G RXG300D/600D High Power Aluminum Housed Wirewound Resistor
G RXG300D/600D High Power Aluminum Housed Wirewound Resistor
Specifications
Brand Name :
HUAXING
Model Number :
G RXG300D/600D
Place of Origin :
China
MOQ :
1000
Payment Terms :
T/T
Description

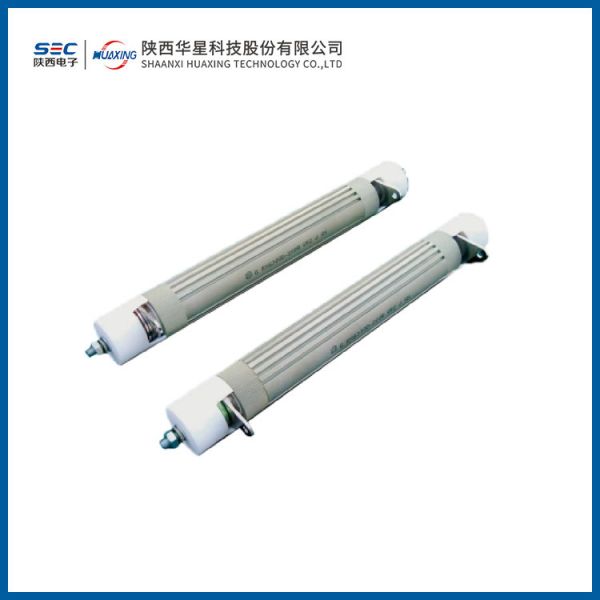

G RXG300D/600D High power Aluminum-housed wirewound resistor

Product Introduction:

  • Product Features: Radial lead-out, axially mounted on a fixed plate. Aluminum housing with heat dissipation teeth for efficient cooling. Integrated packaging with flame-retardant materials for good vibration resistance.
  • Application Areas: Used in the discharge circuits of high-power DC or low-frequency AC systems.
  • Product Standard: Detailed specifications for high-power wire-wound fixed resistors, compliant with Q/RW 20063-2005 G RXG300D/600D.
  • Products meeting RoHS and REACH requirements can be produced.

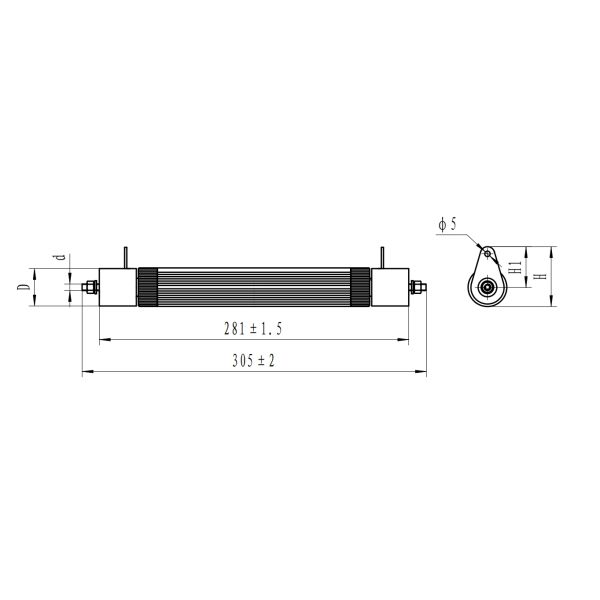

Size:
G RXG300D/600D High Power Aluminum Housed Wirewound Resistor

specifications and models rated power(W) resistance range(Q) Size ( m m ) Weight
(g)
(25℃,Strong cold wind heat dissipation, wind speed
:2m/s) ΦD±1 d H±1 H1±1
G RXG300D-200W 200 5.1～1K Ф35 M6 54.5 37 91
G RXG600D-400W 400 5.1～2.1K Ф51 M8 73 47.5 117

Key Test Items:

Test Items: Test Conditions: Performance Requirements:
Resistance Temperature Characteristics Lower Category Temperature Limit: -55°C ±500ppm/°C
Upper Category Temperature Limit: +275°C
Dielectric Strength Voltage: 2500V AC, 1 minute, between lead-out terminal and mounting plate No breakdown, no arcing
ΔR ≤ ±(2%R + 0.1Ω)
Insulation Resistance Voltage: 100V DC, between lead-out terminal and mounting plate ≥1000MΩ
Moisture Resistance Temperature: (40±2)°C, Relative Humidity: (%) RH, 96 hours ΔR ≤ ±(5%R + 0.1Ω)
Impact Resistance Acceleration: 1000 m/s², Time: 6 ms, Half Sine Wave ΔR ≤ ±(2%R + 0.1Ω)
High-Frequency Vibration Frequency: (10-500) Hz, Amplitude: 0.75 mm or Acceleration: 100 m/s², 6 hours ΔR ≤ ±(2%R + 0.1Ω)
Lifespan Wind Speed ≥ 5.2 m/s, Rated Power, 1.5 hours energized; 0.5 hours de-energized, 48 hours ΔR ≤ ±(5%R + 0.1Ω)

Ordering Example:

Model Number :RXG300D

Rated Power:200W

Nominal Resistance:10Ω

Resistance Tolerance:±5%

Quantity:1000 pieces
