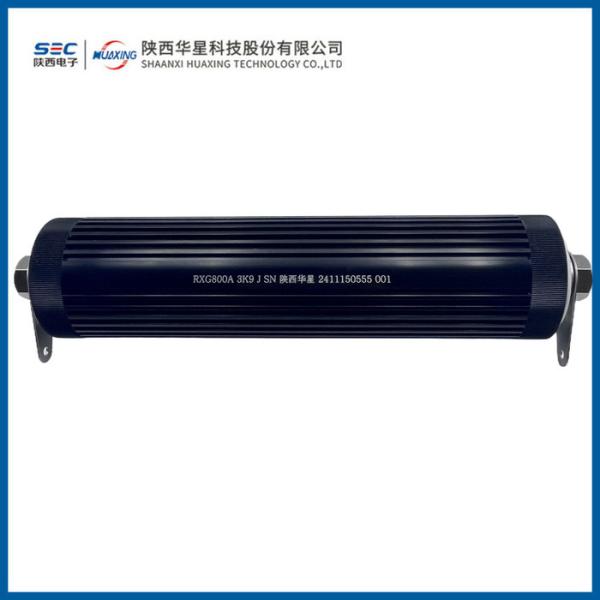

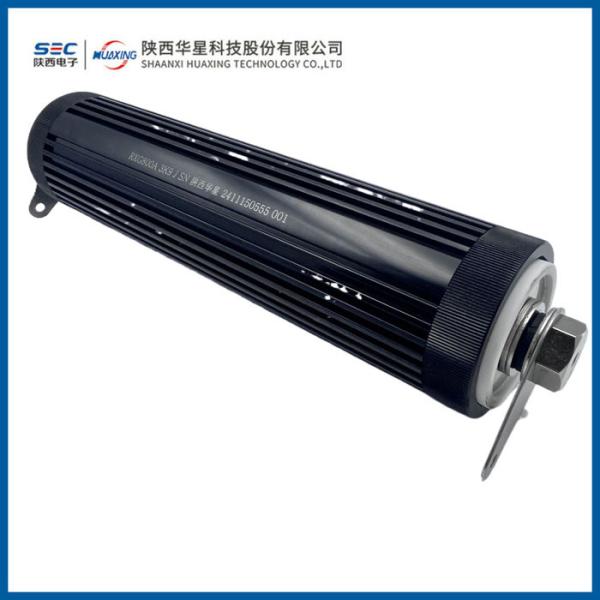

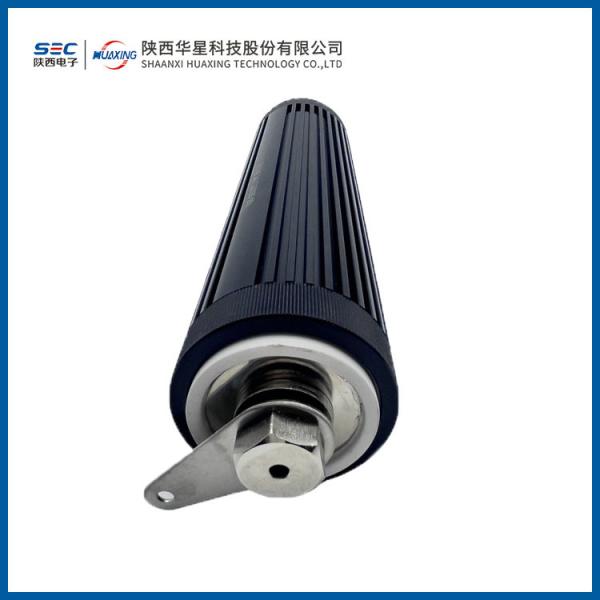

RXG High power Aluminum-housed wirewound resistor

Product Introduction:

• Product features: Aluminum housing with heat dissipation teeth, excellent heat dissipation. Integrated packaging using flame retardant materials.
• Application areas: Used for voltage division or current splitting in DC or low-frequency AC circuits in electrical and large power equipment. High-power absorption resistor used in RC absorption circuits on electric locomotives.
• Product standard: Detailed specifications for high-power aluminum housing wire-wound fixed resistors in the RXG series, conforming to standard Q/RW 448A-2011.Negotiable to provide sensorless products, denoted by adding "N" before the model number.
• Capable of producing products that comply with RoHS and REACH requirements.

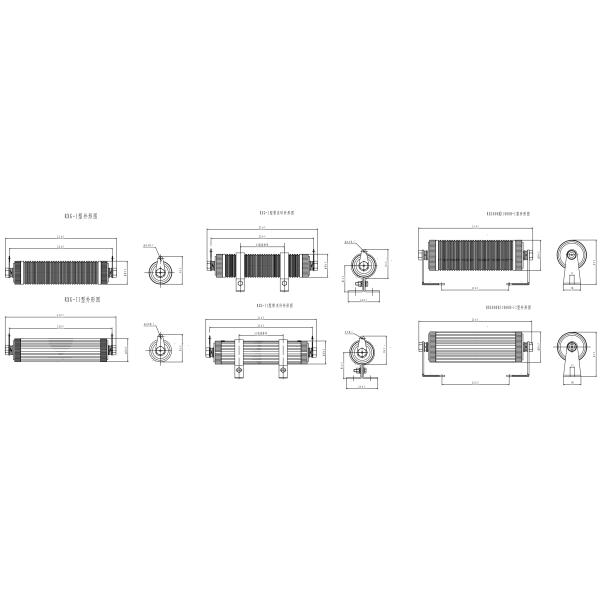

Size:

**Indicates that the resistor clamp ring is one and located on the center line of the resistor.

Key Test Items:

Notes:

1. In this series of products, "Ⅰ" indicates that the aluminum housing heat dissipation groove is vertical, while "Ⅱ" indicates that the aluminum housing heat dissipation groove is horizontal.
2. According to user requirements, the resistance value can be extended to both ends to produce lower or higher resistance value products.
3. During usage, some volatile materials in the encapsulation may undergo a so-called "venting" process, leading to the generation of certain odors, which is a normal phenomenon. Users should consider this when selecting the product.
4. Except for the RXG800B/1000B series, it should be specified whether the product comes with mounting brackets for all other series. "Y" indicates with brackets; "N" indicates without brackets.

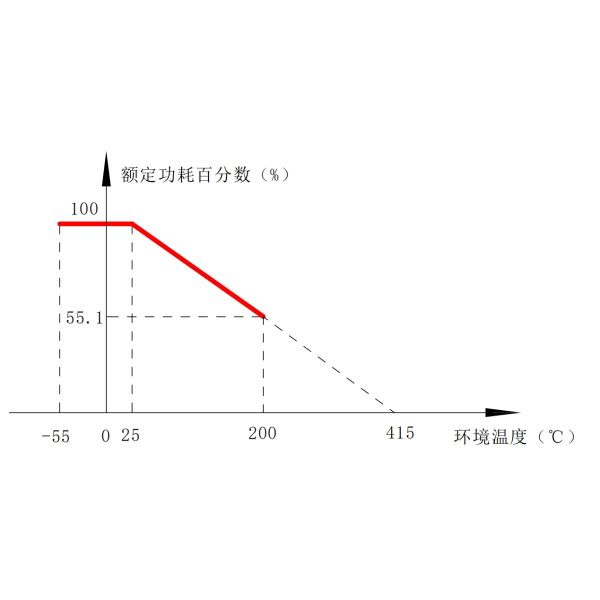

Power dissipation curve:

Ordering Example:

Model Number :RXG800A-Ⅰ

Nominal Resistance:10Ω

Resistance Tolerance:±5%

Quantity:1000 pieces
