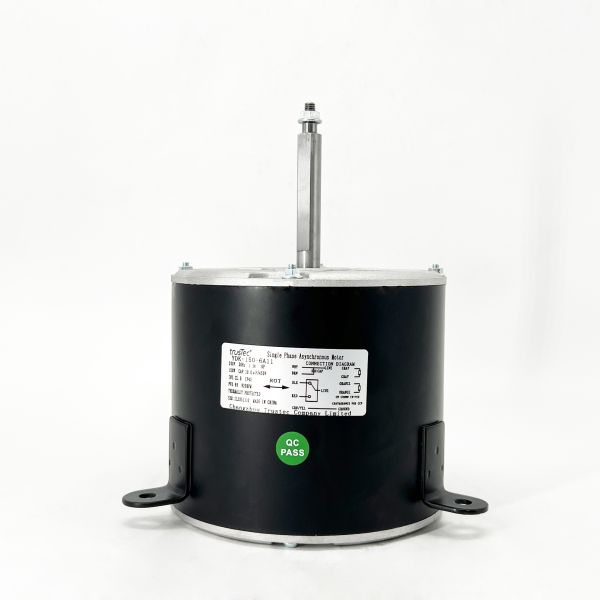

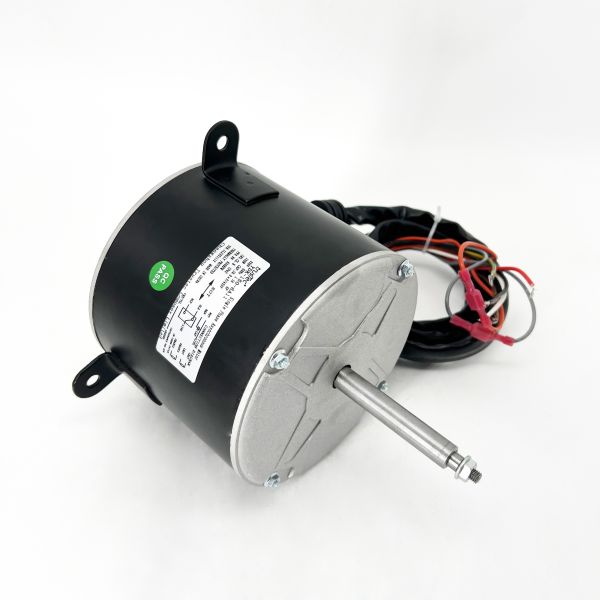

48 Frame Condenser Fan Motor - 1/5HP 230V 50HZ 920RPM
48 Frame Condenser Fan Motor - 1/5HP 230V 50HZ 920RPM
48 Frame Condenser Fan Motor - 1/5HP 230V 50HZ 920RPM
48 Frame Condenser Fan Motor - 1/5HP 230V 50HZ 920RPM
48 Frame Condenser Fan Motor - 1/5HP 230V 50HZ 920RPM
48 Frame Condenser Fan Motor - 1/5HP 230V 50HZ 920RPM
Specifications
Brand Name :
trusTec
Model Number :
YDK-150-6A11-ILCT
Certification :
CE、UL529388
Place of Origin :
Changzhou, China
MOQ :
200 pcs
Price :
Negotiable (FOB/CNF/CIF)
Payment Terms :
T/T, L/C
Supply Ability :
100,000 pcs per month
Delivery Time :
15 days fresh products after order confirmation.
Packaging Details :
Standard carton packing, foam board inside for protection.
Product :
Outdoor Fan Motor
Frame :
48 frame
Motor Type :
Permanent Split Capacitor
Supply Voltage :
230V
Enclosure Type :
TEAO(Totally Enclosed Air Over)
Supply Frequency :
50Hz
Thermal Overload :
Equipped With An Automatic Thermal Overload
Current :
1.1A
Phase :
Single Phase
Output HP :
150W 1/5HP
Shaft Flat :
One Flat
Speed :
920RPM
Mounting Orientation :
All Angle
Capacitor :
10.0μF/450V
Insulation Class :
Class B
Pole :
6P
Rotation :
Reversible
PF :
0.99
Bearings :
Ball Bearing
Max. Ambient Temperature :
40℃/104℉
Motor Shell Length :
123mm/4.84"
Flat Length :
60mm/2.36"
Shaft Diameter :
12mm/0.47"
Shaft Length :
80mm/3.15"
Lead Length :
1200mm/47.24"
Description
