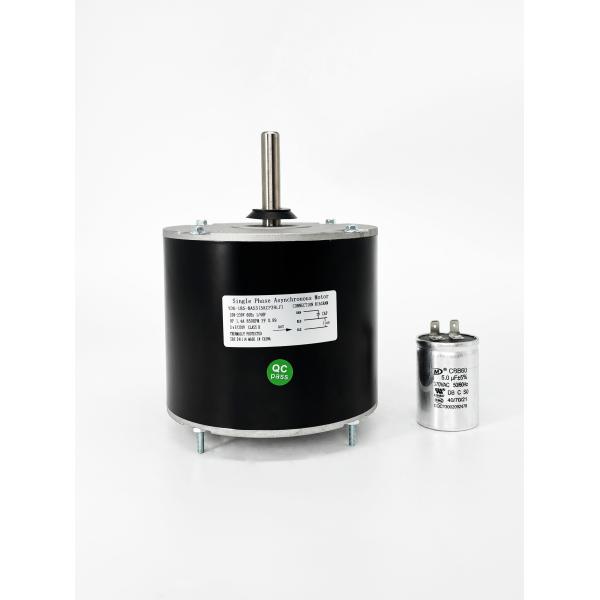

48 Frame Condenser Fan Motor - 1/4HP 208-230V 60HZ 850RPM
48 Frame Condenser Fan Motor - 1/4HP 208-230V 60HZ 850RPM
48 Frame Condenser Fan Motor - 1/4HP 208-230V 60HZ 850RPM
48 Frame Condenser Fan Motor - 1/4HP 208-230V 60HZ 850RPM
48 Frame Condenser Fan Motor - 1/4HP 208-230V 60HZ 850RPM
48 Frame Condenser Fan Motor - 1/4HP 208-230V 60HZ 850RPM
Specifications
Brand Name :
trusTec
Model Number :
YDK-185-8A53-CJK
Certification :
CE、UL529388
Place of Origin :
Changzhou, China
MOQ :
200 pcs
Price :
Negotiable (FOB/CNF/CIF)
Payment Terms :
T/T, L/C
Supply Ability :
100,000 pcs per month
Delivery Time :
15 days fresh products after order confirmation.
Packaging Details :
Standard carton packing, foam board inside for protection.
Product :
Condenser Fan Motor
Frame :
139mm
Motor Type :
Permanent Split Capacitor
Supply Voltage :
298-230V
Enclosure Type :
TEAO(Totally Enclosed Air Over)
Supply Frequency :
60Hz
Thermal Overload :
Equipped With An Automatic Thermal Overload
Current :
1.4A
Phase :
Single Phase
Output HP :
1/4HP 185W
Shaft Flat :
One Flat
Speed :
850RPM
Mounting Orientation :
All Angle
Capacitor :
5.0μF/370V
Insulation Class :
Class B
Pole :
6P
Rotation :
CCW
PF :
0.89
Bearings :
Ball Bearing
Max. Ambient Temperature :
40℃/104℉
Shaft Diameter :
12.7mm/0.5"
Shaft Length :
60mm/2.36"
Flat Length :
52mm/2.05"
Lead Length :
1200mm/47.24"
Motor Shell Length :
110mm/4.33"
Screw Length :
9mm/0.35"
