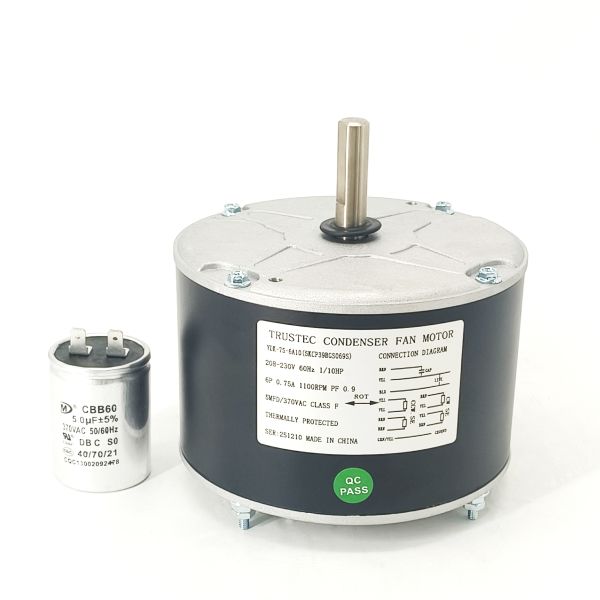

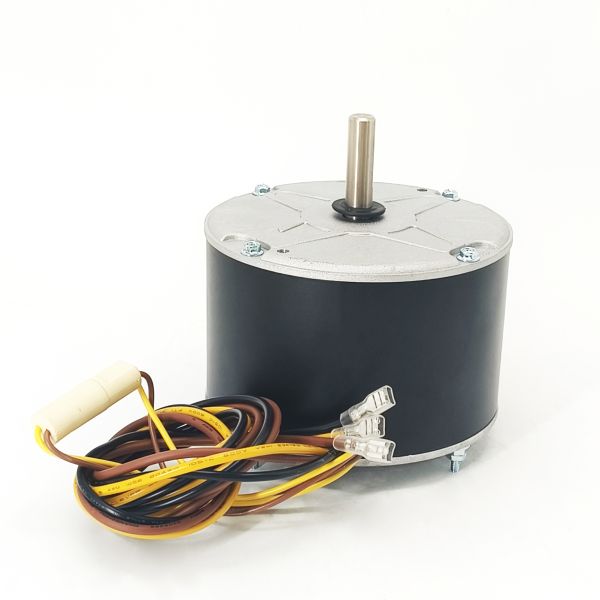

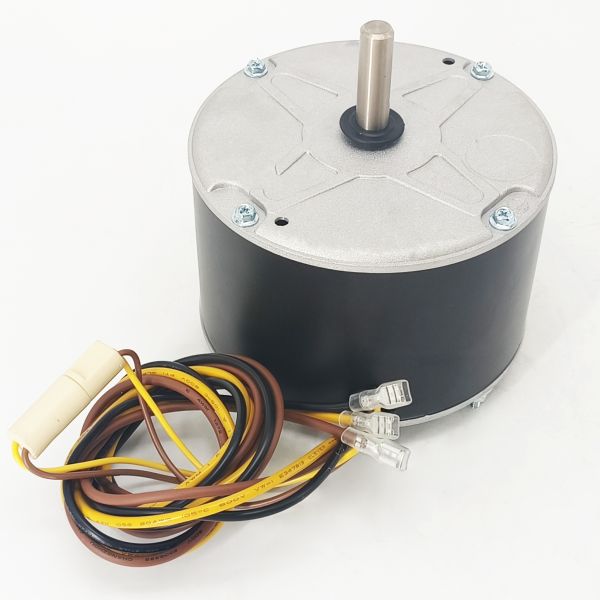

48 Frame Condenser Fan Motor - 1/10HP 208/230V 60HZ 1100RPM 5uF/370V CW/CCW Rotation - 5KCP39BGS069S Replacement Motor
48 Frame Condenser Fan Motor - 1/10HP 208/230V 60HZ 1100RPM 5uF/370V CW/CCW Rotation - 5KCP39BGS069S Replacement Motor
48 Frame Condenser Fan Motor - 1/10HP 208/230V 60HZ 1100RPM 5uF/370V CW/CCW Rotation - 5KCP39BGS069S Replacement Motor
48 Frame Condenser Fan Motor - 1/10HP 208/230V 60HZ 1100RPM 5uF/370V CW/CCW Rotation - 5KCP39BGS069S Replacement Motor
48 Frame Condenser Fan Motor - 1/10HP 208/230V 60HZ 1100RPM 5uF/370V CW/CCW Rotation - 5KCP39BGS069S Replacement Motor
48 Frame Condenser Fan Motor - 1/10HP 208/230V 60HZ 1100RPM 5uF/370V CW/CCW Rotation - 5KCP39BGS069S Replacement Motor
48 Frame Condenser Fan Motor - 1/10HP 208/230V 60HZ 1100RPM 5uF/370V CW/CCW Rotation - 5KCP39BGS069S Replacement Motor
48 Frame Condenser Fan Motor - 1/10HP 208/230V 60HZ 1100RPM 5uF/370V CW/CCW Rotation - 5KCP39BGS069S Replacement Motor
Specifications
Brand Name :
trusTec
Model Number :
YDK-75-6A10-CYM
Certification :
CE、UL529388
Place of Origin :
Changzhou, China
MOQ :
200 pcs
Price :
Negotiable (FOB/CNF/CIF)
Payment Terms :
T/T, L/C
Supply Ability :
100,000 pcs per month
Delivery Time :
15 days fresh products after order confirmation.
Packaging Details :
Standard carton packing, foam board inside for protection.
Product :
Condenser Fan Motor
Frame :
48 Frame-139mm/5.47"
Motor Type :
Permanent Split Capacitor
Supply Voltage :
208-230V
Enclosure Type :
TEAO(Totally Enclosed Air Over)
Supply Frequency :
60Hz
Thermal Overload :
Equipped With An Automatic Thermal Overload
Current :
0.75A
Phase :
Single Phase
Output HP :
1/10HP 75W
Shaft Flat :
One Flat
Speed :
1100RPM
Mounting Orientation :
All Angle
Capacitor :
5μF/370V
Insulation Class :
Class F
Pole :
6P
Rotation :
Reversible-CW/CCW
PF :
0.9
Bearings :
Ball Bearing
Max. Ambient Temperature :
70℃/158℉
Shaft Length :
51mm/2.01"
Shaft Diameter :
12.7mm/0.5"
Motor Shell Length :
82mm/3.23"
Flat Length :
32.5mm/1.28"
Lead Length :
1100mm/43.31"
Screw Length :
11mm/0.43"
Replacement Motor :
5KCP39BGS069S
