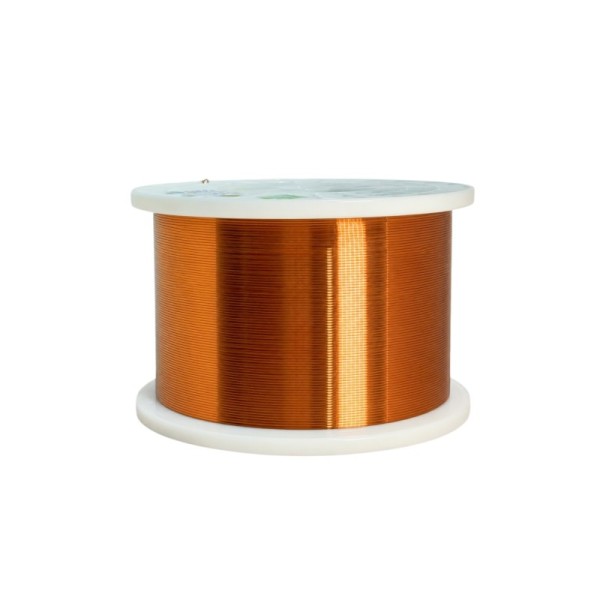

AIW 0.100 × 1.000mm Flat Enameled Copper Wire Class 220 Polyamide Imide Insulation Wire
AIW 0.100 × 1.000mm Flat Enameled Copper Wire Class 220 Polyamide Imide Insulation Wire
Specifications
Model Number :
F-xAIW/220
Insulation material :
Polyamide-Imide
MOQ :
200KG
Delivery Time :
15days
Thermal class :
220℃
Payment Terms :
L/C,T/T
Supply Ability :
10 Tons/Monthly
Certification :
UL/QC080000/ISO9001/ISO14001/IATF16949/HSF
Thickness :
0.100mm
Place of Origin :
China
Width :
1.000mm
Price :
Negotiation
Packaging Details :
Cartons
Brand Name :
HUAYE
Conductor material :
Copper
Description
0.100 × 1.000 mm Polyamide-Imide (AIW) Flat Enameled Copper Wire – Class 220
Flat Copper Wire

Flat copper wire offers higher slot fill, lower winding resistance, and improved thermal performance compared with conventional round wire. Manufactured with precise dimensional control and uniform enamel insulation, it is ideal for high-efficiency motors, transformers, EV drive systems, and other high-power electromagnetic applications.

Parameter Typical Value
Conductor Size 0.100 × 1.000 mm
Overall Size 0.132 × 1.030 mm
DC Resistance (20°C) 0.172 Ω/m
Breakdown Voltage ≥3.0 kV
Elongation 38–40%

Typical values are based on production inspection results and are provided for reference only. Custom dimensions and insulation builds are available upon request.
