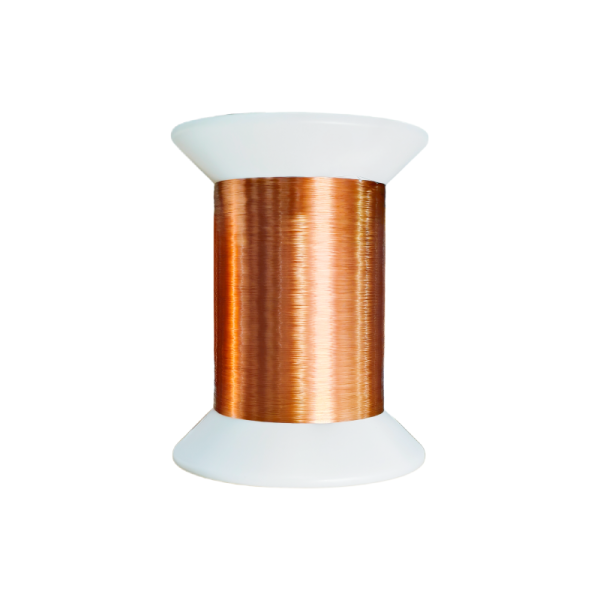

0.050 × 0.300 mm Polyamideimide Flat Copper Magnet Wire Self Bonding Class 220 Insulation
0.050 × 0.300 mm Polyamideimide Flat Copper Magnet Wire Self Bonding Class 220 Insulation
Specifications
Model Number :
F-3SBAIW
Conductor material :
Copper
MOQ :
200KG
Delivery Time :
15days
Conductor size :
0.05×0.3mm
Payment Terms :
T/T
Supply Ability :
10 Tons/Monthly
Certification :
UL/QC080000/ISO9001/ISO14001/IATF16949/HSF
Thermal class :
F(155℃)
Place of Origin :
China
Film thickness :
Ultra-fine film
Price :
Negotiation
Conductor shape :
Flat
Brand Name :
HUAYE
Insulation material :
Polyamideimide
Packaging Details :
Cartons
Description

OVERVIEW

The 0.05 × 0.3mm Self-Bonding Polyamideimide Flat Magnet Wire is engineered for high-density winding applications requiring exceptional thermal performance and reliable coil formation. Featuring Class 220 polyamideimide insulation and a self-bonding layer, it enables compact winding designs, high slot fill, and long-term stability in demanding electrical and electronic systems.

FEATURES

  • Maximize slot fill with a flat conductor design
  • Enable adhesive-free coil forming through self-bonding insulation
  • Withstand continuous operating temperatures up to Class 220
  • Improve winding density in compact assemblies
  • Provide excellent abrasion and mechanical resistance
  • Resist thermal aging and chemical exposure
  • Maintain reliable insulation under demanding conditions
  • Support precision winding for high-performance electromagnetic components

APPLICATION

  • Hairpin motor windings
  • EV traction motors
  • High-efficiency transformers
  • Flat coil inductors
  • Industrial automation equipment
  • Aerospace electronic systems
  • Medical devices
  • High-power magnetic components
  • Precision electromagnetic actuators
  • Renewable energy power systems

FAQ

Q1: Why choose flat magnet wire instead of round wire?

A: Flat magnet wire increases slot fill, improves heat dissipation, and allows more compact winding designs, resulting in higher power density and efficiency.

Q2: What are the advantages of polyamideimide (PAI) insulation?

A: PAI insulation offers excellent thermal endurance, abrasion resistance, and chemical resistance, making it suitable for Class 220 applications and demanding operating environments.

Q3: How does the self-bonding feature improve manufacturing?

A: The self-bonding layer allows coils to maintain their shape after activation, reducing the need for additional adhesives or mechanical fixation and simplifying the manufacturing process.

Q4: Is this wire suitable for high-temperature motor applications?

A: Yes. The Class 220 insulation system is designed for high-temperature applications such as EV motors, industrial motors, and other high-performance electromagnetic devices.

Q5: Can the dimensions and bonding characteristics be customized?

A: Yes. Conductor dimensions, insulation thickness, bonding type, and other specifications can be customized to meet specific application and design requirements.
