Automatic Backwash Self-Cleaning Filters
Automatic Backwash Self-Cleaning Filters
Automatic Backwash Self-Cleaning Filters
Automatic Backwash Self-Cleaning Filters
Specifications
Price :
USD3000-20000 PER SET
Model Number :
HT-092
Place of Origin :
CHINA
Flow Rate :
as per customer
HS Code :
8421299090
MOQ :
1 SET
Brand Name :
HUATAO
Delivery Time :
20-50 DAYS
Packaging Details :
WOODEN CASE
Filter Inner Structure :
wedge wire filter elements
Supply Ability :
200Sets/Month
Filter outer surface treatment :
Sandblasting
Certification :
ISO,CE,SGS
Filtration Rating: :
200um or customized by customer
Goods :
Automatic Backwash Self-Cleaning Filters
Warranty Period :
1 Year
Filter Housing Material :
SS304 or SS316L for choose
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Description

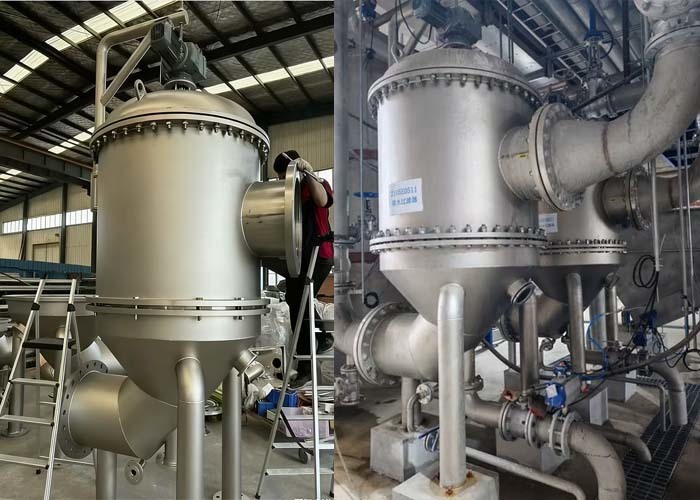

Automatic Backwash Self-Cleaning Filters
Introduction For Automatic Backwash Self-Cleaning Filters
This self-cleaning backwash filter is fitted with numerous filter elements. It is well suited for filtering high-flow liquids with heavy contaminants, removing solid particles from water and fluids of low viscosity. A dedicated backwash arm cleans every filter element individually to stop blockages, which boosts operational efficiency and extends the equipment’s service life.
Working Principle For Automatic Backwash Self-Cleaning Filters

This automatic backwash filter is fitted with multiple filter cartridges. It handles high-flow liquids with heavy impurities and separates solid particles from water and low-viscosity fluids. Its dedicated backwash arm cleans each cartridge individually to prevent blockages, optimizing operation efficiency and service life.

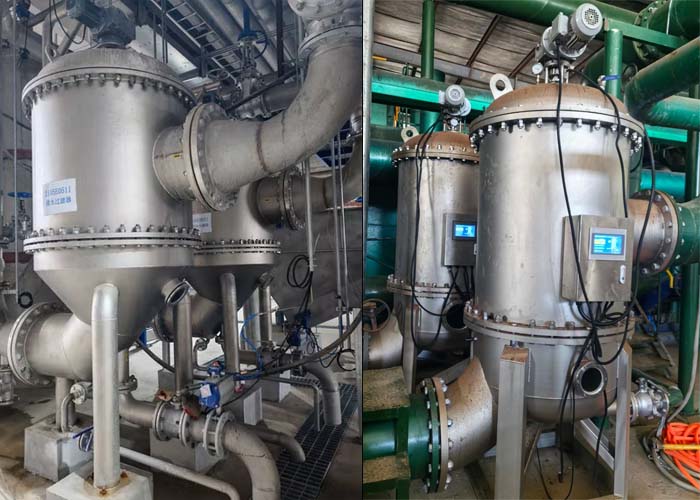

Automatic Backwash Self-Cleaning Filters

Technical Parameters For Automatic Backwash Self-Cleaning Filters

Model Filter Diameter Filter Height Thickness Filter Area Slot
HTF-D400 450mm 1500mm 6mm 0.8 0.02mm
HTF-D450 550mm 2000mm 6mm 0.9
HTF-D550 600mm 2500mm 6mm 1.0
HTF-D800 850mm 3000mm 6mm 2.0
HTF-D900 950mm 3500mm 6mm 2.5
HTF-D1200 1700mm 4000mm 6mm 3.0

Feature For Automatic Backwash Self-Cleaning Filters

*No disposable consumables,Save filter media cost and environment cost.

*Stainless steel structure:Variously materials, corrosion and rust prevention.

*High-precision slot opening: Min. Slot 20 microns.

*High automation degree:Which can work on-line continuously,no manual cleaning frequently
