Hot Sales AGFRC HV 14KG CLS B45CHMZ 0.086Sec Affordable Low Profile Servo Ideal For 1/12 Touring Car
Hot Sales AGFRC HV 14KG CLS B45CHMZ 0.086Sec Affordable Low Profile Servo Ideal For 1/12 Touring Car
Hot Sales AGFRC HV 14KG CLS B45CHMZ 0.086Sec Affordable Low Profile Servo Ideal For 1/12 Touring Car
Hot Sales AGFRC HV 14KG CLS B45CHMZ 0.086Sec Affordable Low Profile Servo Ideal For 1/12 Touring Car
Hot Sales AGFRC HV 14KG CLS B45CHMZ 0.086Sec Affordable Low Profile Servo Ideal For 1/12 Touring Car
Hot Sales AGFRC HV 14KG CLS B45CHMZ 0.086Sec Affordable Low Profile Servo Ideal For 1/12 Touring Car
Hot Sales AGFRC HV 14KG CLS B45CHMZ 0.086Sec Affordable Low Profile Servo Ideal For 1/12 Touring Car
Hot Sales AGFRC HV 14KG CLS B45CHMZ 0.086Sec Affordable Low Profile Servo Ideal For 1/12 Touring Car
Hot Sales AGFRC HV 14KG CLS B45CHMZ 0.086Sec Affordable Low Profile Servo Ideal For 1/12 Touring Car
Hot Sales AGFRC HV 14KG CLS B45CHMZ 0.086Sec Affordable Low Profile Servo Ideal For 1/12 Touring Car
Hot Sales AGFRC HV 14KG CLS B45CHMZ 0.086Sec Affordable Low Profile Servo Ideal For 1/12 Touring Car
Hot Sales AGFRC HV 14KG CLS B45CHMZ 0.086Sec Affordable Low Profile Servo Ideal For 1/12 Touring Car
Specifications
Brand :
AGFRC
MOQ :
50 boxes
Display Type :
Toy components
Operating System :
Other
private mold :
No
style :
Commercial
screen resolution :
-
Signal Mode :
Digital
Bearing :
Double Bearings
Mechanical Angle :
220
Wire :
JR 180mm / 22AWG
Type :
Commercial
Size :
40.8*20.2*26.1mm
Operating Travel :
180.10.
Operating Voltage :
4.8V ~ 8.4V
Net Weight :
45g
material :
Metal
Dead band :
3 uSec
function :
digital servo fixed wing
ram :
-
feature :
steering engine
Place of Origin :
China, China
storage capacity :
-
Price :
$18.80-19.80 / box
cpu :
other
Description
Product Features
Signal Mode Digital
Size 40.8*20.2*26.1mm
Operating Travel 180.10.
Dead band 3 uSec
screen resolution -
place of origin China
Wire JR 180mm / 22AWG
Bearing Double Bearings
Brand AGFRC
Type Toy components
Mechanical Angle 220.
feature steering engine
material Metal
Operating Voltage 4.8V ~ 8.4V
function digital servo, fixed wing
storage capacity -
private mold No
style Commercial
Net Weight 45g
ram -
Specification

Inquiry.

Any requests and questions, please click here to send your inquiry.

Feature:

*High Performance Low Profile Digital Servo
*High Precision Titanium Gear
*High Efficiency Coreless Motor
*Super Fast Response
*Dual Ball Bearing
*Aluminium Middle Hulls And Structure
Product Description:The B45CHMZ low profile servo is a high-performance and affordable practical servo that is within the budget range that most customers can accept. We still use 8.4V strong voltage drive for it, the maximum torque can reach 14KG and the fast speed of 0.086Sec. Its shell is composed of plastic and CNC shell, and the shell is gray and highly recognizable. The thin and light body allows it to accommodate many models. In the internal structure of the servo, the high-quality coreless motor can work closely with the high-precision titanium gear and operate in an orderly manner.
Application:
Ideal for 1/10, 1/12 Drift Racing Car, Touring Car, Boat, Aircraft, Robot etc.

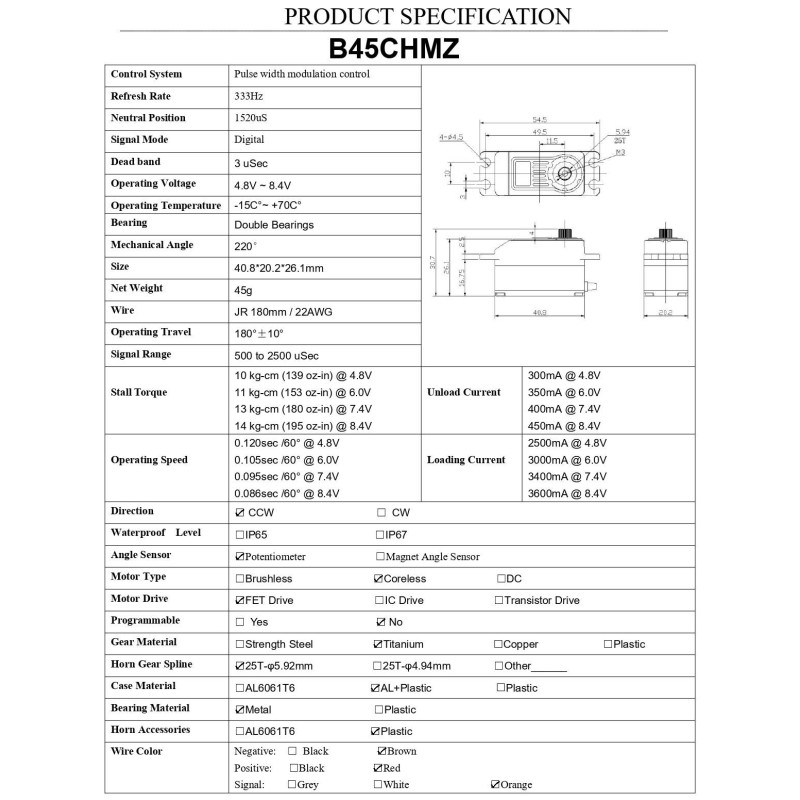

Specification:
B45CHMZ
Operating Voltage: 4.8-8.4V
Gear: Titanium
Motor: Coreless
Size: 40.8*20.2*26.1mm (1.60 x 0.79 x 1.02 in)

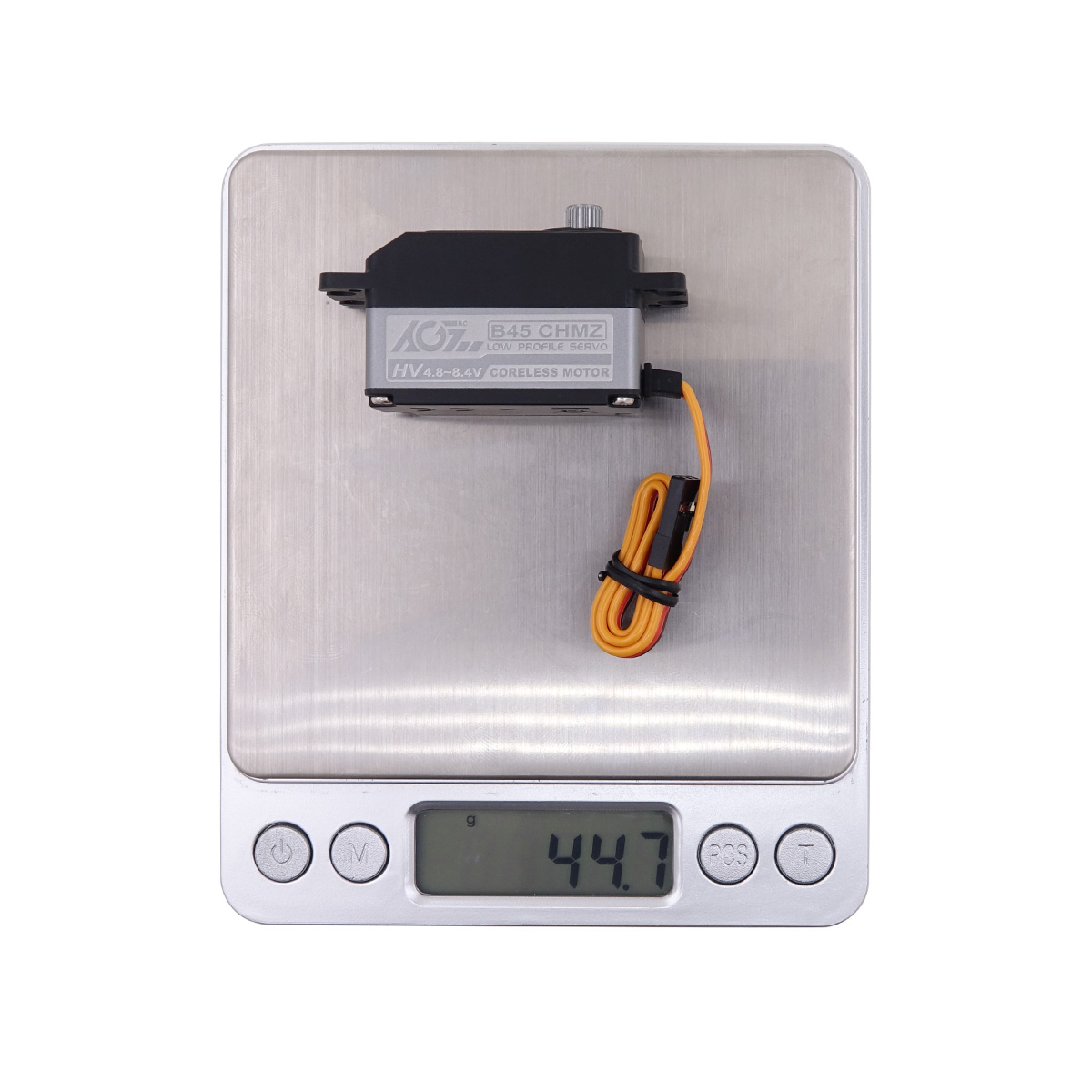

Weight: 45g
Connector Wire: JR 180mm
Stall Torque
10 kg-cm (139 oz-in) @ 4.8V
11 kg-cm (153 oz-in) @ 6.0V
13 kg-cm (180 oz-in) @ 7.4V
14 kg-cm (195 oz-in) @ 8.4V
Operating Speed
0.120sec /60° @ 4.8V
0.105sec /60° @ 6.0V
0.095sec /60° @ 7.4V
0.086sec /60° @ 8.4V
Unload Current
300mA @ 4.8V
350mA @ 6.0V
400mA @ 7.4V
450mA @ 8.4V
Loading Current
2500mA @ 4.8V
3000mA @ 6.0V
3400mA @ 7.4V
3600mA @ 8.4V
