AGFRC B45CHM V2 18kg 0.110sec Programmable Coreless Motor Metal Gear Digital Low Profile Servo For 1/12 RC Cars/Helicopter Robot
AGFRC B45CHM V2 18kg 0.110sec Programmable Coreless Motor Metal Gear Digital Low Profile Servo For 1/12 RC Cars/Helicopter Robot
AGFRC B45CHM V2 18kg 0.110sec Programmable Coreless Motor Metal Gear Digital Low Profile Servo For 1/12 RC Cars/Helicopter Robot
AGFRC B45CHM V2 18kg 0.110sec Programmable Coreless Motor Metal Gear Digital Low Profile Servo For 1/12 RC Cars/Helicopter Robot
AGFRC B45CHM V2 18kg 0.110sec Programmable Coreless Motor Metal Gear Digital Low Profile Servo For 1/12 RC Cars/Helicopter Robot
AGFRC B45CHM V2 18kg 0.110sec Programmable Coreless Motor Metal Gear Digital Low Profile Servo For 1/12 RC Cars/Helicopter Robot
AGFRC B45CHM V2 18kg 0.110sec Programmable Coreless Motor Metal Gear Digital Low Profile Servo For 1/12 RC Cars/Helicopter Robot
AGFRC B45CHM V2 18kg 0.110sec Programmable Coreless Motor Metal Gear Digital Low Profile Servo For 1/12 RC Cars/Helicopter Robot
AGFRC B45CHM V2 18kg 0.110sec Programmable Coreless Motor Metal Gear Digital Low Profile Servo For 1/12 RC Cars/Helicopter Robot
AGFRC B45CHM V2 18kg 0.110sec Programmable Coreless Motor Metal Gear Digital Low Profile Servo For 1/12 RC Cars/Helicopter Robot
AGFRC B45CHM V2 18kg 0.110sec Programmable Coreless Motor Metal Gear Digital Low Profile Servo For 1/12 RC Cars/Helicopter Robot
AGFRC B45CHM V2 18kg 0.110sec Programmable Coreless Motor Metal Gear Digital Low Profile Servo For 1/12 RC Cars/Helicopter Robot
Specifications
Operating Voltage :
4.8V ~ 8.4V
Mechanical Angle :
220
cpu :
other
Display Type :
Toy components
Size :
40.8*20.2*26.5mm
MOQ :
10 pieces
Place of Origin :
China, GuangDongChina
storage capacity :
-
Control System :
Pulse width Modulation Control
Net Weight :
48g
style :
Commercial
Operating System :
Other
Type :
Commercial
Style :
Radio Control Car Toy
Price :
$24-30 / piece
screen resolution :
-
Signal Mode :
Digital
function :
digital servo fixed wing
feature :
steering engine
private mold :
No
ram :
-
Motor Type :
Coreless
Bearing :
Double Bearings
material :
Metal
Brand :
AGFRC
Description
Product Features
Signal Mode Digital
Size 40.8*20.2*26.5mm
screen resolution -
place of origin GuangDong,China
Control System Pulse width Modulation Control
Bearing Double Bearings
Brand AGFRC
Type Toy components
Mechanical Angle 220.
feature steering engine
material Metal
Operating Voltage 4.8V ~ 8.4V
function digital servo, fixed wing
Motor Type Coreless
storage capacity -
private mold No
Style Radio Control Car Toy
style Commercial
Net Weight 48g
ram -
AGFRC B45CHM V2 18kg 0.110sec Programmable Coreless Motor Metal Gear Digital Low Profile Servo For 1/12 RC Cars/Helicopter Robot
AGFRC B45CHM V2 18kg 0.110sec Programmable Coreless Motor Metal Gear Digital Low Profile Servo For 1/12 RC Cars/Helicopter Robot
AGFRC B45CHM V2 18kg High Torque 0.110sec Programmable Coreless Motor 180 Degree Servo For 1/12 RC Cars/Helicopter
AGFRC B45CHM V2 180 degree potentiometer angle sensor programmable digital low profile servo, with coreless motor driven, 4.8-8.4V nominal operating voltage. To ensure the smooth operation of servo, the combination of titanium gears and steel gear are used. Middle CNC aluminium case to provide servo good heat dissipation function and the appropriate temperature in operation. Good performance, light weight and the flexible short body which can be a common use for RC cars, plane, robots, mechanical arms etc.
Plastic CNC Aluminium Shell
Metal Double Ball Bearings
Splash-Proof and Dust-Proof
Potentiometer Angle Sensor
Smoother Operation Coreless Motor
More Durable Steel Gear And Titanium Gears
Ideal for 1/10 1/12 on-road, off-road and truck cars, small size helicopter etc. which asked high torque output application.

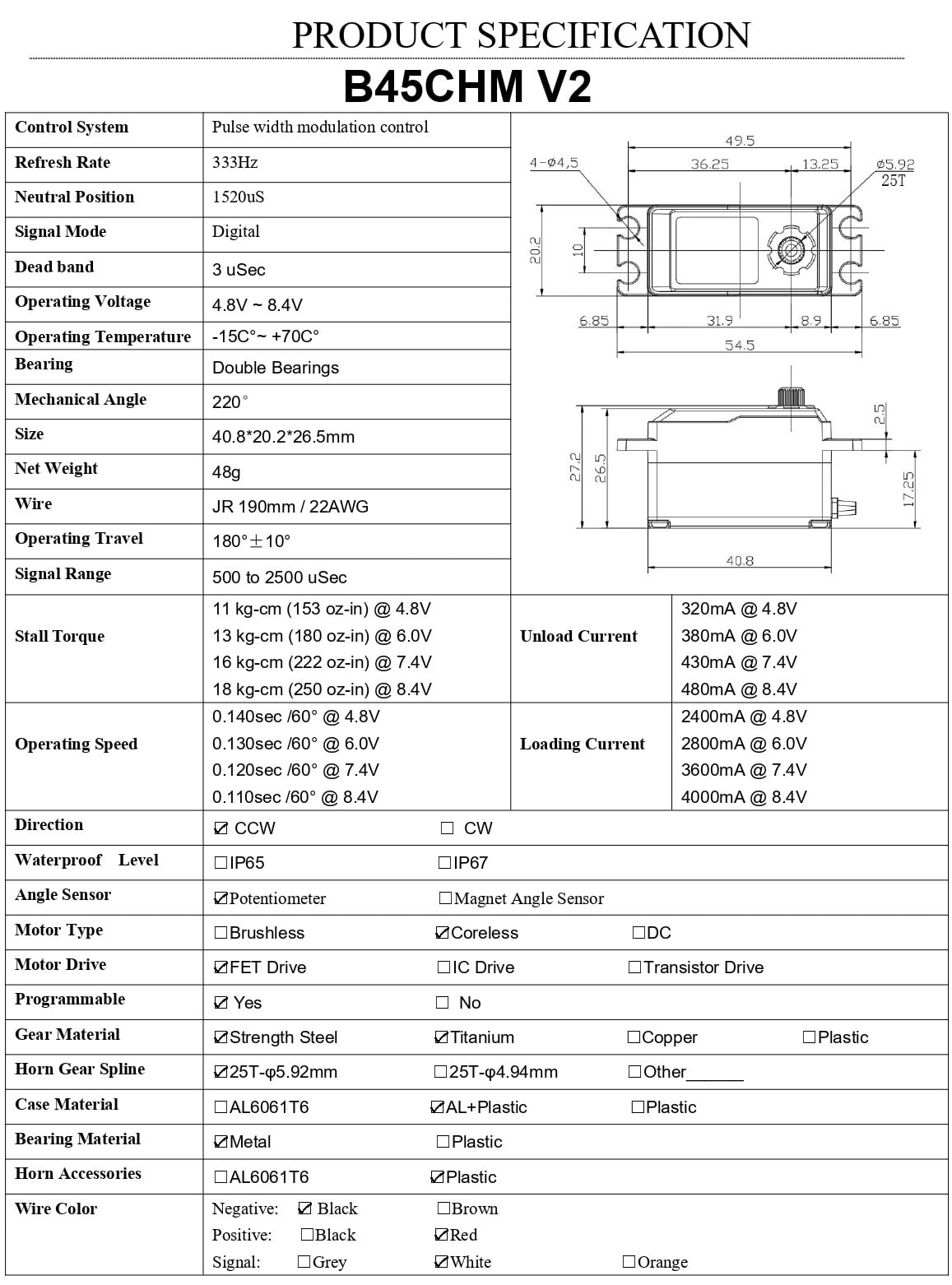

Item name
B45CHM V2
Operating Voltage
4.8V ~ 8.4V
Operating Speed
0.140sec /60° @ 4.8V
0.130sec /60° @ 6.0V
0.120sec /60° @ 7.4V
0.110sec /60° @ 8.4V
Stall Torque
11 kg-cm (153 oz-in) @ 4.8V
13 kg-cm (180 oz-in) @ 6.0V
16 kg-cm (222 oz-in) @ 7.4V
18 kg-cm (250 oz-in) @ 8.4V
Programmable
Yes
Operating Temperature
-15C°~ 70C°
Bearing
Double Bearings
Signal Range
500 to 2500 uSec
Mechanical Angle
220°
Motor Type
Coreless
Angle Sensor
Potentiometer
Gear Material
Strength Steel
Case Material
AL Plastic
Bearing Material
Metal
Size
40.8*20.2*26.5mm
Net Weight
48g
Wire
JR 190mm / 22AWG
