AGFRC A280BVSW 4S 16.8V 128KG Super Torque 0.077Sec Digital Brushless HV Metal Gear Waterproof Servo 1/5 RC Cars/Trucks Robot
AGFRC A280BVSW 4S 16.8V 128KG Super Torque 0.077Sec Digital Brushless HV Metal Gear Waterproof Servo 1/5 RC Cars/Trucks Robot
AGFRC A280BVSW 4S 16.8V 128KG Super Torque 0.077Sec Digital Brushless HV Metal Gear Waterproof Servo 1/5 RC Cars/Trucks Robot
AGFRC A280BVSW 4S 16.8V 128KG Super Torque 0.077Sec Digital Brushless HV Metal Gear Waterproof Servo 1/5 RC Cars/Trucks Robot
AGFRC A280BVSW 4S 16.8V 128KG Super Torque 0.077Sec Digital Brushless HV Metal Gear Waterproof Servo 1/5 RC Cars/Trucks Robot
AGFRC A280BVSW 4S 16.8V 128KG Super Torque 0.077Sec Digital Brushless HV Metal Gear Waterproof Servo 1/5 RC Cars/Trucks Robot
AGFRC A280BVSW 4S 16.8V 128KG Super Torque 0.077Sec Digital Brushless HV Metal Gear Waterproof Servo 1/5 RC Cars/Trucks Robot
AGFRC A280BVSW 4S 16.8V 128KG Super Torque 0.077Sec Digital Brushless HV Metal Gear Waterproof Servo 1/5 RC Cars/Trucks Robot
AGFRC A280BVSW 4S 16.8V 128KG Super Torque 0.077Sec Digital Brushless HV Metal Gear Waterproof Servo 1/5 RC Cars/Trucks Robot
AGFRC A280BVSW 4S 16.8V 128KG Super Torque 0.077Sec Digital Brushless HV Metal Gear Waterproof Servo 1/5 RC Cars/Trucks Robot
Specifications
Type :
Educational Robots, servo
Bearing :
Five Ball Bearings
private mold :
No
Operating Voltage :
7.4V ~ 16.8V
material :
Metal
Mechanical Angle :
No Limit
Style :
Radio Control Toy
Display Type :
-
ram :
Other
Place of Origin :
China, China
Wire :
TYU+JST 300mm / 22AWG
Operating System :
-
style :
Educational
Motor Type :
Brushless
MOQ :
2 pieces
feature :
Digital servo
cpu :
-
Control System :
Pulse width Modulation Control
screen resolution :
1280X720
Brand :
AGFRC
Price :
$127-262 / piece
function :
fixed wing Toy components
Scale :
1:5
storage capacity :
-
Description
Product Features
Scale 1:5
place of origin China
Control System Pulse width Modulation Control
Wire TYU+JST 300mm / 22AWG
Bearing Five Ball Bearings
Brand AGFRC
Type servo
Mechanical Angle No Limit
feature Digital servo
Display Type -
material Metal
Operating Voltage 7.4V ~ 16.8V
function fixed wing, Toy components
Motor Type Brushless
storage capacity -
private mold No
Style Radio Control Toy
style Educational
Operating System -
Signal Range 500 to 2500 uSec
Net Weight 285g
AGFRC A280BVSW 4S 16.8V 128KG Super Torque 0.077Sec Digital Brushless HV Metal Gear Waterproof Servo 1/5 RC Cars/Trucks Robot
Product Description
AGFRC 4S 16.8V A280BVSW 128KG Super Torque 0.077sec Digital RC Brushless Waterproof Servo For 1/5 RC Cars/Helicopters

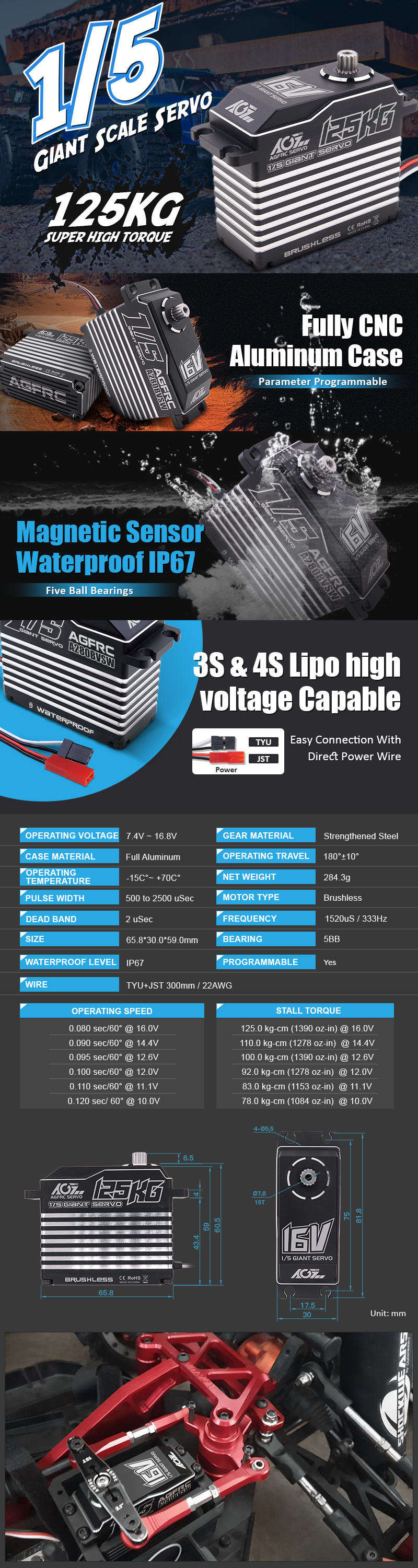

A280BVSW is a large size 1/5 servo recently come out by AGFRC. It combines long-life brushless motor with monster torque design takes the driving experience of large model enthusiasts to a new level. It is ideal for 1/5 Monster Truck, Buggy, Crawler, Large Airplanes, Robot Arm, etc. Whether you are traversing the jungle or climbing over sand dunes, 5 ball bearings and strengthening gear structure improve the crashworthiness and life of the servo.
Feature
Heat Sink Aluminum Case
Extremely Strong Steel Gears
Super Reliable Five Ball Bearing
3S And 4S Lipo Compatible
Associated 15T Aluminum Servo Horns
Magnetic Sensor Waterproof IP67
Easy Connection With Direct Power Wire
Available For Parameter Programmable
Specification
Item name
A280BVMW
Operating Voltage
4.8V ~ 8.4V
Operating Speed
0.120 sec/ 60° @ 10.0V
0.110 sec/60° @ 11.1V
0.100 sec/60° @ 12.0V
0.090 sec/60° @ 14.4V
0.080 sec/60° @ 16.0V
0.077 sec/60° @ 16.8V
Stall Torque
78.0 kg-cm (1084 oz-in) @ 10.0V
83.0 kg-cm (1153 oz-in) @ 11.1V
92.0 kg-cm (1278 oz-in) @ 12.0V
110.0 kg-cm (1528 oz-in) @ 14.4V
125.0 kg-cm (1736 oz-in) @ 16.0V
128.0 kg-cm (1779 oz-in) @ 16.8V
Programmable
Yes
Operating Temperature
-15C°~ 70C°
Bearing
Five Ball Bearings
Signal Range
500 to 2500 uSec
Mechanical Angle
No Limit
Motor Type
Brushless
Angle Sensor
Magnet Angle Sensor
Gear Material
Strength Steel
Case Material
AL6061T6
Bearing Material
Metal
Size
65.8*30.0*59.0mm
Net Weight
284.3g
Wire
TYU JST 300mm / 22AWG
