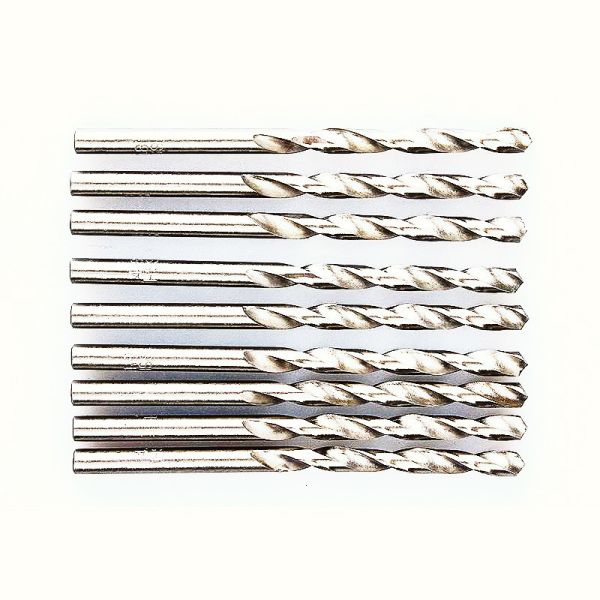

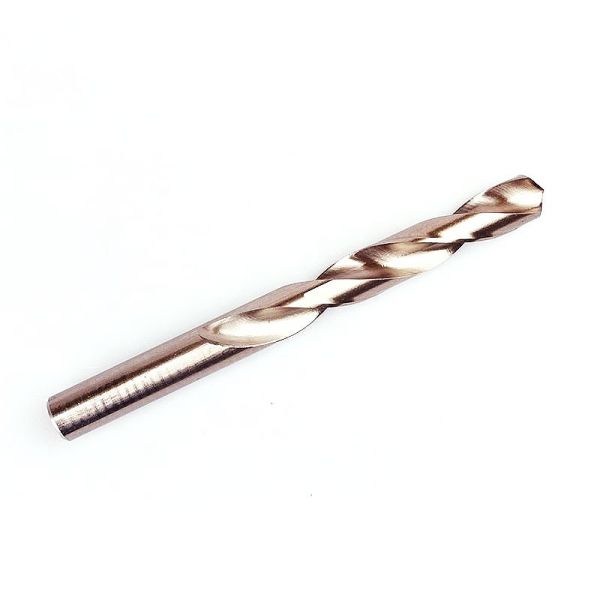

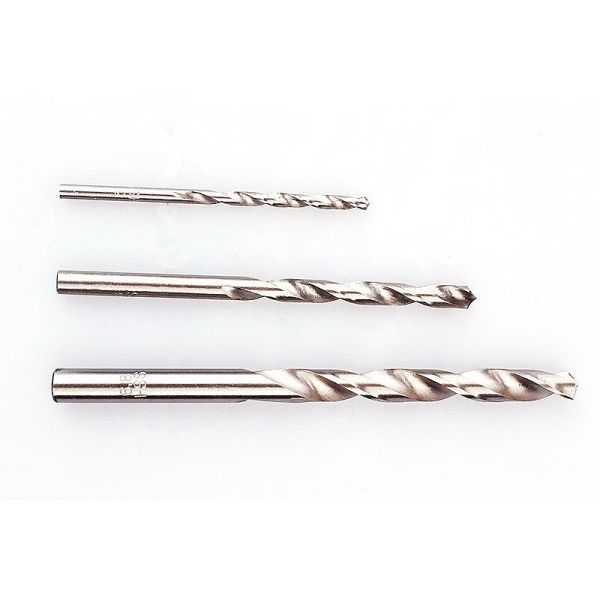

Fully Ground HSS Drill Bit 118 Degree For Thin Metal Sheet
Fully Ground HSS Drill Bit 118 Degree For Thin Metal Sheet
Fully Ground HSS Drill Bit 118 Degree For Thin Metal Sheet
Fully Ground HSS Drill Bit 118 Degree For Thin Metal Sheet
Fully Ground HSS Drill Bit 118 Degree For Thin Metal Sheet
Fully Ground HSS Drill Bit 118 Degree For Thin Metal Sheet
Fully Ground HSS Drill Bit 118 Degree For Thin Metal Sheet
Fully Ground HSS Drill Bit 118 Degree For Thin Metal Sheet
Fully Ground HSS Drill Bit 118 Degree For Thin Metal Sheet
Fully Ground HSS Drill Bit 118 Degree For Thin Metal Sheet
Fully Ground HSS Drill Bit 118 Degree For Thin Metal Sheet
Fully Ground HSS Drill Bit 118 Degree For Thin Metal Sheet
Specifications
Brand Name :
XRTOOLS
Model Number :
1mm-20mm
Certification :
ISO9000
Place of Origin :
JIANG SU
MOQ :
500PCS
Price :
0.05-2.7$/PCS
Payment Terms :
T/T, L/C, D/P
Supply Ability :
400,0000Pcs Per Mouth
Delivery Time :
30-45days
Packaging Details :
Plastic box,Double Blister card
Name :
HSS Saw Drill Bits
Material :
HSS
Type :
Twist Drill Bit
Process :
Fully Ground
Size :
3 - 12mm
Shank :
Hex Shank
Hardness :
HRC65-67
Surface :
Titanium Coating
Point angle :
118 Degree
Use :
thin metal sheet
Description

Fully Ground HSS Drill Bit 118 Degree For Thin Metal Sheet

quick detail :

1. Multi function bit drills, saws, and reams brass, aluminum, wood and plastics.

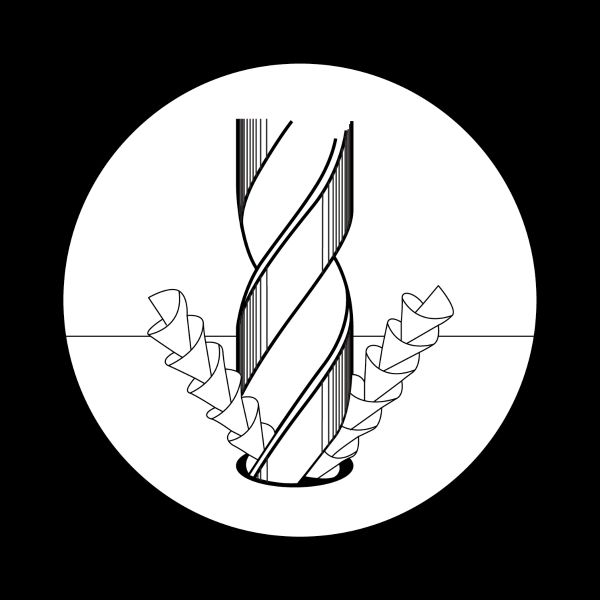

2. Cross ground cutting edges for rapid, non clog cutting.
3. Fits any electric drill or drill press. Cuts own starting hole and any sharp in any direction tool is moved.
4.118 Degree,135degree splint point, Dia. 6 and 8mm Length: 90mm, other sizes available.
5. HSS saw drill is for milling any type of contour in thin-walled materials.
6 Cutting Saw Drill Bit are specially designed to make grooves on your project, suitable for wood, aluminium, plastic,

and thin metal sheet.

HSS Drill Bits
Manufacturing Surface Finish Sharpening
White Black B&W Tin Coated Amber Black&Gold 118° 135°S.P. Turto Max 118°S.P Web Thinning
Rolled Forged √ √ √ √ √
Rolled Polished √ √ √ √ √ √ √ √
Fully Ground √ √ √ √ √ √ √ √ √ √
Milled √ √ √ √ √ √ √
Standards DIN338,DIN1897,DIN340,DIN1869,DIN345,DIN333
Jobber length,ScrewMachine Length,Taper length,Aircraft Extension
Material HSS4241,HSS4341,HSS6542(M2),HSS CO5%(M35),HSS CO8%(M42)
Shank Straight shank(Parallel shank), Reduced Shank, hex shank,1/4″Quick change shank,3Flats shank,1/2"shank,3/8"shank
Helix Angle Type N,Type W,Type H
Rotating Right Hand,Left Hand
Flute Normal,parabolic

HSS GRADE HRC(Rockwell Hardness)
Mo2Cr4Vsi--4241 60-62
Mo3Cr4Vsi--4341 62-65
Mo3Cr4V---9341 63-66
Mo5Cr4V2-6542/M2 63-66
Mo5Cr4V2Co5-M35 64-67 HSS Co5%

size :

Diameter (mm) Flute Length (mm) Overall Length (mm) Diameter (mm) Flute Length (mm) Overall Length (mm)
3.0 33 61 6.5 63 101
3.2 36 65 7.0 69 109
3.5 39 70 7.5 69 109
4.0 43 75 8.0 75 117
4.2 43 75 8.5 75 117
4.5 47 80 9.0 81 125
9.5 81 125 15.0 114 169
10.0 87 133 15.5 120 178
10.5 87 133 16.0 120 178
12.0 101 151 17.5 130 191
12.5 101 151 18.0 130 191

How to Sharpen the HSS Drill Bit?

You can Sharpen the HSS Drill Bit when the chipping length is below 0.02,” or

drilled holes are out of the tolerance. When the drilling produces more noise is

another sign of sharpening. You can use a file or grinder made with carbide or

diamond. The cutting angle should maintain according to the material requirement.

Workpiece Material Point Angle Helix Angle Lip Relief Angle
Aluminum 90 to 135 32 to 48 12 to 26
Brass 90 to 118 0 to 20 12 to 26
Cast iron 90 to 118 24 to 32 7 to 20
Mild Steel 118 to 135 24 to 32 7 to 24
Stainless Steel 118 to 135 24 to 32 7 to 24
Plastics 60 to 90 0 to 20 12 to 26
