3mm DIN338 Straight ShankHSS Twist Drill Bit with Roll Forged
3mm DIN338 Straight ShankHSS Twist Drill Bit with Roll Forged
3mm DIN338 Straight ShankHSS Twist Drill Bit with Roll Forged
3mm DIN338 Straight ShankHSS Twist Drill Bit with Roll Forged
3mm DIN338 Straight ShankHSS Twist Drill Bit with Roll Forged
3mm DIN338 Straight ShankHSS Twist Drill Bit with Roll Forged
3mm DIN338 Straight ShankHSS Twist Drill Bit with Roll Forged
3mm DIN338 Straight ShankHSS Twist Drill Bit with Roll Forged
3mm DIN338 Straight ShankHSS Twist Drill Bit with Roll Forged
3mm DIN338 Straight ShankHSS Twist Drill Bit with Roll Forged
Specifications
Name :
Roll Forged HSS Twist Drill Bit
Material :
High Speed Steel
Type :
Twist Drill Bit
Process :
Roll forged
Size :
1-20mm
Shank :
Straight Shank
Hardness :
HRC61-62
Surface :
Black Oxide
Point angle :
118 Degree Regular Point
Use :
Metal Drilling
Brand Name :
XRTOOLS
Model Number :
3.0MM
Certification :
ISO9000
Place of Origin :
JIANG SU
MOQ :
500PCS
Price :
0.05-2.7$/PCS
Payment Terms :
T/T, L/C, D/P
Supply Ability :
400,0000Pcs Per Mouth
Delivery Time :
30-45days
Packaging Details :
Plastic box,Double Blister card
Description

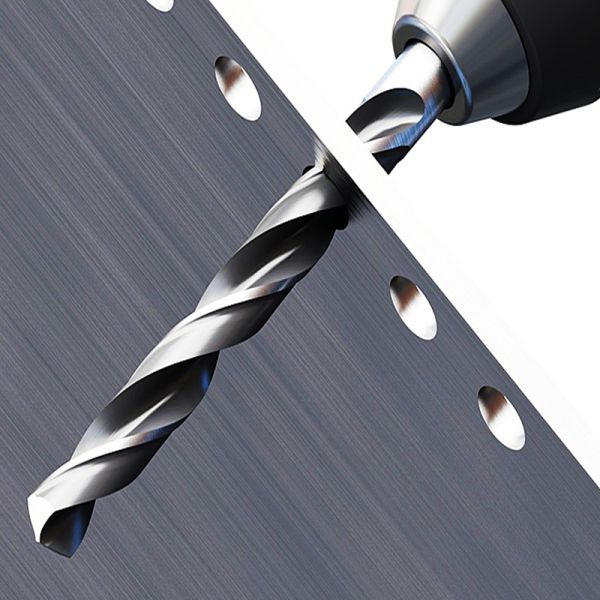

3mm DIN338 Straight ShankHSS Twist Drill Bit with Roll Forged

Description:

Rolled forged drill bit is used for drilling holes in Mild Steel, EN-9, Cast Iron, Castings, Plastics, Wood, Stainless Steel with point enhancement. It is available from diameter 2.70mm to 13.0 mm. These drills are used in bus body shops, Automobile shops, Manufacturing plants and machine shops etc. These drills are available in point angles of 118 and 135 Degrees.

Designed to offer the best balance between drilling performance and price,Specially designed tip with split point and 118-degree angled tip for precise self-centering and fast start.Good fracture resistance thanks to the precise roll forging production process.

1.High-speed steel tools are good for most general purpose applications, offering a combination of hardness and

toughness for wear resistance.
2.Universal 118° point shape for drilling a wide selection of materials.
3.Precision ground point, flutes, body, clearance and drill diameter for the ultimate in accuracy and performance.
4.Ground flutes provide fast chip removal to maximize accuracy and efficiency along the full working surface of the bit.
5.DIN 338 series drill bits are ideal for many trade and industrial projects.

qucik detail :

1 Product Name: Roll Forged HSS Twist Drill Bit
2 Material: High Speed Steel
3 Process: Roll Forged
4 Standard: DIN338
5 Point Angle: 118 Degree Regular Point
6 Shank: Straight Shank
7 Helix Angle: Type N Spiral Flute Right Hand
8 Size: 1-20mm
9 Surface Finish: Black Oxide
10 Application: Metal Drilling
11Type: Twist Drill Bit​

Any sizes are available for your requirements:

Standard: DIN 338/340/345/1869/1897; ASME Jobber Length
Material: HSS 4241 / 9341 / M2 / M35 / M42
Process: Full Ground / Milled / Roll Forged
Slipt Point: 135°/ 118°
Surface: Bright / Tin-coated / Black Oxide / Black and Yellow / Black and White / Sandblast
Shank: 1/2" and 3/8" Reduced Shank /Straight Shank / Taper Shank / Three-Flat Shank
Sizes: Metric sizes and Inch size
Package: Metal / Plastic / Wood

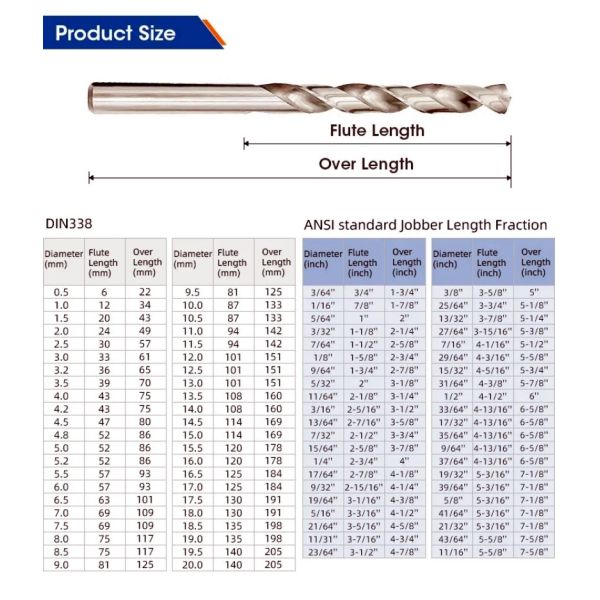

Size:

3mm DIN338 Straight ShankHSS Twist Drill Bit with Roll Forged

hss Roll Forged twist drill bits of Application:

  • Full range of diameters in 0.5mm increments for flexibility to cover a broad range of applications.
  • Roll forged flutes rapidly remove spoil for progressive drilling actions.
  • Ideal performance in steel and cast materials to 580 H/mm².
  • Optimal 118° grinding processes ensure drill balance, reliable performance and hole tolerance.
  • Steam tempered to improve durability.
  • HSS Jobbers can be used in: steel, non-ferrous, wood and plastics.

3mm DIN338 Straight ShankHSS Twist Drill Bit with Roll Forged

Pakcing:

3mm DIN338 Straight ShankHSS Twist Drill Bit with Roll Forged

3mm DIN338 Straight ShankHSS Twist Drill Bit with Roll Forged
