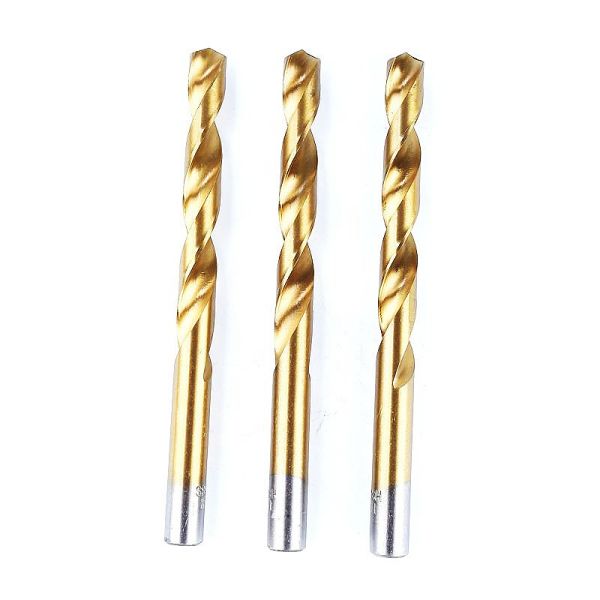

HSS Twist Drill Bit , Fully Ground HSS Heavy Duty Drill Bit For Metal Tin coated
HSS Twist Drill Bit , Fully Ground HSS Heavy Duty Drill Bit For Metal Tin coated
HSS Twist Drill Bit , Fully Ground HSS Heavy Duty Drill Bit For Metal Tin coated
HSS Twist Drill Bit , Fully Ground HSS Heavy Duty Drill Bit For Metal Tin coated
HSS Twist Drill Bit , Fully Ground HSS Heavy Duty Drill Bit For Metal Tin coated
HSS Twist Drill Bit , Fully Ground HSS Heavy Duty Drill Bit For Metal Tin coated
HSS Twist Drill Bit , Fully Ground HSS Heavy Duty Drill Bit For Metal Tin coated
HSS Twist Drill Bit , Fully Ground HSS Heavy Duty Drill Bit For Metal Tin coated
HSS Twist Drill Bit , Fully Ground HSS Heavy Duty Drill Bit For Metal Tin coated
HSS Twist Drill Bit , Fully Ground HSS Heavy Duty Drill Bit For Metal Tin coated
HSS Twist Drill Bit , Fully Ground HSS Heavy Duty Drill Bit For Metal Tin coated
HSS Twist Drill Bit , Fully Ground HSS Heavy Duty Drill Bit For Metal Tin coated
Specifications
Brand Name :
XRTOOLS
Model Number :
1mm-20mm
Certification :
ISO9000
Place of Origin :
JIANG SU
MOQ :
500PCS
Price :
0.05-2.7$/PCS
Payment Terms :
T/T, L/C, D/P
Supply Ability :
400,0000Pcs Per Mouth
Delivery Time :
30-45days
Packaging Details :
Plastic box,Double Blister card
Name :
hard wood HSS drill bits
Material :
M35, M42
Type :
Twist Drill Bit
Process :
Fully Ground
Size :
3 - 12mm
Shank :
Straight Shank
Hardness :
HRC65-67
Surface :
Black and Amber Color
Point angle :
135 Degree Split Point
Use :
mild steel, cast iron
Description

HSS Twist Drill Bit , Fully Ground HSS Heavy Duty Drill Bit For Metal

quick detail :

1 Fully ground from industrial quality high speed steel.
2 135 degree split point for quick start and no walk application.
3 Black oxide finished spiral flute with gold ferrous oxide finished web and shank for longer life.
4 Ideal for drilling steel, stainless steel, heal resistant steel, cast steel, sintered metal and super alloy.
Drill Bits Set are available on request.
5 Metric Size are available (DIN338 Standard)

size :

Diameter (mm) Flute Length (mm) Overall Length (mm) Diameter (mm) Flute Length (mm) Overall Length (mm)
1.0 12 34 5.0 52 86
1.5 20 43 5.2 52 86
3.0 33 61 6.5 63 101
3.2 36 65 7.0 69 109
3.5 39 70 7.5 69 109
4.0 43 75 8.0 75 117
4.2 43 75 8.5 75 117
4.5 47 80 9.0 81 125
9.5 81 125 15.0 114 169
10.0 87 133 15.5 120 178
10.5 87 133 16.0 120 178
12.0 101 151 17.5 130 191
12.5 101 151 18.0 130 191
13.0 101 151 18.5 135 193

Usage and Cutting Speed?

HSS drill bits are used to drill mild steel, cast iron, softwood, plastic, hardwood, fiber, and many soft materials.

You can use a 118-degree angle for soft material drilling such as aluminum, soft wood etc. And 135-degree for

the hard material drilling such as cast iron using the HSS drill bits.
