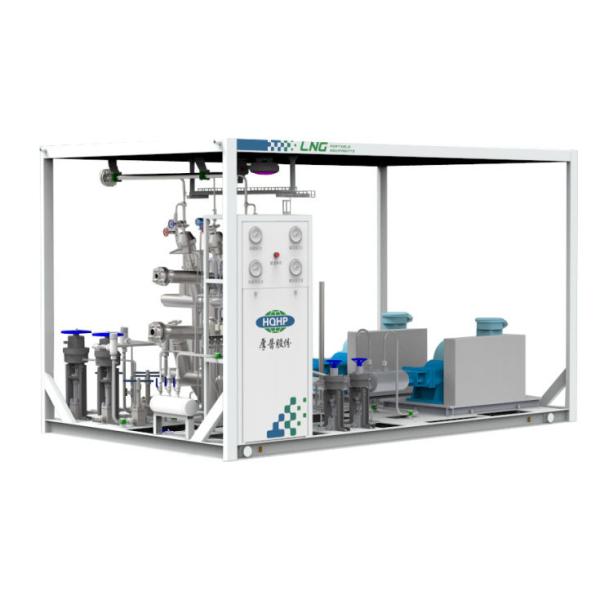

Double Pump LCNG Refueling Skid
Double Pump LCNG Refueling Skid
Specifications
Description

The products are mainly composed of submersible pump, cryogenic vacuum pump, vaporizer, cryogenic valve, pipeline system, pressure sensor, temperature sensor, gas probe, and emergency stop button.

  • Product features
  • Specifications
  • Ask now

Product features

Perfect quality management system, reliable product quality, long service life.

LCNG Double Pump Filling Pump Skid

● Comprehensive security protection design, meet GB/CE standards.
● Integrated skid-mounted structure, high degree of integration, on-site installation is fast and simple.
● The use of double-layer stainless steel high vacuum pipeline, short pre-cooling time, fast pressurization speed.

LCNG Double Pump Filling Pump Skid

● Typical exhaust capacity of 1500L/h, while compatible with international mainstream brand low temperature piston pump.
● Dedicated plunger pump starter saves energy and reduces carbon emissions.
● Configure special instrument panel installation pressure, liquid level, temperature, etc.
● Standardized assembly line production mode, the annual output > 200 sets.

Specifications

Serial number

Project

Parameters/specifications

1

The total power of the whole machine

≤75 kW

2

Design displacement (single pump)

≤ 1500 l/h

3

Power supply

3Phase/400V/50HZ

4

Equipment weight

3000 kg

5

Maximum outlet pressure

25 MPa

6

Operating temperature

-162°C

7

Explosion-proof markings

Ex d e ib mb II.B T4 Gb

8

Size

4000×2438×2400 mm

Application Scenarios

This set of equipment is used for stationary LCNG filling station, CNG daily filling capacity of 15000Nm3/d, can achieve unattended.

Double Pump LCNG Refueling Skid

mission

Efficient use of energy to improve the human environment
