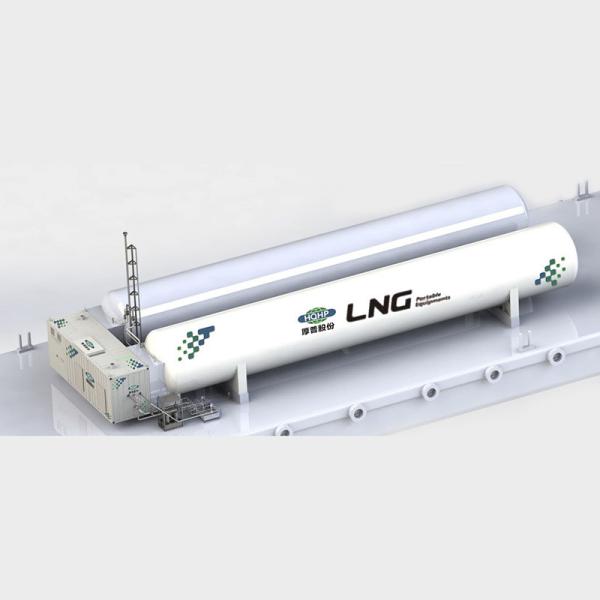

Double tank marine bunkering skid
Double tank marine bunkering skid
Specifications
Description

The maximum bunkering capacity is 65m³/h. It is mainly used in on-water LNG bunkering stations. With PLC control cabinet, power drag cabinet and LNG filling control cabinet, functions such as bunkering, unloading and storage can be realized.

  • Product features
  • Specifications
  • Ask now

Product features

Modular design, compact structure, small footprint, easy installation and use.

Double tank marine bunkering skid

● Approved by CCS.
● The process system and electrical system are arranged in partitions, which is convenient for maintenance.

● Fully enclosed design, using forced ventilation, reducing the dangerous area, high safety.
● Can be adapted to tank types with diameters of Φ3500～Φ4700mm, with strong versatility.
● Can be customized according to user needs.

Specifications

Model HPQF sery Design temperature -196～55℃
Dimension(L×W×H) 8500×2500×3000 (mm) (Exclusive of tank) Total power ≤80KW
Weight 9000 kg Power AC380V, AC220V, DC24V
Bunkering capacity ≤65m³/h Noise ≤55dB
Medium LNG/LN2 Trouble free working time ≥5000h
Design pressure 1.6MPa Measurement error ≤1.0%
Working pressure ≤1.2MPa Ventilation capacity 30 times/H
*Note: It needs to be equipped with a suitable fan to meet the ventilation capacity.
Double tank marine bunkering skid

Application

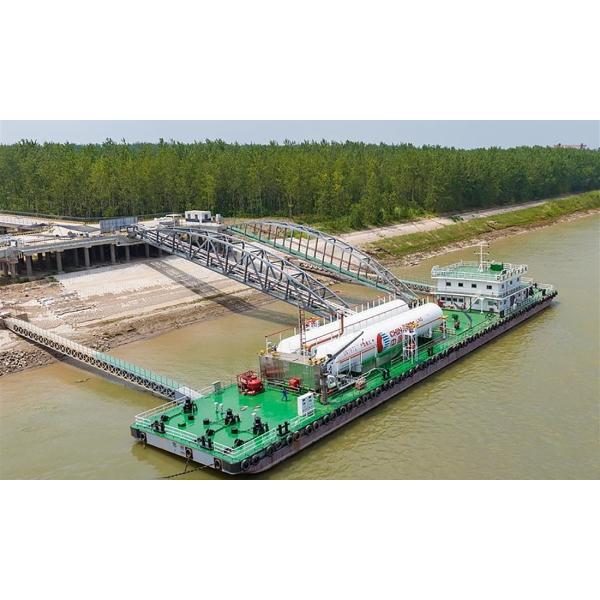

The dual-tank marine bunkering skid is suitable for large-scale floating LNG bunkering stations with unlimited installation space.
