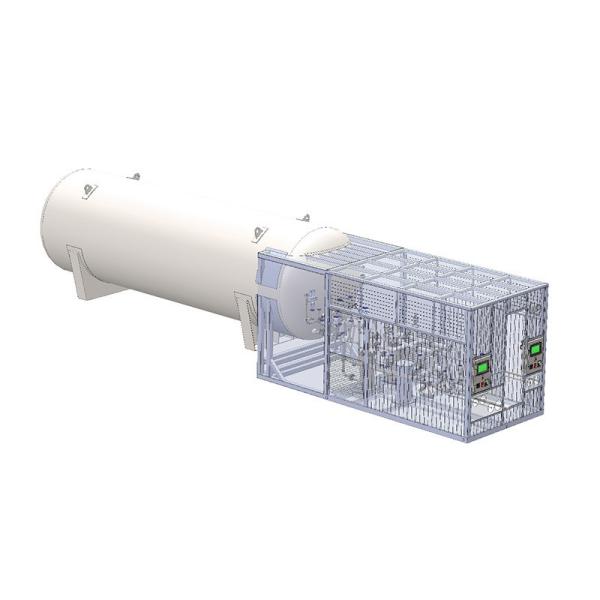

Single tank marine bunkering skid
Single tank marine bunkering skid
Specifications
Description

The maximum volume is 40m³/h. It is mainly used in the on-water LNG bunkering station with the PLC control cabinet, the power cabinet and the LNG bunkering control cabinet, the functions of bunkering, unloading and storage can be realized.

  • Product features
  • Specifications
  • Ask now

Product features

Modular design, compact structure, small footprint, easy installation and use.

Single tank marine bunkering skid

● Approved by CCS.
● Process system and electrical system are arranged in partitions for easy maintenance.
● Fully enclosed design, using forced ventilation, reducing the dangerous area, high safety.

● Can be adapted to tank types with diameters of Φ3500～Φ4700mm, with strong versatility.
● Can be customized according to user needs.

Specifications

Model HPQF series Designed temperature -196～55℃
Dimension(L×W×H) 6000×2550×3000(mm)(Exclusive of tank) Total power ≤50kW
Weight 5500 kg Power AC380V, AC220V, DC24V
Bunkering capacity ≤40m³/h Noise ≤55dB
Medium LNG/LN2 Trouble free working time ≥5000h
Design pressure 1.6MPa Measurement error ≤1.0%
Working pressure ≤1.2MPa Ventilation capacity 30 times/H
*Note: It needs to be equipped with a suitable fan to meet the ventilation capacity.

Application

This product is suitable for small and medium-sized barge type LNG bunkering stations or LNG bunkering vessels with small installation space.

Single tank marine bunkering skid

mission

Efficient use of energy to improve the human environment
