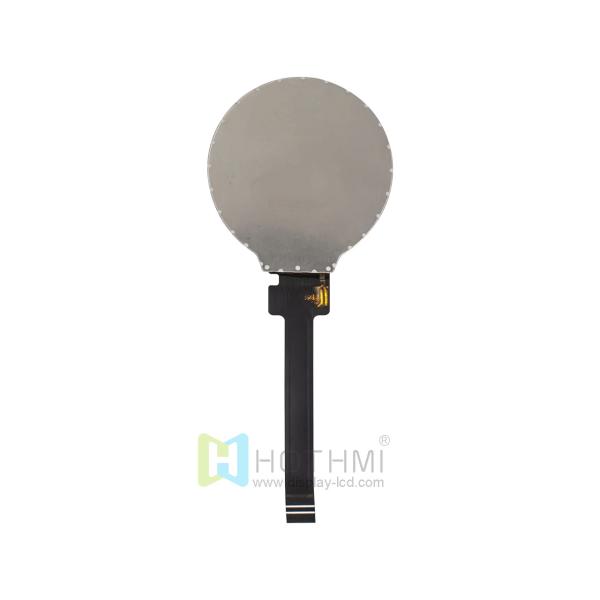

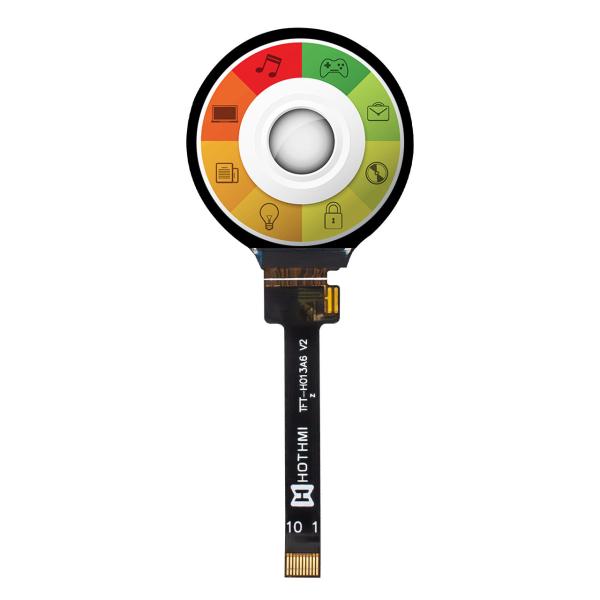

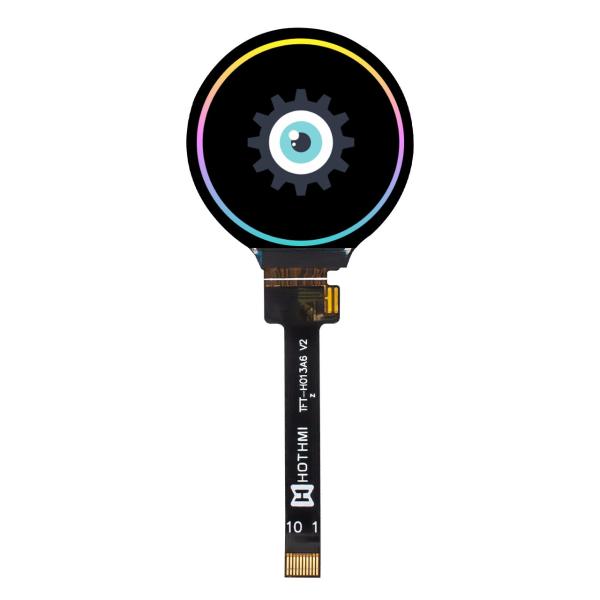

1.3 inch Round TFT LCD Display Module with Optical Bonding is a 1.3-inch diameter circular IPS TFT-LCD screen with a resolution of 240x240 pixels. Using an IPS panel, the display offers a wider viewing angle, high contrast (1,000:1), 750cd/m2 brightness (typical), and an anti-glare surface.
This 1.3 inch Round TFT LCD Display Module with Optical Bonding is controlled by the GC9A01 driver IC and supports communication via the SPI interface. The supply voltage range is 1.8V to 2.8V, with a typical value of 2.8V. The operating temperature covers -20℃ to +70℃, and the storage temperature range is -30℃ to +80℃.
Suitable for a variety of compact devices such as smart meters, wearable devices, Android/RK motherboards, and home automation products. This is a product without touch function, and we can also provide models with touch. The characteristics of these models are high brightness and the product is full viewing angle. Other 1.3 inch round TFT LCD products in this series include TFT-H013A6QQIGC5N10 and TFT-H013A6QQIGC7N10-V1 with the same brightness but different wiring characteristics. At the same time, we have configured the module HTM-H013A6-UART-A02 with a driver board for these 1.3-inch round displays.For the same size circular display, we also provide 16PIN MIPI interface TFT-H013A1HQIST3N16 circular display, which may provide you with more choices.
