Specifications
Brand Name :
HOTHMI
Model Number :
TFT-H016A01ZGIST4N20
Place of Origin :
dongguan,China
MOQ :
2
Payment Terms :
L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability :
99999
Delivery Time :
25 days
Product Type :
Circular TFT
Dimensions (mm) :
400x400
Effective Size (mm) :
39.84x39.84
Product Application :
Smart Home
Perspective :
Full Perspective
Display Content :
400x400
Display Size :
1.6"
Description

If you need to purchase please contact https://www.display-lcd.com/

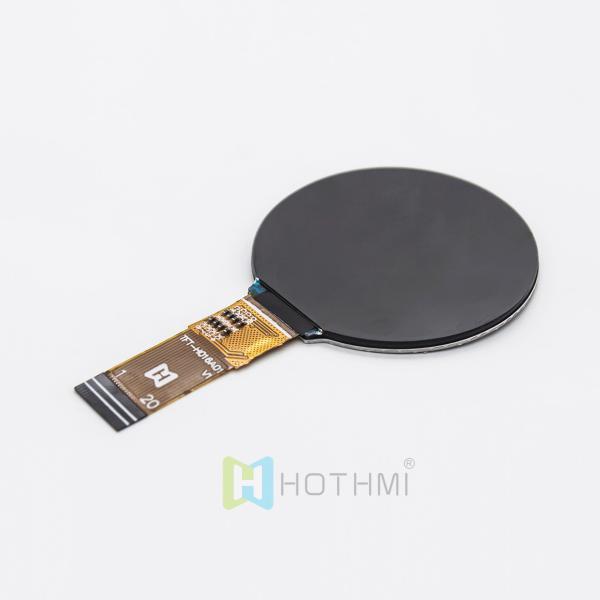

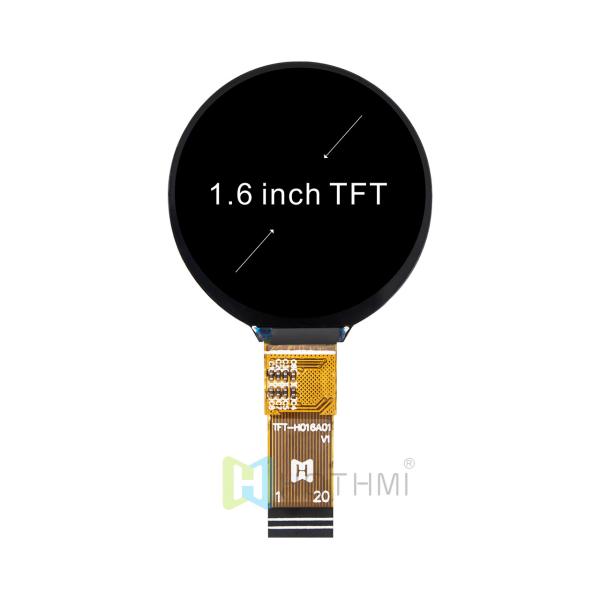

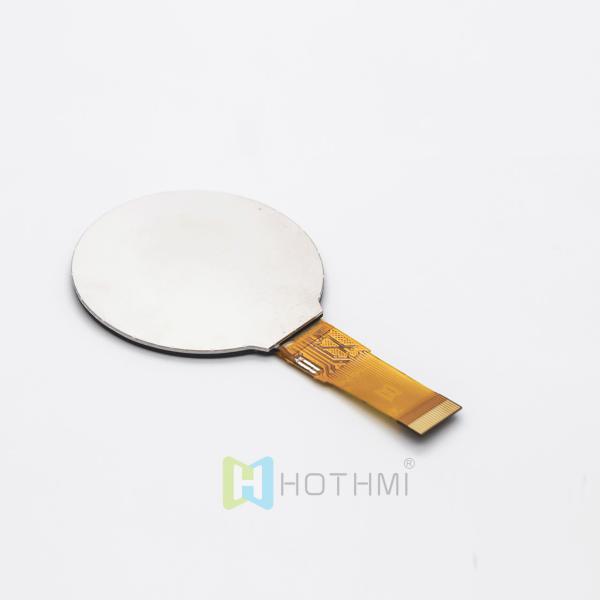

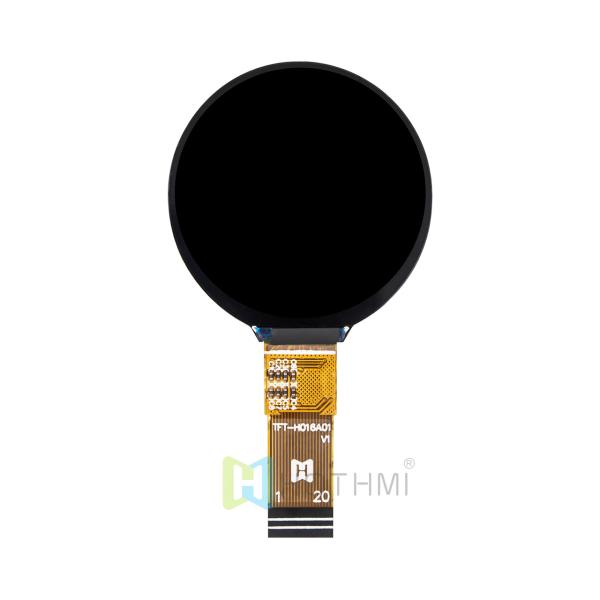

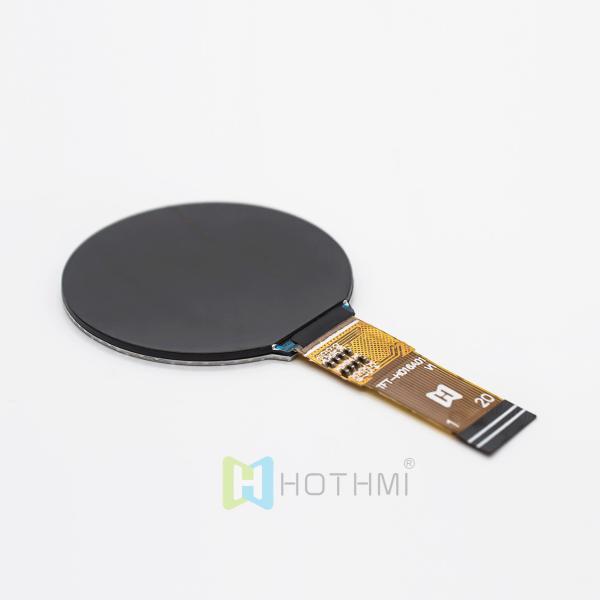

1.6 inch round TFT LCD display with MIPI interface and 400x400 ST7797 Controller

This 1.6-inch circular TFT LCD display TFT-H016A01ZGIT47N20 has a resolution of 400x400, built-in ST7797 controller, optional touch screen, high image quality, IPS wide viewing angle, high resolution, and 450cd/m2 brightness, giving this display a high-quality viewing effect.

Supports MIPI interface, , FPC connection (customizable connector).

This 1.6-inch circular TFT LCD display adopts MIPIhigh-speed mode transmission and supports low-power mode switching. The product has passed reliability tests such as high temperature, low temperature, high humidity, impact, vibration, and electrostatic discharge, and is suitable for industrial and consumer electronics fields. The initialization code includes power on reset, register configuration, and display parameter settings to ensure fast startup and stable operation.

All materials comply with environmental requirements and RoHS standards. This module is widely used in various instruments, smart devices, etc., and is suitable for microcontroller development platforms such as 8051 PIC, AVR, ARDUINO, ARM, Raspberry Pi, etc. This 1.6-inch circular TFT LCD display has a wide range of applications, including wearable devices, handheld instruments, home appliances, and more. We also have other series of models for circular display screens in related sizes: circular TFT LCD .

of design, performance, and reliability makes it a great choice for a variety of applications. Don't miss out on this excellent display solution!

parameter Parameter Description unit
TFT LCD Standard TFT
Diagonal inches 1.6 " Inch
resolution 400 x RGB x 400 (TFT) dots
Dimensions 42.14x44.34x1.95 mm
Size (AA) area 39.84x39.84 mm
LCD specifications TFT, White, transparent
Display perspective 80/80/80/80 (IPS)
aspect ratio 1: 1
Backlight specifications LED, white
TFT driver chip ST7797
Touch glass type nothing
surface Anti-Glare
Display brightness four hundred and fifty cd/㎡
Operating temperature -30~+80 °C
Storage temperature -30~+80 °C

1.6 Inch Round TFT LCD Display With MIPI Interface ST7797 Controller1.6 Inch Round TFT LCD Display With MIPI Interface ST7797 Controller1.6 Inch Round TFT LCD Display With MIPI Interface ST7797 Controller1.6 Inch Round TFT LCD Display With MIPI Interface ST7797 Controller1.6 Inch Round TFT LCD Display With MIPI Interface ST7797 Controller1.6 Inch Round TFT LCD Display With MIPI Interface ST7797 Controller
