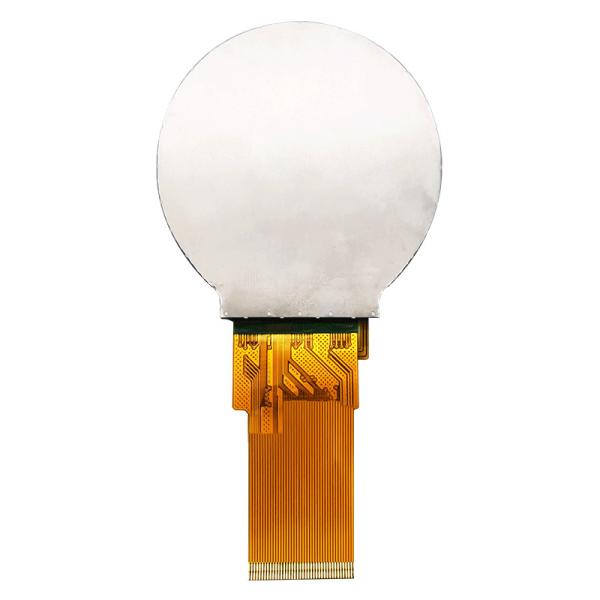

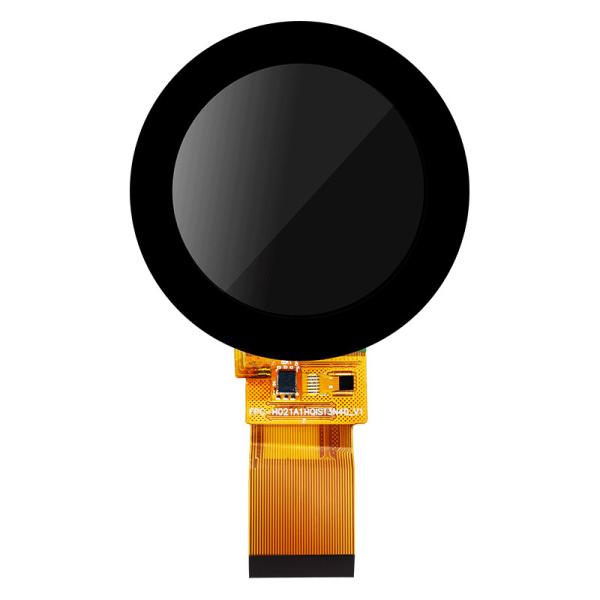

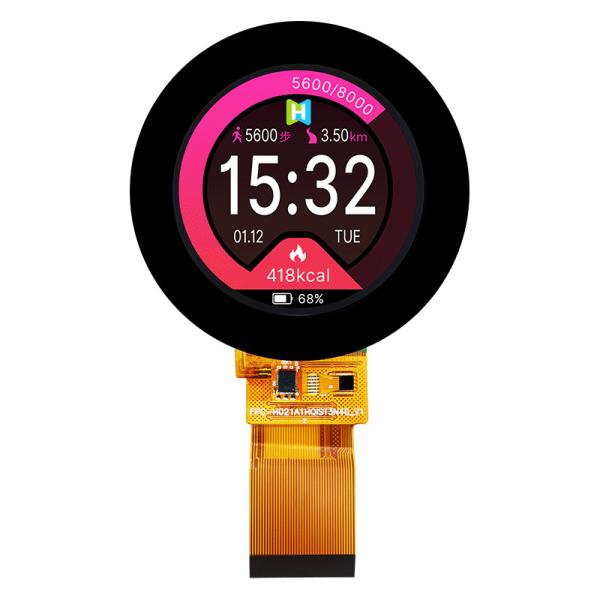

2.1 Inch Round TFT LCD Display With Capacitive Touchscreen
2.1 Inch Round TFT LCD Display With Capacitive Touchscreen
2.1 Inch Round TFT LCD Display With Capacitive Touchscreen
2.1 Inch Round TFT LCD Display With Capacitive Touchscreen
2.1 Inch Round TFT LCD Display With Capacitive Touchscreen
2.1 Inch Round TFT LCD Display With Capacitive Touchscreen
2.1 Inch Round TFT LCD Display With Capacitive Touchscreen
2.1 Inch Round TFT LCD Display With Capacitive Touchscreen
Specifications
Brand Name :
HOTHMI
Model Number :
TFT-H021A1HQIST4C40
Place of Origin :
dongguan,China
MOQ :
2
Payment Terms :
L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability :
99999
Delivery Time :
25 days
Display Content :
480x480 Pixels
Interface :
RGB+SPI
Backlight type or brightness :
450cd/m2
Viewport Window Size :
2.1"
Working temperature :
(-20~70℃)
Driver chip model :
ST7701S+CTP/FT3267
Description

If you need to purchase please contact https://www.display-lcd.com/

TFT-H021A1HQIST4C40 | 2.1inch TFT LCD display IPS round capacitive touch screen ST7701S

The TFT-H021A1HQIST4C40 is a 2.1-inch TFT LCD display with a display diameter of 2.1 inches and a resolution of 480x480 pixels. This circular TFT display features an IPS TFT-LCD capacitive touch panel with a built-in ST7701S driver IC, and communicates via an RGB interface. The TFT-H021A1HQIST4C40 utilizes an IPS panel, offering higher contrast and a pure black background when the display or pixels are off. IPS offers full viewing angles and moderate brightness, delivering excellent display quality from any angle.

This circular TFT display includes an FPC cable, allowing users to connect to the driver board via simple plug-in or soldering, ensuring safety, reliability, and high transmission efficiency. This model features capacitive touch functionality, using the CST826 capacitive driver IC, offering fast and smooth touch response, making it an ideal choice for industrial control display solutions. It has an operating temperature range of -20°C to +70°C and a storage temperature range of -30°C to +80°C. Suitable for industrial control, medical equipment, home appliances, and more.

We offer circular displays in multiple sizes. Click here to learn more aboutRound TFT LCDs.

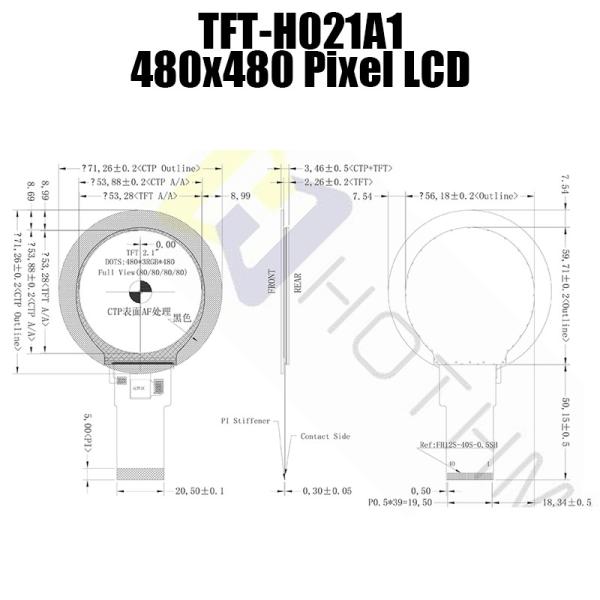

ITEM PARAMETER DESCRIPTION UNIT
TFT series TFT-H021A1HQIST4C40
Diagonal size 2.1” Inch
Resolution 480x480 Dot
Dimensions 71.26x71.26x3.46 mm
Active area (AA) 53.28x53.28 mm
LCD type 2.1” TFT Module mm
Display viewing angle Full View
Aspect ratio 1:1
Backlight type LED white
TFT driver IC ST7701S
Brightness 450cd/m2 cd/m2
Operating temperature -20~70℃ ℃
Storage temperature -30~80℃ ℃

TFT-H021A1HQIST4C40 | 2.1" Sunlight Readable LCD Display | Capacitive Touchscreen
This sunlight readable TFT with 480x480 resolution is equipped with a powerful backlight, providing visibility in bright lighting conditions including the direct sun. The 24-bit LCD display has RGB+SPI interface and a full optimal view. This Liquid Crystal Display is RoHS compliant and has a 5-point mulit-touch capacitive touchscreen.

2.1 Inch Round TFT LCD Display With Capacitive Touchscreen2.1 Inch Round TFT LCD Display With Capacitive Touchscreen2.1 Inch Round TFT LCD Display With Capacitive Touchscreen2.1 Inch Round TFT LCD Display With Capacitive Touchscreen2.1 Inch Round TFT LCD Display With Capacitive Touchscreen2.1 Inch Round TFT LCD Display With Capacitive Touchscreen2.1 Inch Round TFT LCD Display With Capacitive Touchscreen2.1 Inch Round TFT LCD Display With Capacitive Touchscreen2.1 Inch Round TFT LCD Display With Capacitive Touchscreen2.1 Inch Round TFT LCD Display With Capacitive Touchscreen

2.1 Inch Round TFT LCD Display With Capacitive Touchscreen

https://www.display-lcd.com/data/upload/admin/202402/65dc2bee77c4d.pdf
