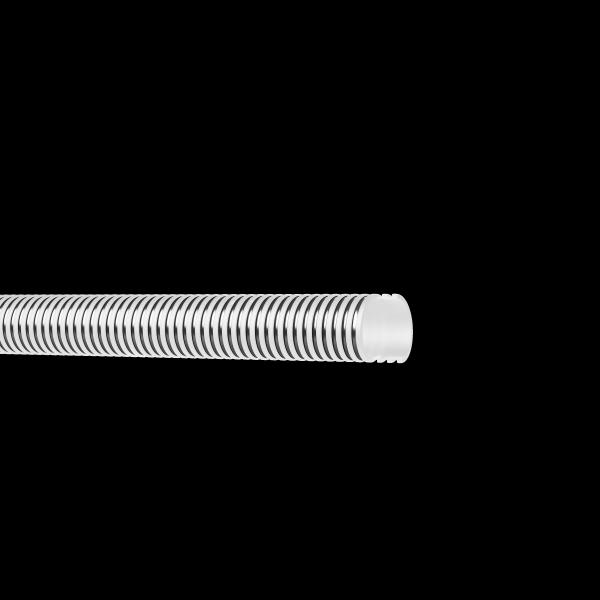

Smooth Bore PTFE Corrugated Tubing Hose With External Corrugation Spring Reinforcement
Smooth Bore PTFE Corrugated Tubing Hose With External Corrugation Spring Reinforcement
Specifications
Place of Origin :
China
Brand Name :
MEGAHOSE
Temperature Resistant :
-65℃ To 260℃
Application :
food , cosmetics ,chemical industry
Feather :
flexible hose
Hose Type :
Smooth Bore
Length :
Customized
Type :
flexible ptfe tubing
MOQ :
5pcs
Price :
Negotiation
Packaging Details :
pp packing carton packing
Delivery Time :
5-10 days
Payment Terms :
T/T, L/C
Description

PTFE Smooth Bore with External Corrugation and Spring Reinforcement

Structure

PTFE inner tube,flat outer corrugated tube, middle layer 304 spiral with spring, temperature resistant -65℃ to 260℃ .


Application

Transporting highly corrosive chemicals, hot air, hot oil, steam, etc., suitable for the food industry, cosmetics industry,chemical industry,and pharmaceutical industry.

Data sheet

PTFE Smooth Bore with External Corrugation and Spring Reinforcement
No. Inner diameter Outer
diameter		 Working pressure Burst pressure Minimum bending
radius
(mm±0.3) (mm±0.3) (psi) (mpa) (psi) (mpa) (inch) (mm)
JCC-20006-PTFE 1/4" 6.8 8.35 396 2.64 1276 8.8 0.75 19
JCC-20008-PTFE 5/16" 7.9 10.3 378 2.52 1218 8.4 0.75 19
JCC-20010-PTFE 3/8" 10 11.93 360 2.4 1160 8 0.98 25
JCC-20013-PTFE 1/2" 13.6 15.1 270 1.8 870 6 1.50 38
JCC-20016-PTFE 5/8" 16.7 18.3 236.83 1.63 725 5 1.97 50
JCC-20019-PTFE 3/4" 19.8 22 203 1.4 609 4.2 2.48 63
JCC-20025-PTFE 1" 26.4 29.4 180 1.2 580 4 2.95 75
