Internal Helical Corrugated PTFE Hose Industrial High Temp Flexible PTFE Tubing
Internal Helical Corrugated PTFE Hose Industrial High Temp Flexible PTFE Tubing
Specifications
Place of Origin :
China
Brand Name :
MEGAHOSE
Temperature range :
-70℃ to 260℃
Application :
pharmaceutical , food , chemical industry
Type :
PTFE Hose
Inner Diameter :
1/4-2 inch
Length :
Customizable
Features :
Chemical resistant, High temperature resistance, Flexible
Material :
PTFE (Polytetrafluoroethylene)
Working pressure :
Up to 60 psi
MOQ :
5pcs
Price :
Negotiation
Packaging Details :
pp packing carton packing
Delivery Time :
5-10 days
Payment Terms :
T/T, L/C
Description

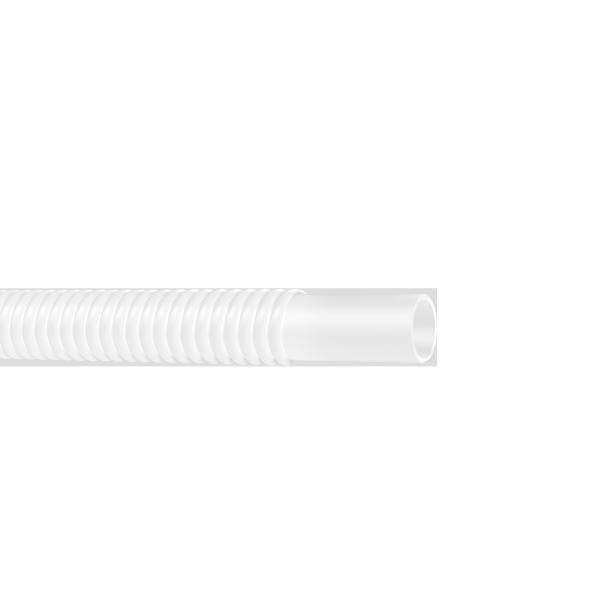

PTFE Internal Helical Corrugated Hose

Structure

The inner and outer walls of the hose are corrugated PTFE hoses, which have extremely strong bending performance. Temperature range-70℃ to 260℃ .


Application

Suitable for the pharmaceutical industry, food industry, chemical industry.

Data sheet

PTFE Internal Helical Corrugated Hose
No. Inner diameter Outer
diameter		 Working pressure Burst pressure Minimum bending
radius
(mm±0.3) mm±0.3) (psi) (mpa) (psi) (mpa) (inch) (mm)
JCC-10004-PTFE 1/4" 6.5 10.6 60 0.4 210 1.4 0.79 20
JCC-10008-PTFE 5/16" 8 12.3 60 0.4 210 1.4 0.87 22
JCC-10010-PTFE 3/8" 10 15 60 0.4 210 1.4 1.02 26
JCC-10013-PTFE 1/2" 13 17.9 60 0.4 210 1.4 1.02 26
JCC-10016-PTFE 5/8" 16 21.9 45 0.3 180 1.2 1.26 32
JCC-10019-PTFE 3/4" 19 26.4 45 0.3 180 1.2 2.17 55
JCC-10025-PTFE 1" 25 35 45 0.3 150 1 3.15 80
JCC-10032-PTFE 1-1/4" 32 39 38 0.3 135 0.9 3.94 100
JCC-10038-PTFE 1-1/2" 38 45 38 0.3 135 0.9 3.94 100
JCC-10050-PTFE 2" 50 59.5 30 0.2 120 0.8 4.92 125
